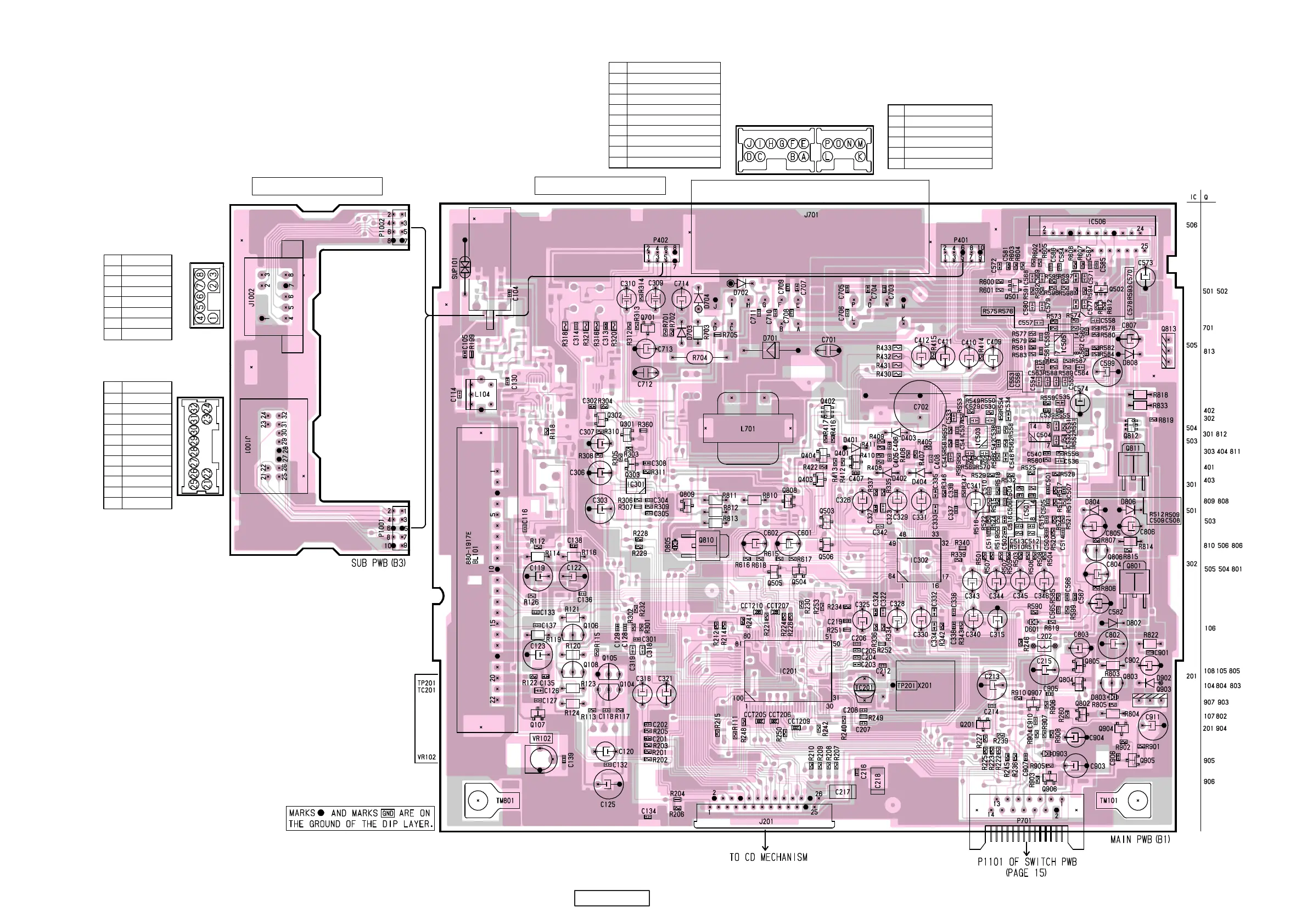

Main PWB(B1) & Sub PWB(B3) section
- 13 -
PP-2515L
PRINTED WIRING BOARD
ANTENNA
1 NAVI-GND
2 NC
3 NC
4 NAVI-ON
5 NAVI-IN(-)
6 NAVI-IN(+)
7 NC
8 NC
21 A/C L(+)
22 A/C R(+)
23 NDS-TX
24 NC
25 A/C L(-)
26 A/C R(-)
27 GND
28 GND
29 NC
30 NDS-REQ
31 NDS-RX
32 NC
A FRONT LEFT SP(+)
B FRONT RIGHT SP(+)
C ILLUMINATION(+)
D ACC
E FRONT LEFT SP(-)
F FRONT RIGHT SP(-)
G ANT-ON SIGNAL
H BACK UP
I ILLUMINATION(-)
J GND
K NC
L REAR RIGHT SP(+)
M GND
N REAR LEFT SP(-)
O REAR LEFT SP(+)
P REAR RIGHT SP(-)
VIEW AT PARTS SIDE
VIEW AT PARTS SIDE
