English
on Bridge Mode.
XC2510/XC2410/XC2110
13

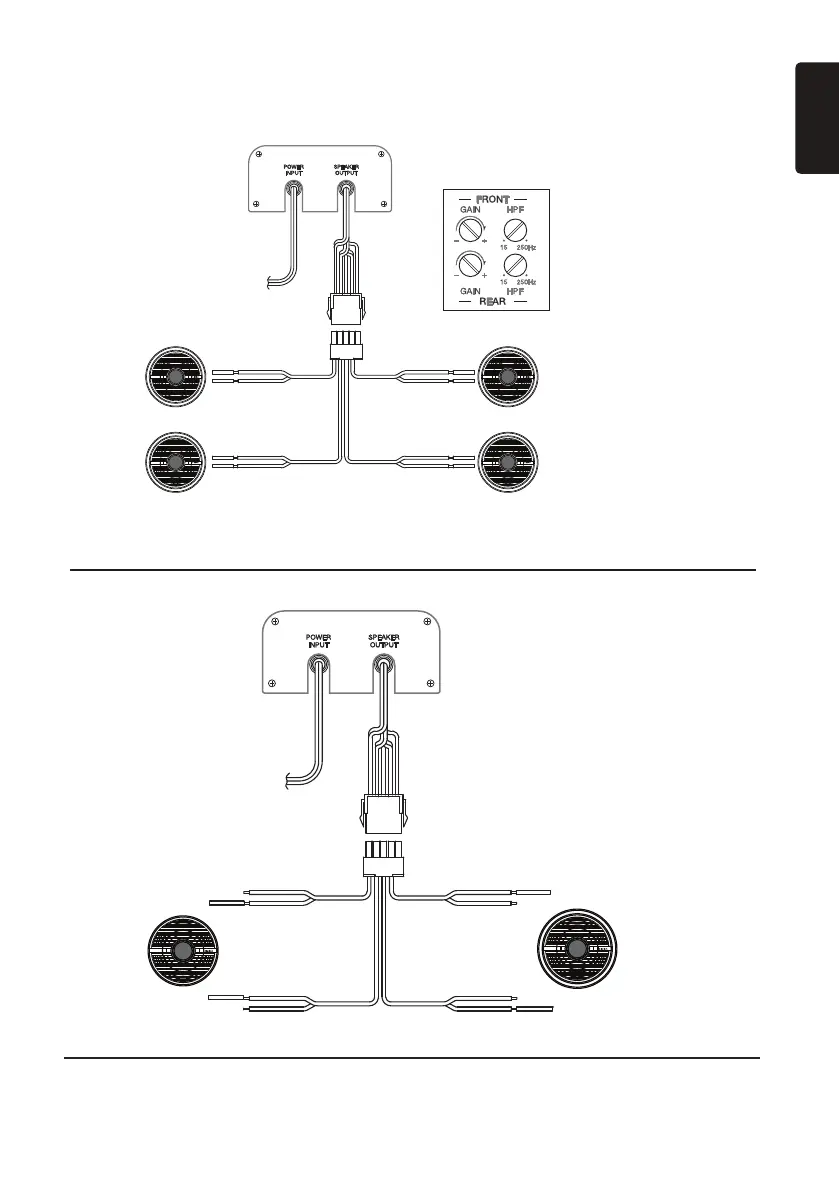

Four-channel stereo system
In this application, the XC2410 is used as a four-channel amplifier to
drive four full-range speakers in stereo.
CH1 Front Left CH4 Rear Right
CH3 Rear Left
White/Black
White
Purple/Black
Purple
Green/Black
Green
Gray/Black
Gray
CH2 Front Right
Bridged #1
White
Purple/Black
(+) Green
Gray/Black
//
//
\\
\\
Bridged #2
Each bridged channel of the XC2410 can
drive one (1) full-range 4-ohm speaker.
(+)
(
-
)
(
-
)
Bridged Power Output
Refer to the Specifications in Section 8 (Pg. 17) of the manual for additional information
Bridged Mode
In this application, the XC2410 can be wired
for Bridge Mode
To Next Page
