10 XR2220/XR2420/XR2120
Applications
The XR2120 car audio ampifier can be used in a variety of system applications.

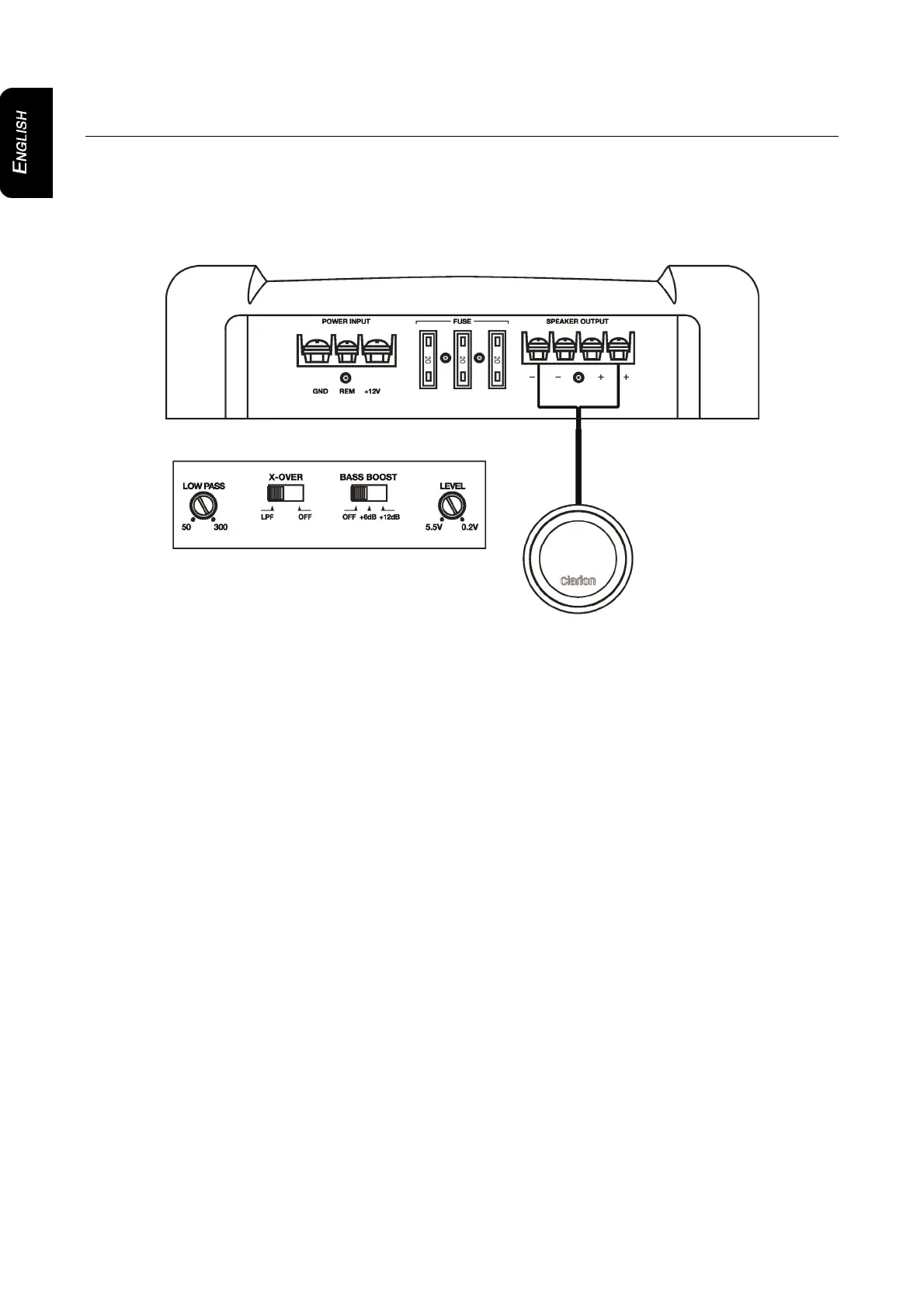

Mono subwoofer system
This application shows the amplifier in mono operation to drive a subwoofer.
Set X-Over mode to LPF and adjust the frequency to the subwoofer specifications.
Subwoofer
