English
XR2220/XR2420/XR2120 11
Applications
The XR2120 car audio amplifier can be used in a variety of system applications.

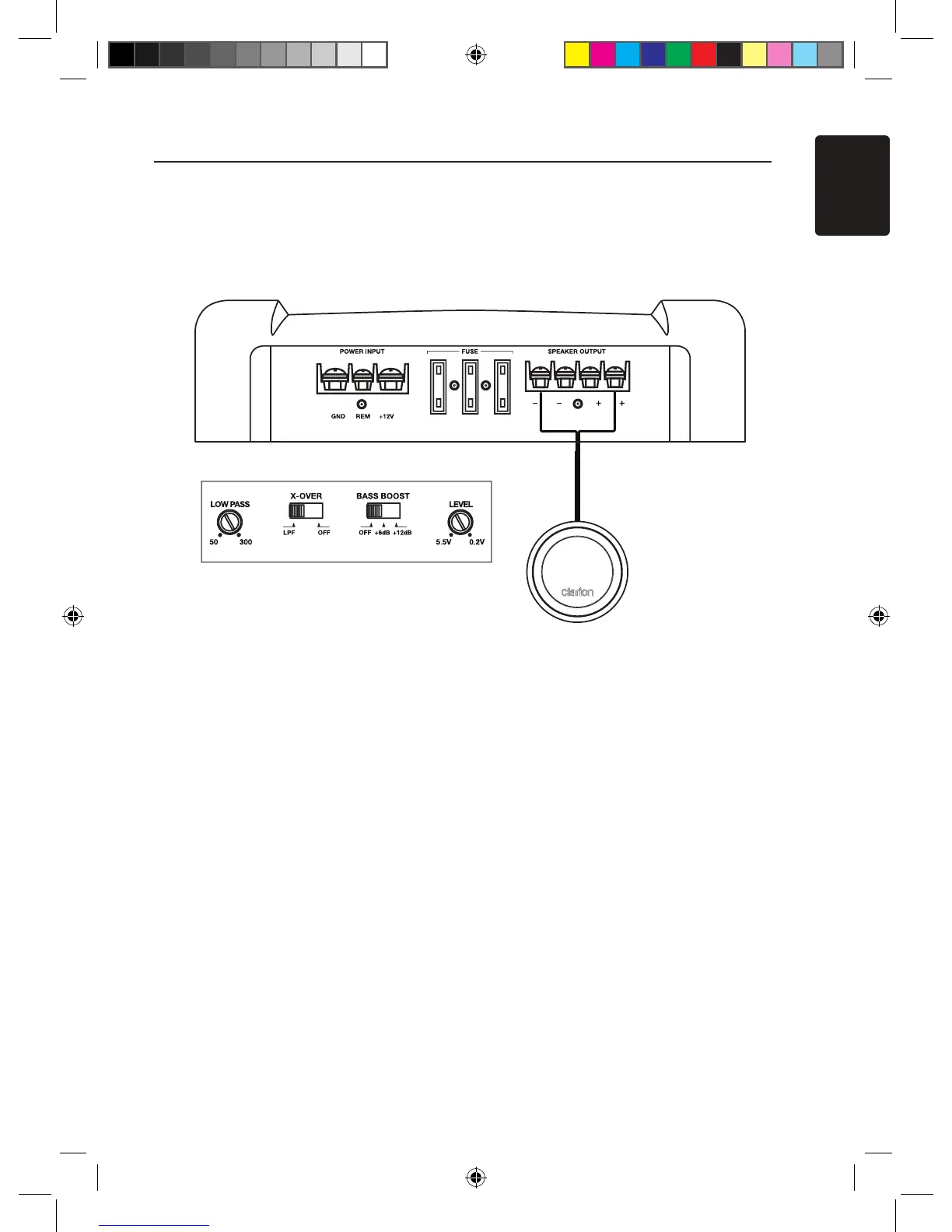

Mono subwoofer system
This application shows the amplifier in mono operation to drive a subwoofer.
Set X-Over mode to LPF and adjust the frequency to the subwoofer specifications.
20
20
20
Subwoofer
XR manual.indd 11 3/20/2012 11:07:46 AM
