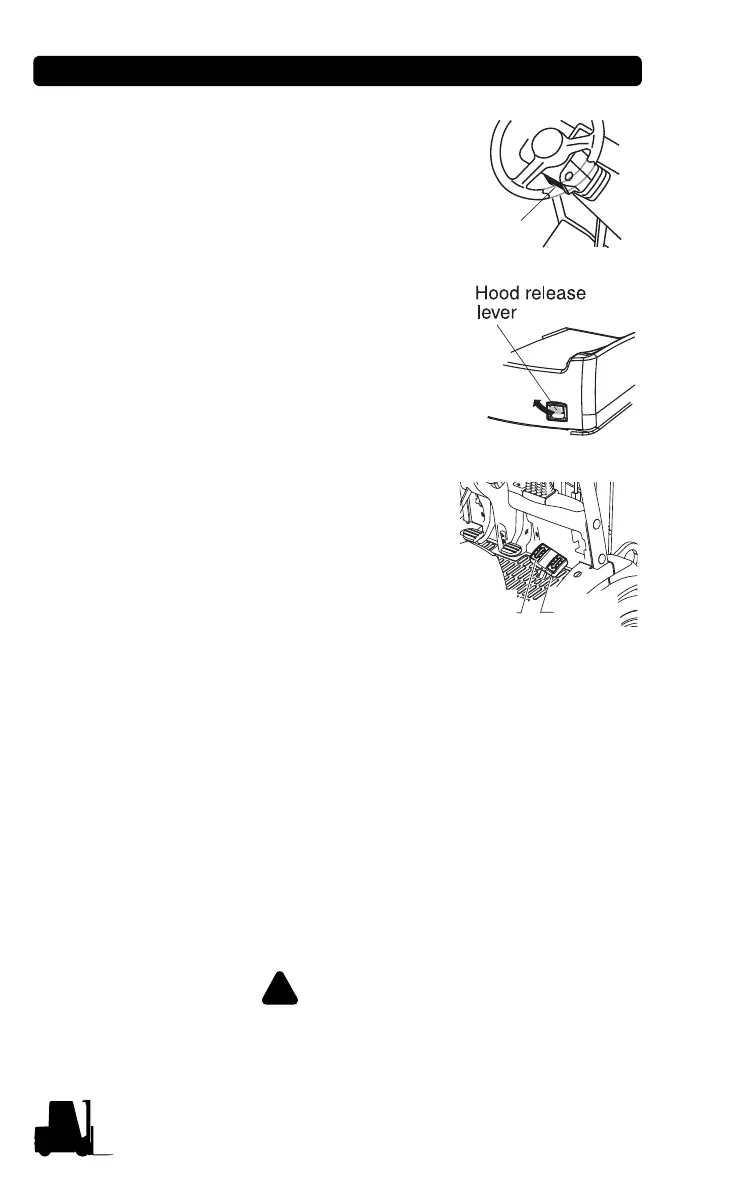

3-24 Operator Controls
Steering Column Pylon
The steering wheel can be tilted forwards and
backwards in small discrete movements.
Push and hold pylon lock, move the wheel to
the desired position and release lock.
Hood open
The hood release lever is located on the left
side of hood. (C45-55s)
Pull the lever to release the catch.
Unitrol Pedal(Optional)
With the CLARK Unitrol, the directional control
lever is no longer located on the steering
pylon. The direction of travel and speed of
truck is determined by the Unitrol pedal.
• Forward : To select and move the truck in
the forward direction you must push down
on the(FWD arrow) left side of the Unitrol
pedal. The further the pedal is depressed
the faster the lift truck will go in forward.
• Reverse : To select and move the truck in the reverse direction you
must push down on the(REV arrow) right side of the Unitrol pedal. The
further the pedal is depressed the faster the lift truck will go in reverse.
• Neutral : The unitrol pedal activates only FWD and REV. Neutral is
activated only when the parking brake is set.
For safety reasons, your CLARK forklift truck is fitted with
a neutral start switch. The purpose of this is to prevent the
engine from being started while the transmission is in
gear. Thus the engine may only start when the direction
control lever is in the neutral position.
If the truck will start with the direction control in either
forward or reverse, there is a problem with the neutral
start switch and it must be repaired.
(C40-55s)
