Clark GCS 30 - Page 19

Planned Maintenance and Lubrication
HR600 TRANSAXLE - BRAKE DISC WEAR CLEARANCE CHECK
The purpose of this check is to determine the "worn" thickness of the inner
(friction) brake discs. The remaining thickness of the inner plates is readily
determined by measuring the space (clearance) between two steel outer
discs. The minimum allowab'e "worn" thickness of the inner friction discs
is [2,6 mm] 0.104 inch. Measurable wear of the steel outer discs is normally
not expected. The brakes must be fully applied during this check to make
sure that all of the operating running clearance is removed.

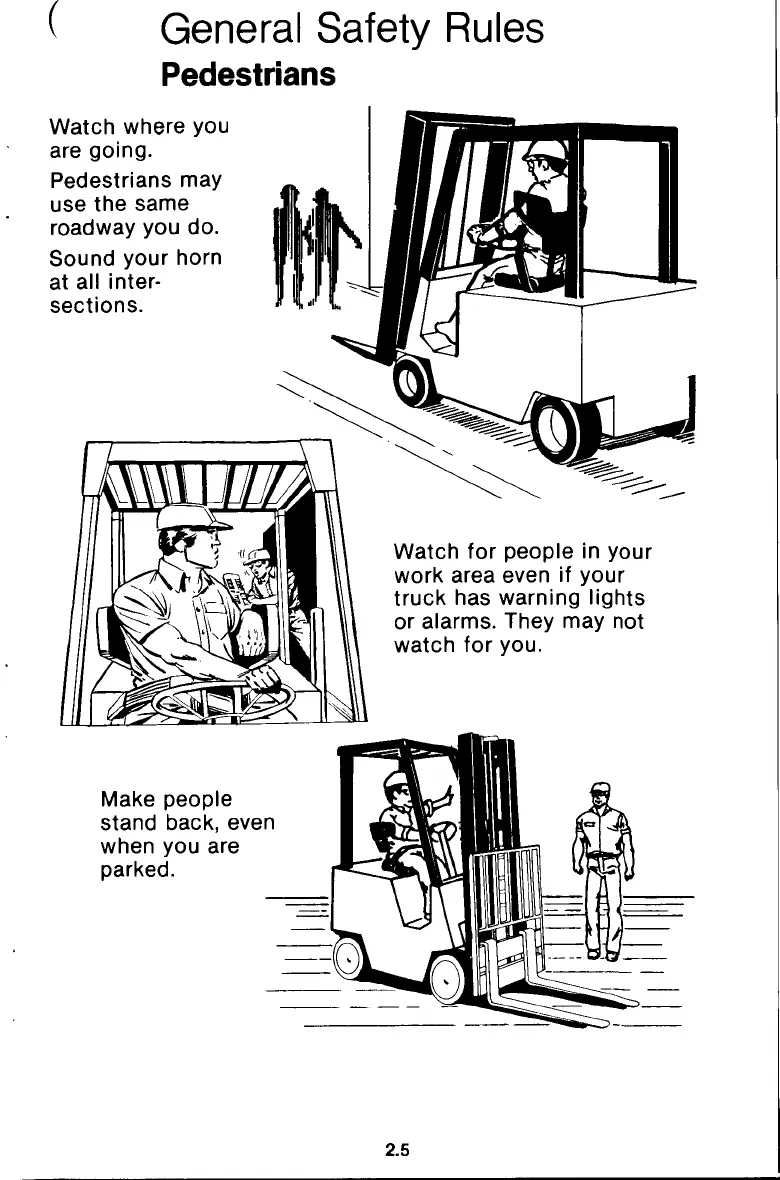

General Safety Rules
Pedestrians
Watch where you
are going.
Pedestrians may
use the same
roadway you do.
Sound your horn
at all inter-
sections.
Please refer to the procedure described
previously in "Access To The Drive
Axle".
A WARNING
PUT POSTS UNDER THE UPRIGHT AND
CARRIAGE AS SHOWN IN FIGURE 84M255
TO KEEP IT FROM FALLING AND
CAUSING PERSONAL INJURY.
3. Remove the brake inspection plugs
(4) from top of drive axle housing.
24984
Watch for people in your
work area even if your
truck has warning lights
or alarms. They may not
watch for you.
4. Apply parking brake or push down on
the brake pedal and maintain [445N]
100 Ibf. force on the pedal while
checking the brake discs.
Make people
stand back, even
when you are
parked.
84M244
8.16
2.5
