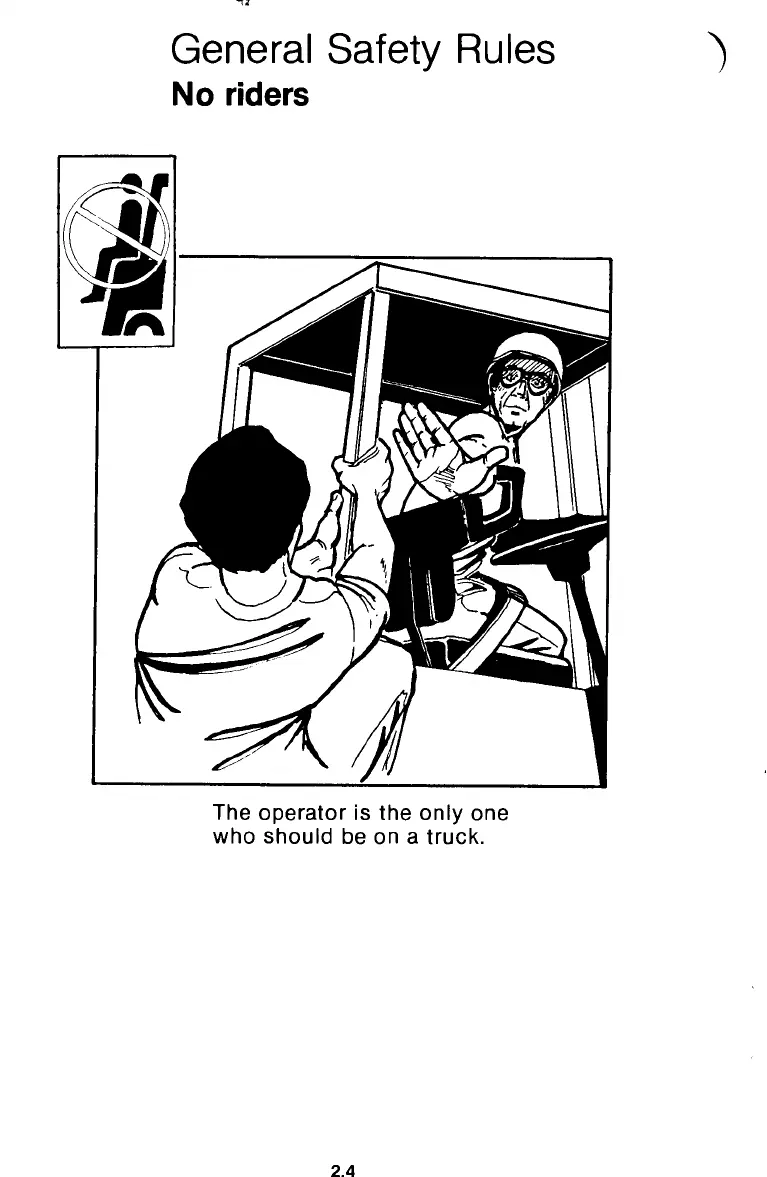

General Safety Rules
No riders
The operator is the only one
who should be on a truck.
Planned Maintenance and Lubrication
5. Brake disc gauge (6) dimensions are
shown by Figure 20716.
T
[25,4]
1.0
1
£- [152] 6.0 — j
LWJ
0.25
1
1
1 [2,6] 0.104 -j
^ ' 1
Fig. 20716
6. Insert the gauge into the axle through
the brake inspection plug opening (5).
Try to put the brake disc clearance
gauge (6) between two steel discs
(8), Figure 24982. Minimum disc clear-
ance is [2,6 mm] 0.104 inch.
Fig. 21977
7. The gauge (6) should go between the
outer discs (8). If it does not, the
brake inner (friction) discs (7) are
worn and require replacement. Refer
to Overhaul Manual OH-522, GROUP
20, for drive axle overhaul.
Fig. 24982
2.4
8.17
