Clark GCS 30 - Grades, ramps, slopes and inclines

General Safety Rules

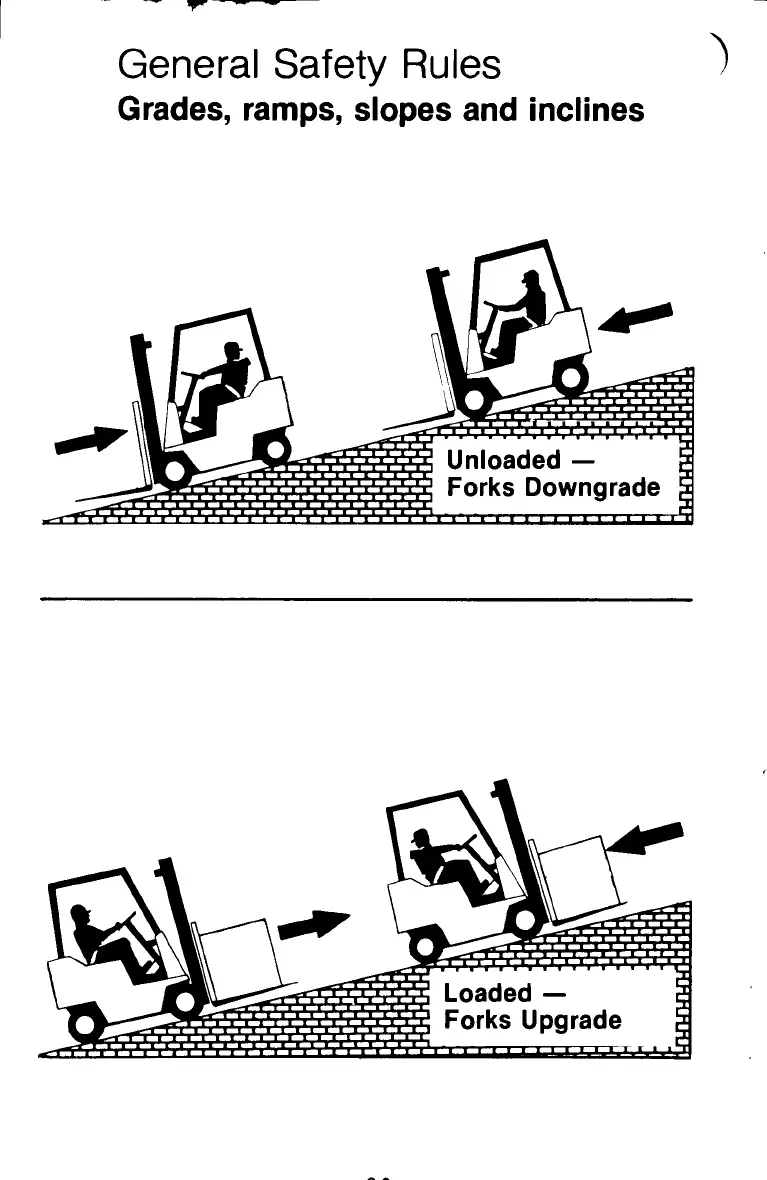

Grades, ramps, slopes and inclines
Unloaded —
Forks Downgrade
—"" I ^TTl'l
X'i'X'i Loaded —
fflrfl Forks Upgrade
Planned Maintenance and Lubrication
Transaxle (Transmission) Oil
Filter Change
The transaxle oil filter is located
in a horizontal position on the top
left front (towards drive axle) side
of the transmission, and mounted
on the charging pump.
1. Remove the floorboards. You
wilJ see the transmission oil
filter near the bottom of the
steering column.
2. Remove the oil filter. Take
special care when removing
this filter to avoid the draining
onto the floor of any oil re-
maining in the filter. It is
recommended that you first
loosen the filter using a stan-
dard filter wrench. Then,
remove the filter while holding
a pad of shop cloths, or other
absorbent material, under the
open end of the filter to absorb
any excess oil that may drain
out of the filter.
84M421
3. Install a new filter. Be sure to
follow the installation instruc-
tions printed on the outside
surface of the filter.
IMPORTANT
Always Use Genuine Clark Parts.
4. Inspect and clean the trans-
axle breather (air vent), located
on the top of the converter
housing near the charging
pump.
5. Install the floorboards.
2.8
