Planned Maintenance and Lubrication
Transaxle Fluid & Filter Change
The transaxle oil must be drained from
two places (all models),
1. The drive axle drain plug, and
2. The transmission housing drain
plug, located at the lower left side
(front corner) of the transmission
case sump (below the control valve).
Place one flat drain pan of [15 L] 32
pints minimum capacity under both
drain openings, or separate drain pans
under each opening.
Remove the drain plugs.
NOTICE: Please refer to the descrip-
tion of standard and optional model
transaxle features on following pages.
Transmission Sump Oil Strainer Screen
• Remove and clean the transmis-
sion sump oil strainer screen each time
the transmission fluid is changed.
1. Remove the access cover and the
transmission sump strainer screen.
2. Use an approved cleaning solvent to
clean the screen. Dry with com-
pressed air.
A WARNING
AIR PRESSURE
HEAR EYE PROTECTION S PROTEC-
TIVE CLOTHING WHEN CLEANING
OR DRYING WITH AIR PRESSURE
REDUCE PRESSURE TO [207 kPa]
30 PSI. DEBRIS REMOVED HITH
AIR PRESSURE CAN CAUSE INJURY.
3. Inspect the screen for damage.
Replace as necessary.
4. Install the screen and cover.
24991
12171
24990
8.12

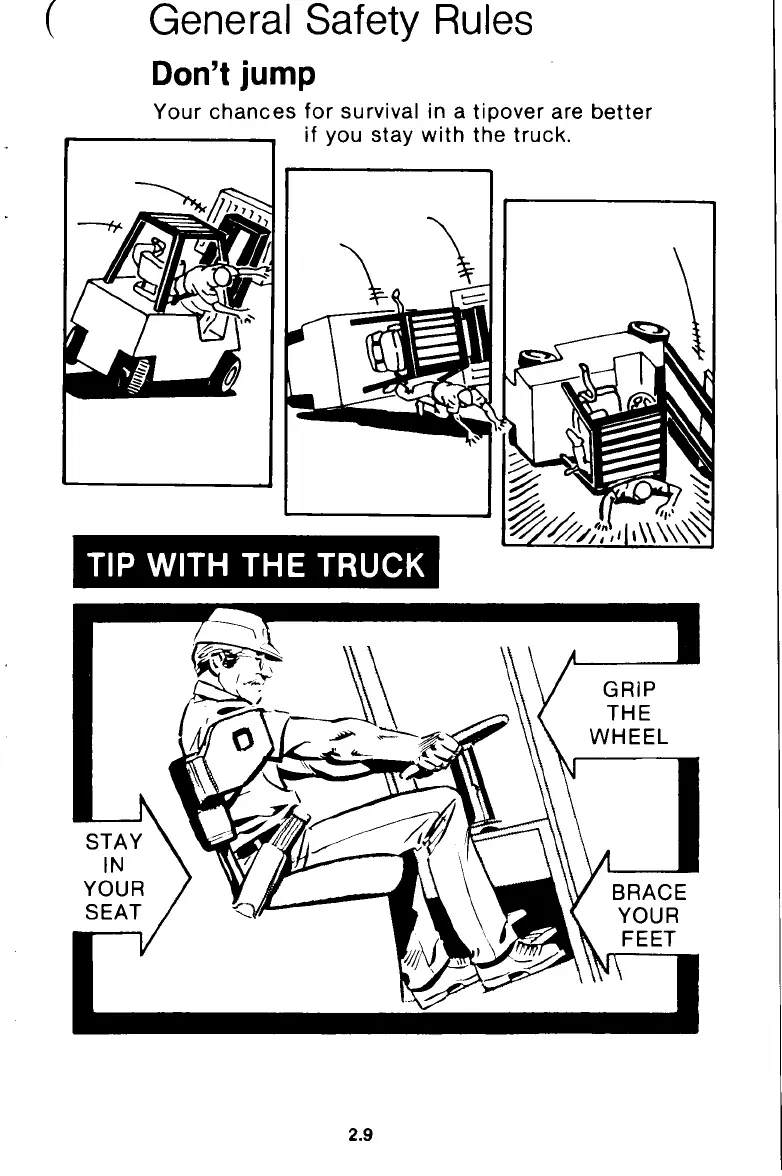

( General Safety Rules
Don't jump
Your chances for survival in a tipover are better
if you stay with the truck.
TIP WITH THE TRUCK
2.9
