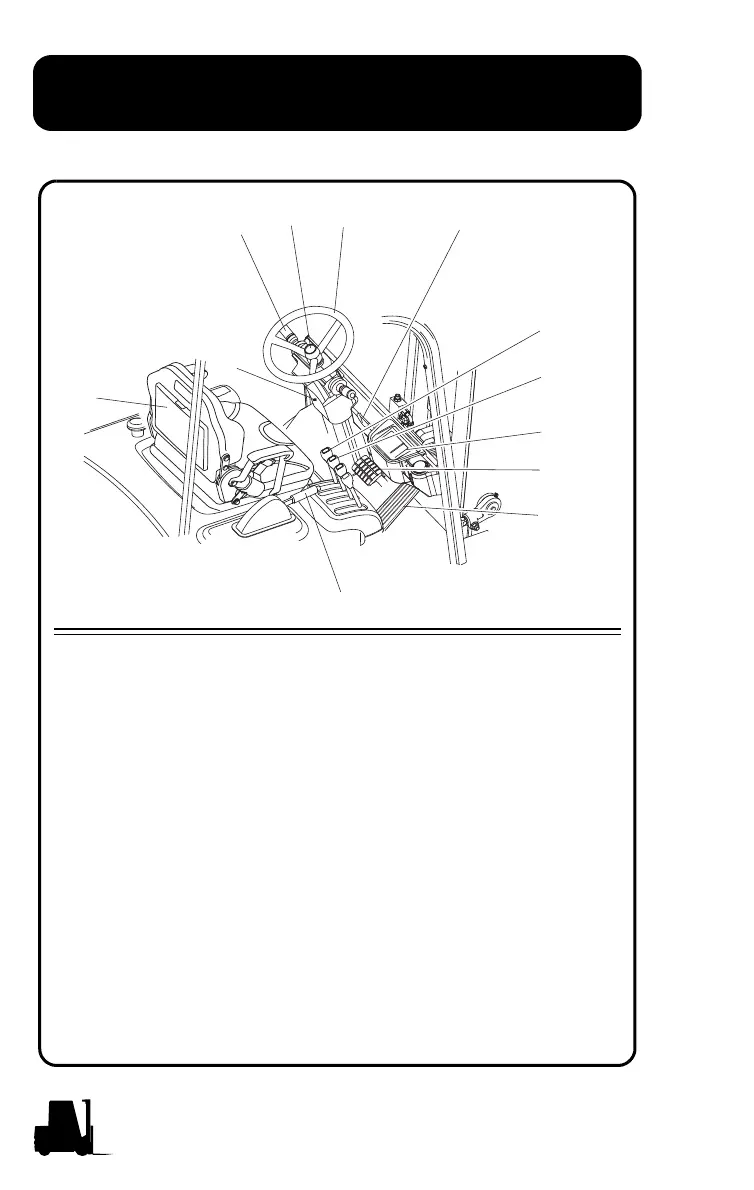

4-4 GEX/GTX Operator Compartment
GEX/GTX Operator Compartment
6
1
12
3
4
2
7
5
9
11
10
8
1. Steering Handwheel
2. Horn Button
3. Directional Control Lever
4. Pylon Release Lever
5. Brake Pedal
6. Seat
7. Key Switch
8. Parking Brake Lever
9. Lift Control Lever
10. Tilt Control Lever
11. Accelerator
12. Standard Display/Command System
13. Armrest for driver’s seat (Optional)
14. Control lever (joystick) for working
hydraulic (Optional)
15. Control lever (joystick) for auxiliary
hydraulic (Optional)
