GEX/GTX Operator Compartment 4-5
Section 4. Operator Compartment and Controls

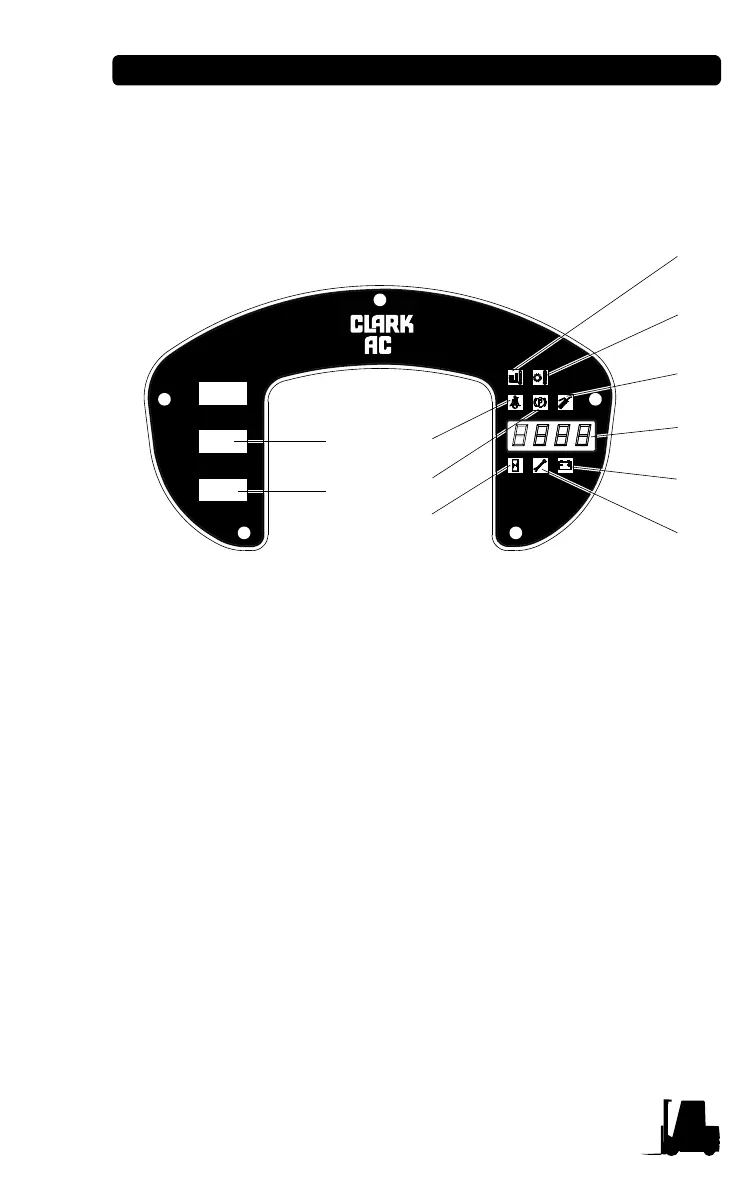

TMX Dash Display
The primary design of the Dash Display is to provide the operator
with an easily understandable, visual feedback of the status of the
truck and it's system components.
1. Pump controller &
Motor overheat warn-
ing indicator lamp
2. Drive controller & Motor
overheat warning indi-
cator lamp
3. Seat Belt Alert
4. Park Brake
5. Planned Maintenance
6. Numeric Display
7. Hour Meter
8. Service Status
9. Battery Status
10. Head light Switches
11. Speed change switch
(Optional)
