Please note that the details and specifications contained herein are correct at the time of going to
print. However CLARKE International reserve the right to change specifications at any time without
prior notice. Always consult the machines data bracket
Please read these instructions carefully before operating the tool
Thank you for purchasing this
CLARKE
10 portable thicknesser.
Before using the device, please read this manual thoroughly and carefully follow all
instructions given. This is for your own safety and that of others around you, and is also to
help you achieve a long and trouble free service from your new tool.
CLARKE GUARANTEE
This CLARKE product is guaranteed against faulty manufacture for a period
of 12 months from the date of purchase. Please keep your receipt as proof
of purchase.
This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.
Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.
This guarantee does not affect your statutory rights.
PARTS & SERVICE TEL: 020 8988 7400
or e-mail as follows:
PARTS: Parts@clarkeinternational.com
SERVICE: Service@clarkeinternational.com
-17-
-2-

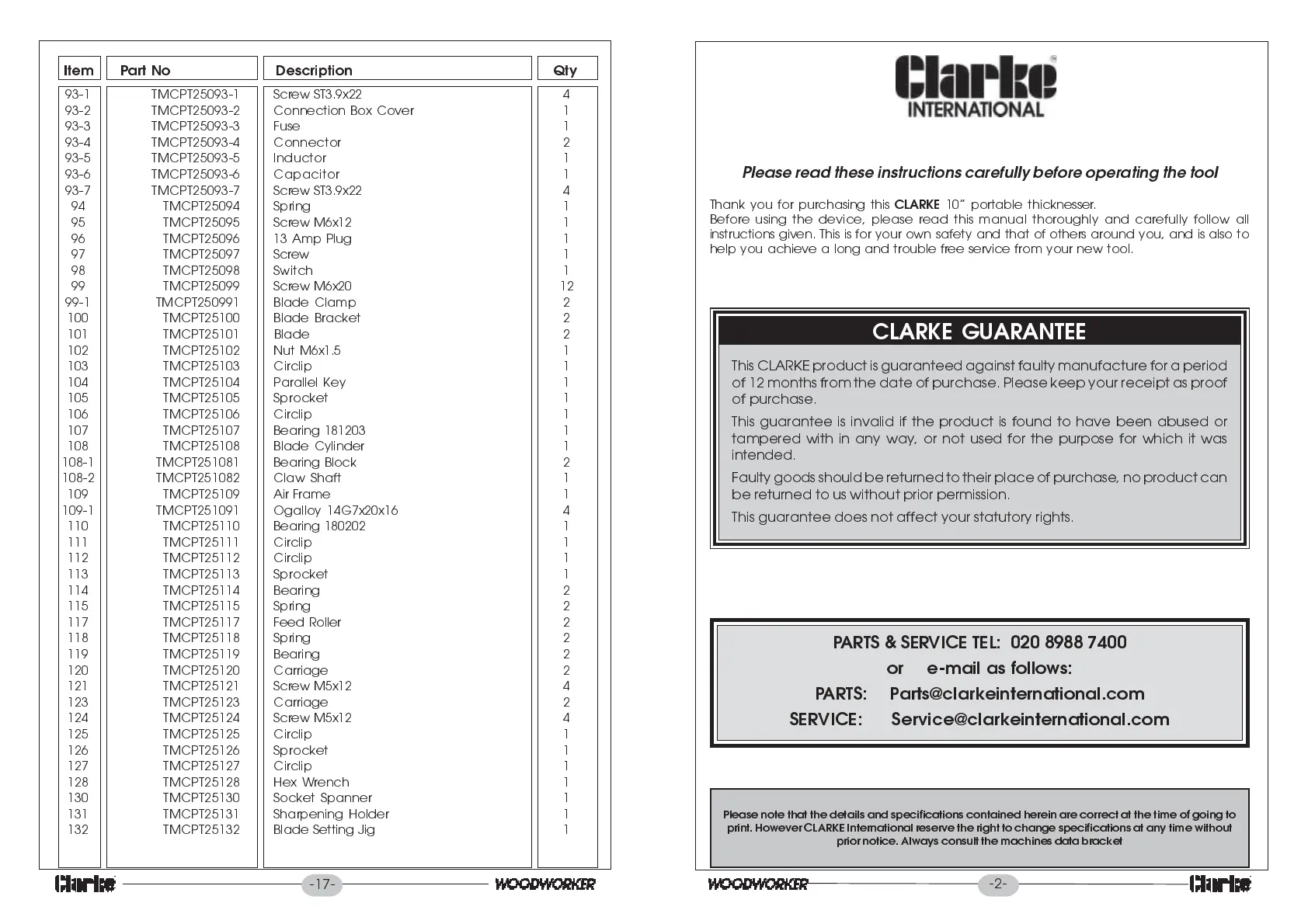

Item Part No Description Qty
93-1 TMCPT25093-1 Screw ST3.9x22 4
93-2 TMCPT25093-2 Connection Box Cover 1
93-3 TMCPT25093-3 Fuse 1
93-4 TMCPT25093-4 Connector 2
93-5 TMCPT25093-5 Inductor 1
93-6 TMCPT25093-6 Capacitor 1
93-7 TMCPT25093-7 Screw ST3.9x22 4
94 TMCPT25094 Spring 1
95 TMCPT25095 Screw M6x12 1
96 TMCPT25096 13 Amp Plug 1
97 TMCPT25097 Screw 1
98 TMCPT25098 Switch 1
99 TMCPT25099 Screw M6x20 12
99-1 TMCPT250991 Blade Clamp 2
100 TMCPT25100 Blade Bracket 2
101 TMCPT25101 Blade 2
102 TMCPT25102 Nut M6x1.5 1
103 TMCPT25103 Circlip 1
104 TMCPT25104 Parallel Key 1
105 TMCPT25105 Sprocket 1
106 TMCPT25106 Circlip 1
107 TMCPT25107 Bearing 181203 1
108 TMCPT25108 Blade Cylinder 1
108-1 TMCPT251081 Bearing Block 2
108-2 TMCPT251082 Claw Shaft 1
109 TMCPT25109 Air Frame 1
109-1 TMCPT251091 Ogalloy 14G7x20x16 4
110 TMCPT25110 Bearing 180202 1
111 TMCPT25111 Circlip 1
112 TMCPT25112 Circlip 1
113 TMCPT25113 Sprocket 1
114 TMCPT25114 Bearing 2
115 TMCPT25115 Spring 2
117 TMCPT25117 Feed Roller 2
118 TMCPT25118 Spring 2
119 TMCPT25119 Bearing 2
120 TMCPT25120 Carriage 2
121 TMCPT25121 Screw M5x12 4
123 TMCPT25123 Carriage 2
124 TMCPT25124 Screw M5x12 4
125 TMCPT25125 Circlip 1
126 TMCPT25126 Sprocket 1
127 TMCPT25127 Circlip 1
128 TMCPT25128 Hex Wrench 1
130 TMCPT25130 Socket Spanner 1
131 TMCPT25131 Sharpening Holder 1
132 TMCPT25132 Blade Setting Jig 1
