Item Part No Description Qty
-3-
-16-
44 TMCPT25044 Base 1
45 TMCPT25045 P i n 2
46 TMCPT25046 Roller Support Arm 1
49 TMCPT25049 Bearing 180200 1
50 TMCPT25050 Stator 1
51 TMCPT25051 Bearing 180201 1
52 TMCPT25052 Screw M4.8x65 2
53 TMCPT25053 Spring Washer M5 10
54 TMCPT25054 Washer M5 10
55 TMCPT25055 Bracket 1
56 TMCPT25056 Armature 1
57 TMCPT25057 Housing 1
58 TMCPT25058 Sprocket 1
59 TMCPT25059 Brush Holder 2
60 TMCPT25060 Brush 2
61 TMCPT25061 Brush Cap 2
62 TMCPT25062 End Frame 1
63 TMCPT25063 Oil Bearing 8G7x12x10 2
64 TMCPT25064 Circlip 1
65 TMCPT25065 Gear 4 1
66 TMCPT25066 Parallel Key 4x8 1
67 TMCPT25067 Spindle 1
68 TMCPT25068 Circlip 1
69 TMCPT25069 Circlip 1
70 TMCPT25070 Gear 6 1
71 TMCPT25071 Parallel Key 4x10 1
72 TMCPT25072 Circlip 1
73 TMCPT25073 Bearing 60202 1
74 TMCPT25074 Oil Bearing 8G7x10x18 1
75 TMCPT25075 Circlip 1
76 TMCPT25076 Gear 4 1
77 TMCPT25077 Parallel Key 3x6 1
78 TMCPT25078 Spindle 1
79 TMCPT25079 Circlip 1
80 TMCPT25080 Spindle 1
81 TMCPT25081 Oil Bearing 8G7x12x10 1
82 TMCPT25082 Oil Bearing 8G7x10x8 1
83 TMCPT25083 Screw M4.8x50 3
84 TMCPT25084 Gearbox 1
85 TMCPT25085 Switch Cover 1
86 TMCPT25086 Bearing 1
87 TMCPT25087 Housing Cover 1
88 TMCPT25088 Sprocket 1
89 TMCPT25089 Circlip 1
90 TMCPT25090 Capacitor 1
91 TMCPT25091 Screw ST1.9x12 4
92 TMCPT25092 Cord Grip 1
93 TMCPT25093 Cable 1

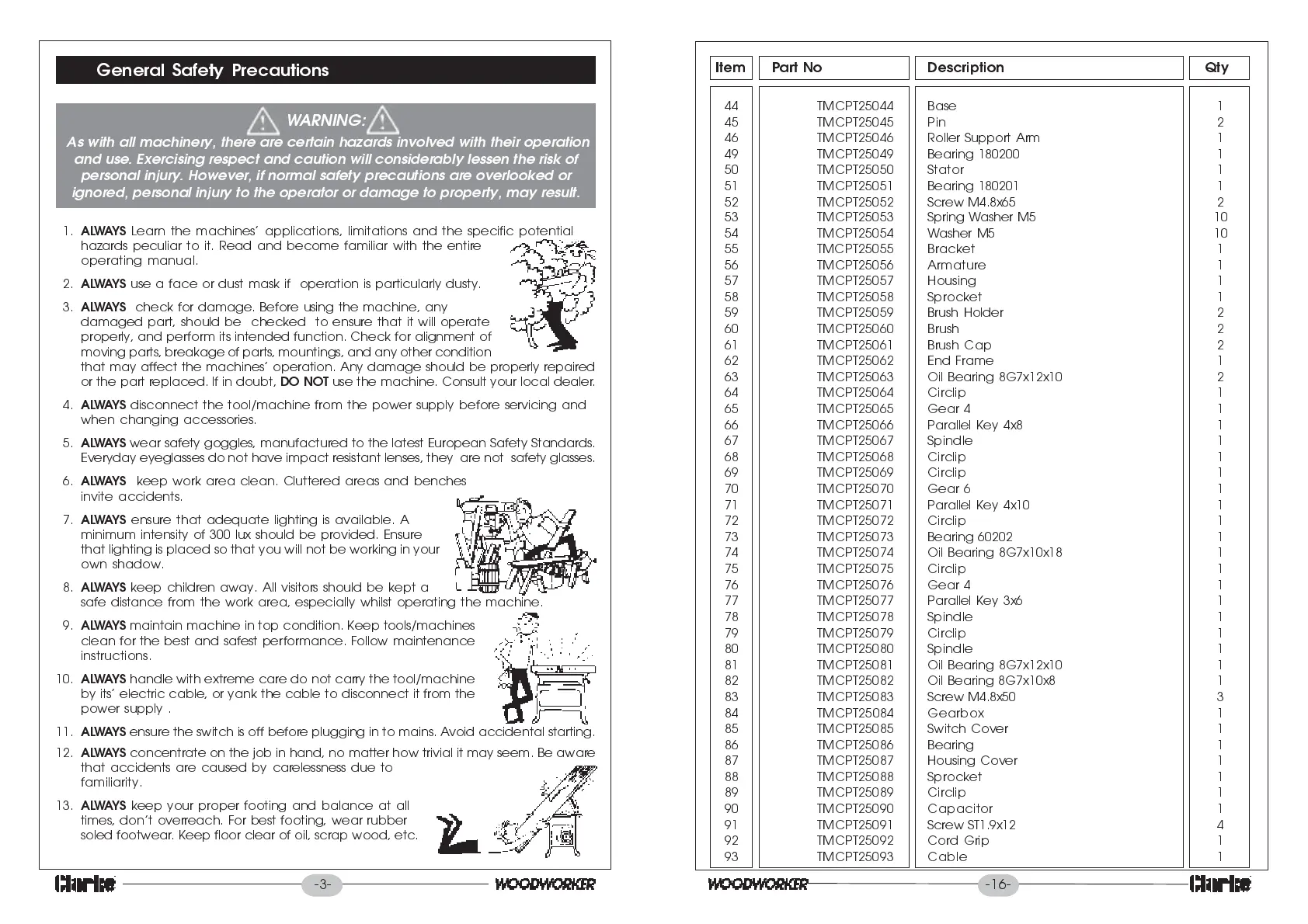

General Safety Precautions
WARNING:
As with all machinery, there are certain hazards involved with their operation
and use. Exercising respect and caution will considerably lessen the risk of
personal injury. However, if normal safety precautions are overlooked or
ignored, personal injury to the operator or damage to property, may result.
1.
ALWAYS
Learn the machines applications, limitations and the specific potential
hazards peculiar to it. Read and become familiar with the entire
operating manual.
2.
ALWAYS
use a face or dust mask if operation is particularly dusty.
3.
ALWAYS
check for damage. Before using the machine, any
damaged part, should be checked to ensure that it will operate
properly, and perform its intended function. Check for alignment of
moving parts, breakage of parts, mountings, and any other condition
that may affect the machines operation. Any damage should be properly repaired
or the part replaced. If in doubt,
DO NOT
use the machine. Consult your local dealer.
4.
ALWAYS
disconnect the tool/machine from the power supply before servicing and
when changing accessories.
5.
ALWAYS
wear safety goggles, manufactured to the latest European Safety Standards.
Everyday eyeglasses do not have impact resistant lenses, they are not safety glasses.
6.
AL WAYS
keep work area clean. Cluttered areas and benches
invite accidents.
7.
ALWAYS
ensure that adequate lighting is available. A
minimum intensity of 300 lux should be provided. Ensure
that lighting is placed so that you will not be working in your
own shadow.
8.
ALWAYS
keep children away. All visitors should be kept a
safe distance from the work area, especially whilst operating the machine.
9.
ALWAYS
maintain machine in top condition. Keep tools/machines
clean for the best and safest performance. Follow maintenance
instructions.
10.
ALWAYS
handle with extreme care do not carry the tool/machine
by its electric cable, or yank the cable to disconnect it from the
power supply .
11.
ALWAYS
ensure the switch is off before plugging in to mains. Avoid accidental starting.
12.
ALWAYS
concentrate on the job in hand, no matter how trivial it may seem. Be aware
that accidents are caused by carelessness due to
familiarity.
13.
ALWAYS
keep your proper footing and balance at all
times, dont overreach. For best footing, wear rubber
soled footwear. Keep floor clear of oil, scrap wood, etc.
To Next Page
