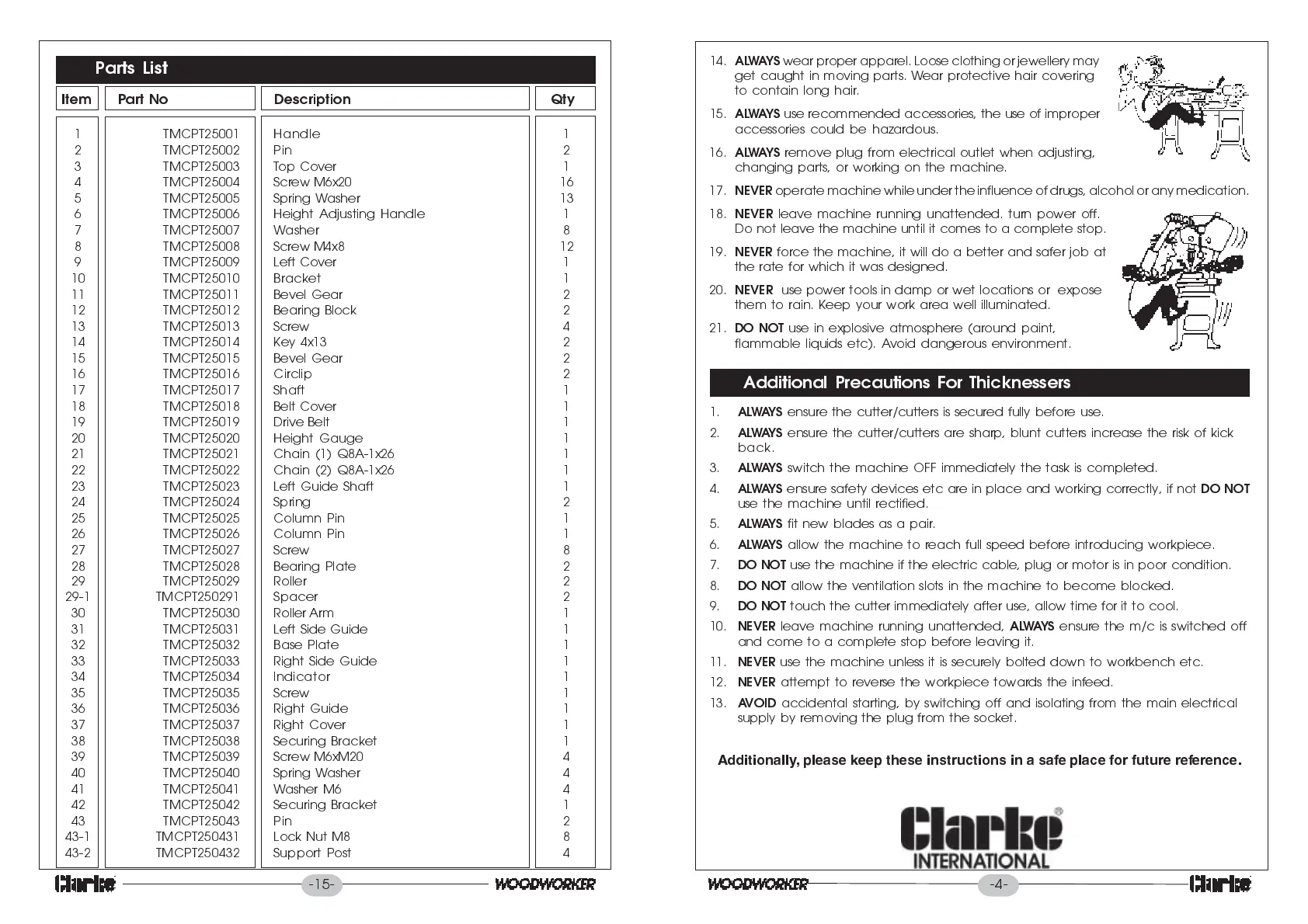

Item Part No Description Qty
Parts List
1 TMCPT25001 Ha n dle 1
2 TMCPT25002 Pi n 2
3 TMCPT25003 Top Cover 1
4 TMCPT25004 Screw M6x20 16
5 TMCPT25005 Spring W asher 13
6 TMCPT25006 Height Adjusting Handle 1
7 TMCPT25007 Washer 8
8 TMCPT25008 Screw M4x8 12
9 TMCPT25009 Left Cover 1
10 TMCPT25010 Bracket 1
11 TMCPT25011 Bevel Gear 2
12 TMCPT25012 Bearing Block 2
13 TMCPT25013 Screw 4
14 TMCPT25014 Key 4x13 2
15 TMCPT25015 Bevel Gear 2
16 TMCPT25016 Circlip 2
17 TMCPT25017 Shaft 1
18 TMCPT25018 Belt Cover 1
19 TMCPT25019 Drive Belt 1
20 TMCPT25020 Height Gauge 1
21 TMCPT25021 Chain (1) Q8A-1x26 1
22 TMCPT25022 Chain (2) Q8A-1x26 1
23 TMCPT25023 Left Guide Shaft 1
24 TMCPT25024 Spring 2
25 TMCPT25025 Column Pin 1
26 TMCPT25026 Column Pin 1
27 TMCPT25027 Screw 8
28 TMCPT25028 Bearing Plate 2
29 TMCPT25029 Roller 2
29-1 TMCPT250291 Spacer 2
30 TMCPT25030 Roller Arm 1
31 TMCPT25031 Left Side Guide 1
32 TMCPT25032 Base Plate 1
33 TMCPT25033 Right Side Guide 1
34 TMCPT25034 Indicator 1
35 TMCPT25035 Screw 1
36 TMCPT25036 Right Guide 1
37 TMCPT25037 Right Cover 1
38 TMCPT25038 Securing Bracket 1
39 TMCPT25039 Screw M6xM20 4
40 TMCPT25040 Spring W asher 4
41 TMCPT25041 Washer M6 4
42 TMCPT25042 Securing Bracket 1
43 TMCPT25043 Pi n 2
43-1 TMCPT250431 Lock Nut M8 8
43-2 TMCPT250432 Support Post 4
-15-
-4-
14.
ALWAYS
wear proper apparel. Loose clothing or jewellery may
get caught in moving parts. Wear protective hair covering
to contain long hair.
15.
ALWAYS
use recommended accessories, the use of improper
accessories could be hazardous.
16.
ALWAYS
remove plug from electrical outlet when adjusting,
changing parts, or working on the machine.
17.
NEVER
operate machine while under the influence of drugs, alcohol or any medication.
18.
NEVER
leave machine running unattended. turn power off.
Do not leave the machine until it comes to a complete stop.
19.
NEVER
force the machine, it will do a better and safer job at
the rate for which it was designed.
20.
NEVER
use power tools in damp or wet locations or expose
them to rain. Keep your work area well illuminated.
21.
DO NOT
use in explosive atmosphere (around paint,
flammable liquids etc). Avoid dangerous environment.
Additional Precautions For Thicknessers
1.
ALWAYS
ensure the cutter/cutters is secured fully before use.
2.
ALWAYS
ensure the cutter/cutters are sharp, blunt cutters increase the risk of kick
back.
3.
ALWAYS
switch the machine OFF immediately the task is completed.
4.
ALWAYS
ensure safety devices etc are in place and working correctly, if not
DO NOT
use the machine until rectified.
5.
ALW AYS
fit new blades as a pair.
6.
ALWAYS
allow the machine to reach full speed before introducing workpiece.
7.
DO NOT
use the machine if the electric cable, plug or motor is in poor condition.
8.
DO NOT
allow the ventilation slots in the machine to become blocked.
9.
DO NOT
touch the cutter immediately after use, allow time for it to cool.
10.
NEVER
leave machine running unattended,
ALW AYS
ensure the m/c is switched off
and come to a complete stop before leaving it.
11.
NEVER
use the machine unless it is securely bolted down to workbench etc.
12.
NEVER
attempt to reverse the workpiece towards the infeed.
13.
AVOID
accidental starting, by switching off and isolating from the main electrical
supply by removing the plug from the socket.
Additionally, please keep these instructions in a safe place for future reference.
