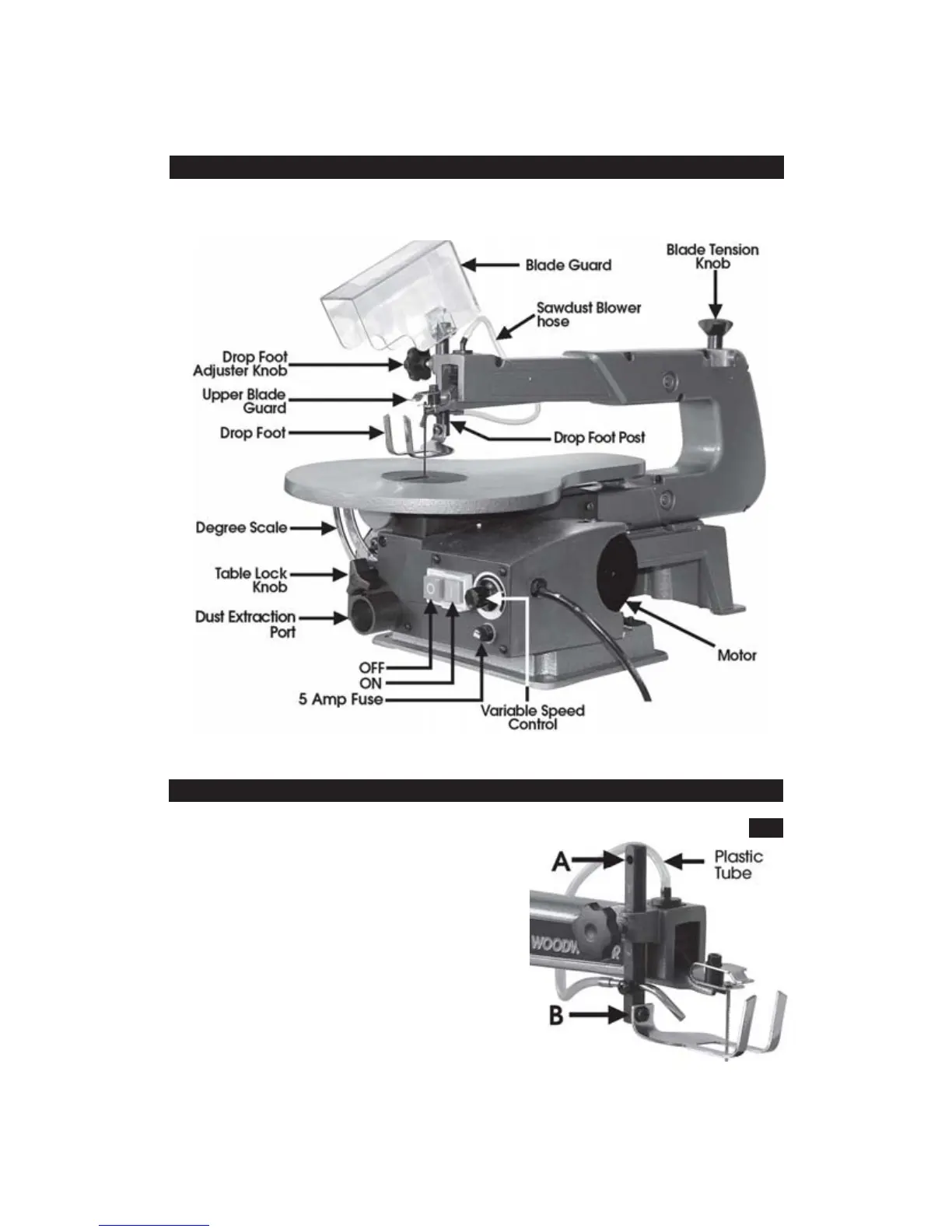

PRINCIPAL PARTS OF THE SCROLL SAW
ASSEMBLY
7
1. Should the sawdust blower hose not be fitted,
attach as shown in Fig.2
2. Line up the hole in the blade guard with the
hole at the top of the Drop Foot Post, arrowed
at ‘A’ in Fig. 2. Insert the bolt and screw on the
nut. Tighten sufficiently for the nut to be secure
with the guard capable of pivoting and
dropping under its own weight.
3. It will also be necessary to tighten the Drop Foot
securing screw, arrowed at ‘B’, Fig.2, so that the
Drop Foot lies flat/parallel with the table.
4. Check to ensure the Blade Guard is capable
of moving fully to its lowest position when the
Drop Foot is secure.
Fig. 2
