DQ6H-FMKA48, DQ6H-FMKA4G,
DQ6H-FMKA40, DQ6H-FMKA50,
DQ6H-FMKA60, DQ6H-FMKA88,
DQ6H-FMKA98, DQ6H-FMKAX8,
DQ6R-NLKA47, DQ6R-NLKA4F,
DQ6R-NLKA49, DQ6R-NLKA59,
DQ6R-NLKA87, DQ6R-NLKA97
DR8H-UFAA40, DR8H-UFAA5G,
DR8H-UFAA68, DR8H-UFAA62,
DR8H-FMAA40,
DR8H-FMKA5G, DR8H-FMKA62,
DR8H-FMKA68, DR8H-UFKA40,
DR8H-UFKA5G, DR8H-UFKA62,
DR8H-UFKA68, DR8H-APKA60
DR8H-NLAA40, DR8H-NLAA5G,
DR8H-NLAA62, DR8H-NLAA68,
DR8H-UFAA98, DR8H-UFAA92,
DR8H-UFKA98, DR8H-UFKA92
DR8H-NLKA40, DR8H-NLKA5G,
DR8H-NLKA62, DR8H-NLKA68
DS0H-FMKA60, DS0H-FMKA68,
DS0H-FMKAN0, DS0H-UFAA68,
DS0H-UFAA60, DS0H-UFAAM0,
DS0H-UFKAM0, DS0H-UFAAN0,
DS0H-UFKA60, DS0H-UFKA68,
DS0H-UFKAN0, DS0H-APKA60,
DS0H-NLAA60, DS0H-NLAA68,
DS0H-NLAAN0, DS0H-NLAA70,
DS0H-UFAA98, DS0H-UFAA92,
DS0H-UFKA98, DS0H-UFKA92
DS0H-NLKA60, DS0H-NLKA68,
DS0H-NLKAN0, DS0R-NLAAL1,
DS0R-UFAA67, DS0R-UFAA59,
DS0R-UFKA67, DS0R-UFKA59
DT2H-UFAA20, DT2H-UFAA60,
DT2H-UFAA98, DT2H-UFAA92,
DT2H-FMAA40, DT2H-FMAAX8,
DT2H-FMAAX2, DT2H-APKA90,
DT2H-FMKA40, DT2H-NLAA20,
DT2H-NLAA58, DT2H-NLAA50, DT2H-
NLAA60, DT2H-NLAA98, DT2H-
NLAA92, DT2H-UFAA48, DT2H-
UFAA40, DT2H-UFAA50, DT2H-
UFAA58,DT2H-UFAA88, DT2H-
UFAA68, DT2H-UFKA88, DT2H-
UFKA20, DT2H-UFKA50, DT2H-
UFKA58, DT2H-FMKA40, DT2H-
UFKA98, DT2H-UFKA92, DT2H-
UFKA60
Figure #2

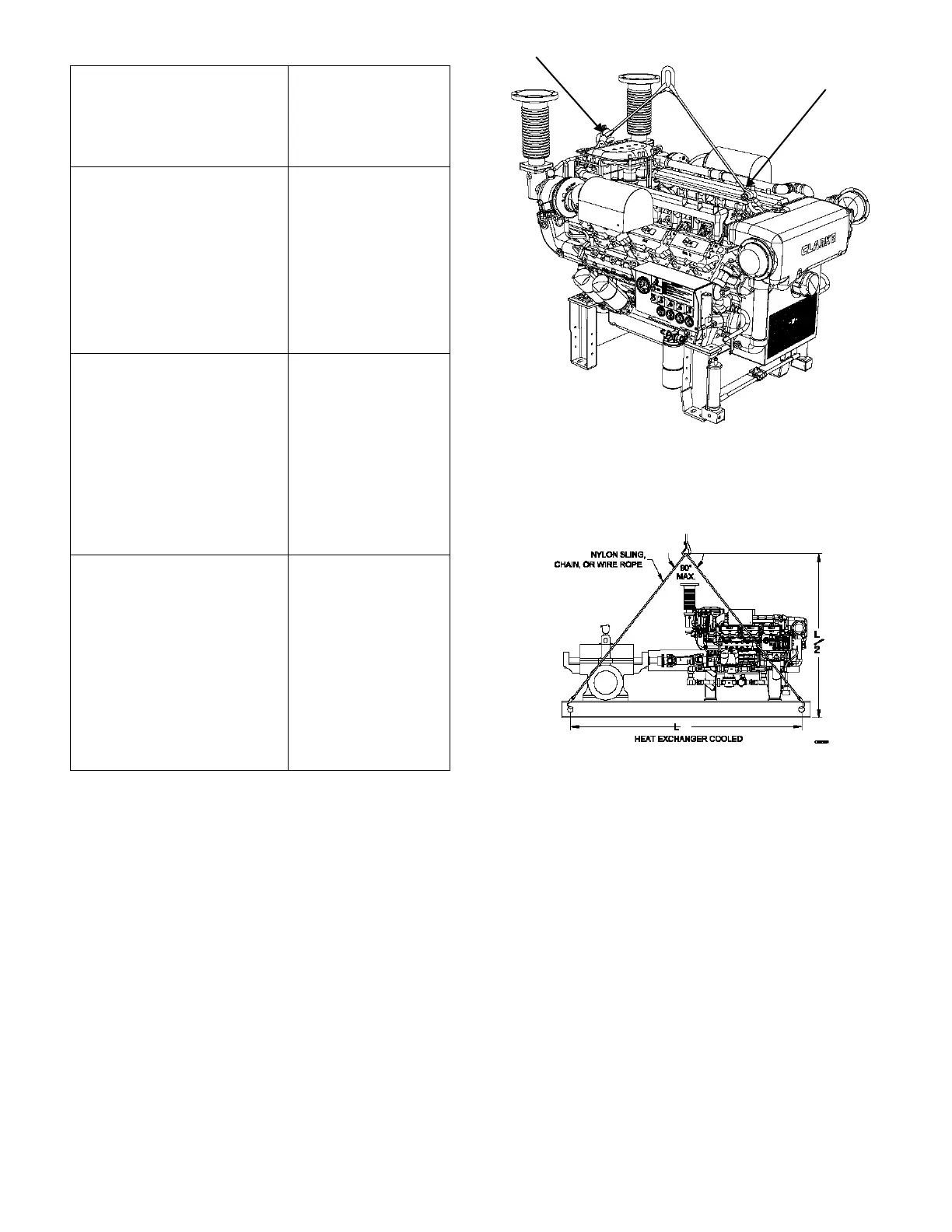

Figure #3 shows the typical lifting arrangement of a
bare engine. Note the lifting points on the engine are
for lifting the ENGINE only. Caution, when lifting,
lift point should always be over the equipment Center
of Gravity.
Figure #3
Figure #4 shows the typical lifting arrangement of a
base mounted engine and pump set when the base (or
module) is furnished with lifting holes.
Figure #4
When Clarke furnishes the base (or module) for the
engine and pump set, the combined weight of the
engine and base (or module) will be indicated on the
unit. Caution, when lifting, lift point should always
be over the equipment Center of Gravity.
Note: The engine produces a noise level exceeding
70 dB(a). When performing the weekly functional
test, it is recommended that hearing protection be
worn by operating personnel.
CLARKE UK provides the machine manufacturer
with a “Declaration of Incorporation”
for the Engine, when required, a copy of which is
enclosed in the manual. This document clearly states
the machine manufacturers’ duties and
responsibilities with respect to health and safety.
Refer to Figure #5.
