Page 17 of 49
IMPORTANT: Main pump controller selector
should be in the OFF position when starting from
engine gauge panel. Be sure to return selector on
main pump controller and engine gauge panel to
AUTOMATIC after completing manual run.

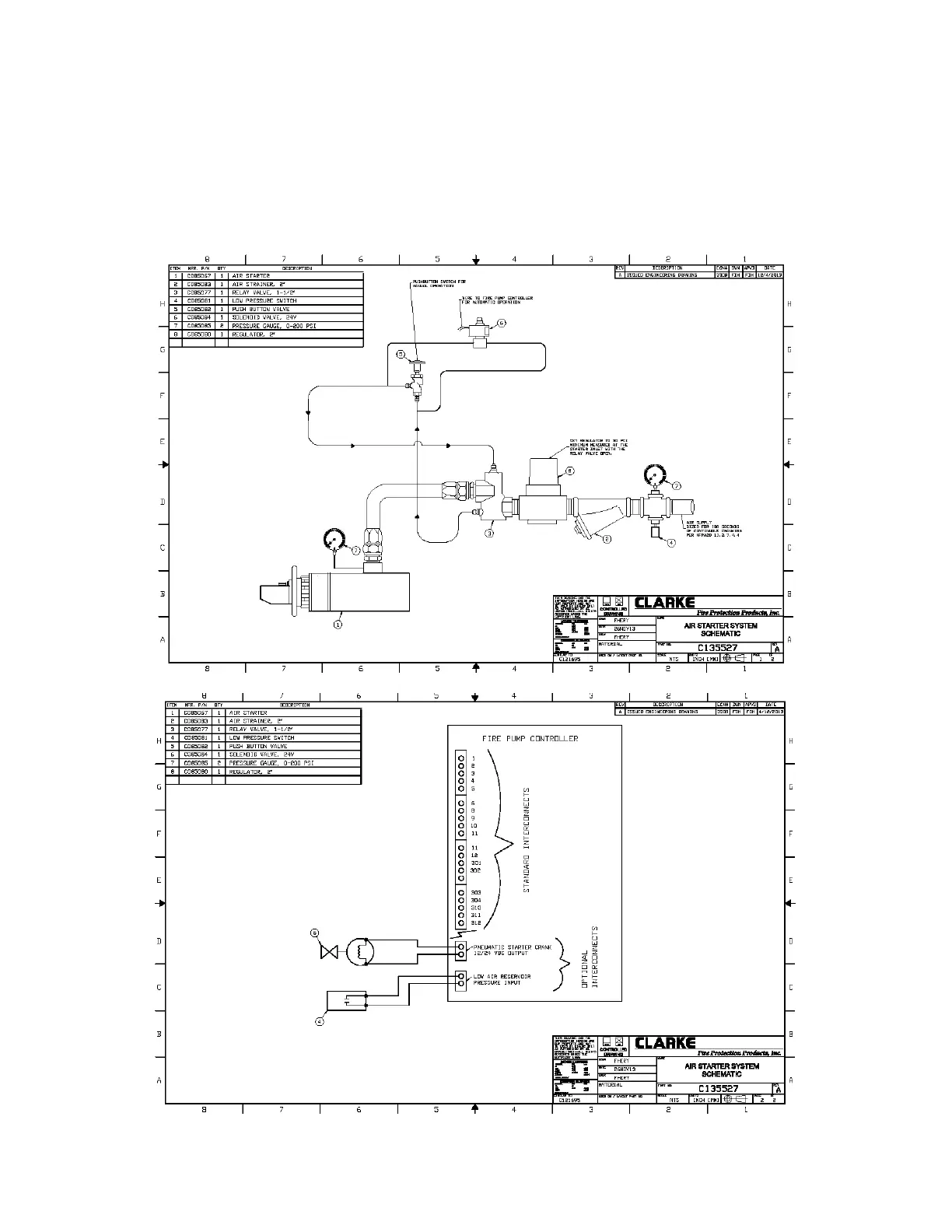

2.5.1.1 Optional Pneumatic Starting System
Some engines may be provided with an optional
pneumatic starting system to crank the engine from a
pressurized receiver tank. See figure 9A for
schematic of the pneumatic starter system and wiring
diagram for field wiring.
