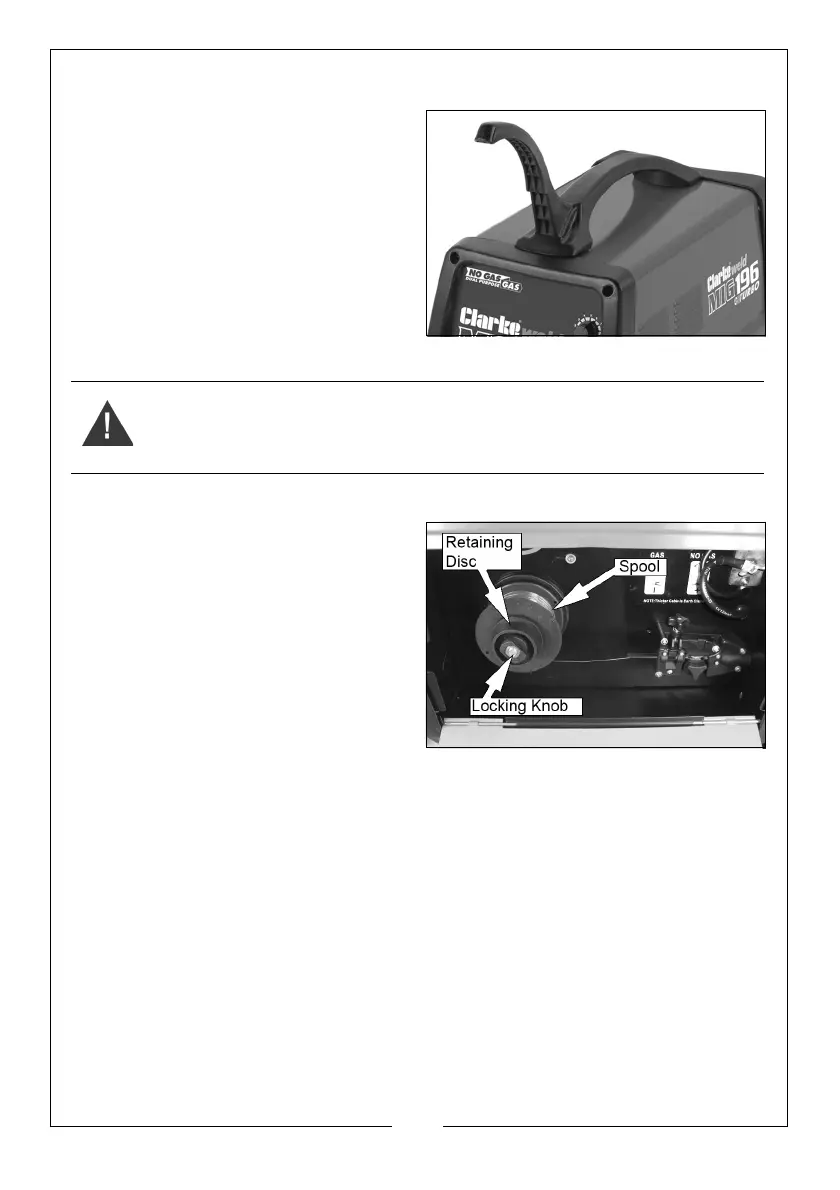

FITTING THE HANDLE
1. Fit the 2 handles together and
secure to the top of the welder
using the screws and washers
supplied.
MOUNTING THE WELDING WIRE SPOOL
NOTE: Spools of welding wire are available from your Clarke Dealer.
1. Open the side panel, by pushing
the latch down and allowing the
side panel to drop down.
2. Remove the locking knob and
retaining disc.
3. Place the spool of welding wire
(not supplied) over the spindle so
that it sits on the spring.
• Do not release the tension on
the wire as it will unravel
causing feeding problems later.
• The wire will feed off the spool anticlockwise from the bottom of the
reel.
• The spool must be fitted with the correct orientation otherwise it will
not feed correctly.
Warning: Ensure that the welder is not connected to the mains supply.
