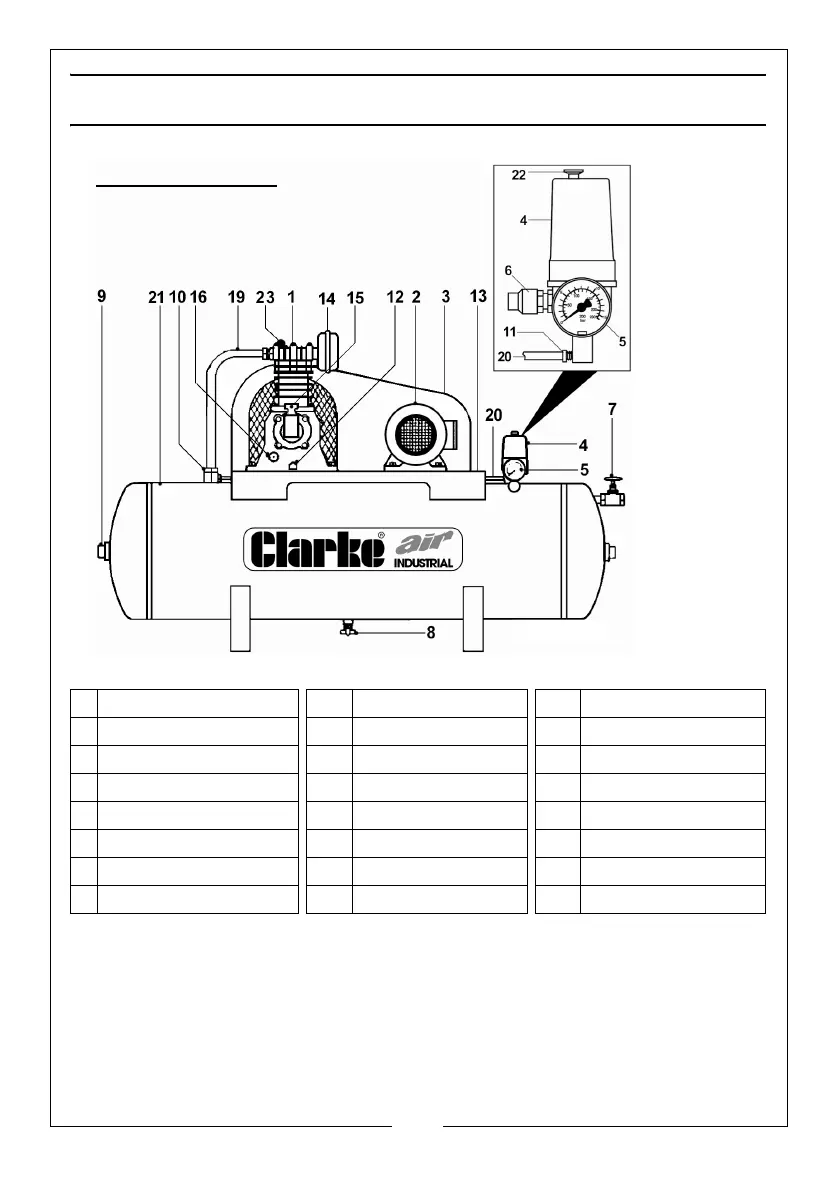

GENERAL ARRANGEMENT
NOTE: On automatic machines (10 H.P). a solenoid valve is fitted to the
delivery pipe.
NOTE: On automatic machines (10 H.P), an Auto Star Delta (ASD) starter
is fitted, ready to be mounted to a wall or panel etc. It is
IMPORTANT to note that NO ADJUSTMENTS should be made to this
component. The ASD should be connected to a 3-phase supply
by a qualified electrician.
1 Air Compressor Pump 9 Inspection Plug 17 –
2 Electric Motor (or 10 Non-Return Valve 18 –
3 Wire Guard 11 Air Bleed Valve 19 Air Delivery Pipe
4 Pressure Switch 12 Oil Drain Plug 20 Air Bleed Pipe
5 Pressure Gauge 13 Saddle 21 Air Receiver
6 Safety Valve 14 Air Intake Filter 22 On/Off switch
7 Ball Valve 15 Oil Filler/Breather 23 Auto Air Bleed
8 Drain Tap 16 Oil Level Sight Glass
Fig.2
A. STATIONARY
NB: Must be mounted on Anti Vibration Pads
Illustrative
purposes
only
