Features
These fully portable machines incorporate a variable pressure control, together with a
fan or jet spray, and may be used with or without detergent. Although these machines
were designed to operate using a mains water supply, they will also work satisfactorily
with a supply which is under positive pressure, i.e. from an elevated water tank etc.
NOTE: when using water from the mains supply, you must always comply with local
authority by-laws.
High Pressure
Hose connection
Detergent
Hose
Connection
Water Supply IN
Filter (Detergent)
Pressure
Regulator

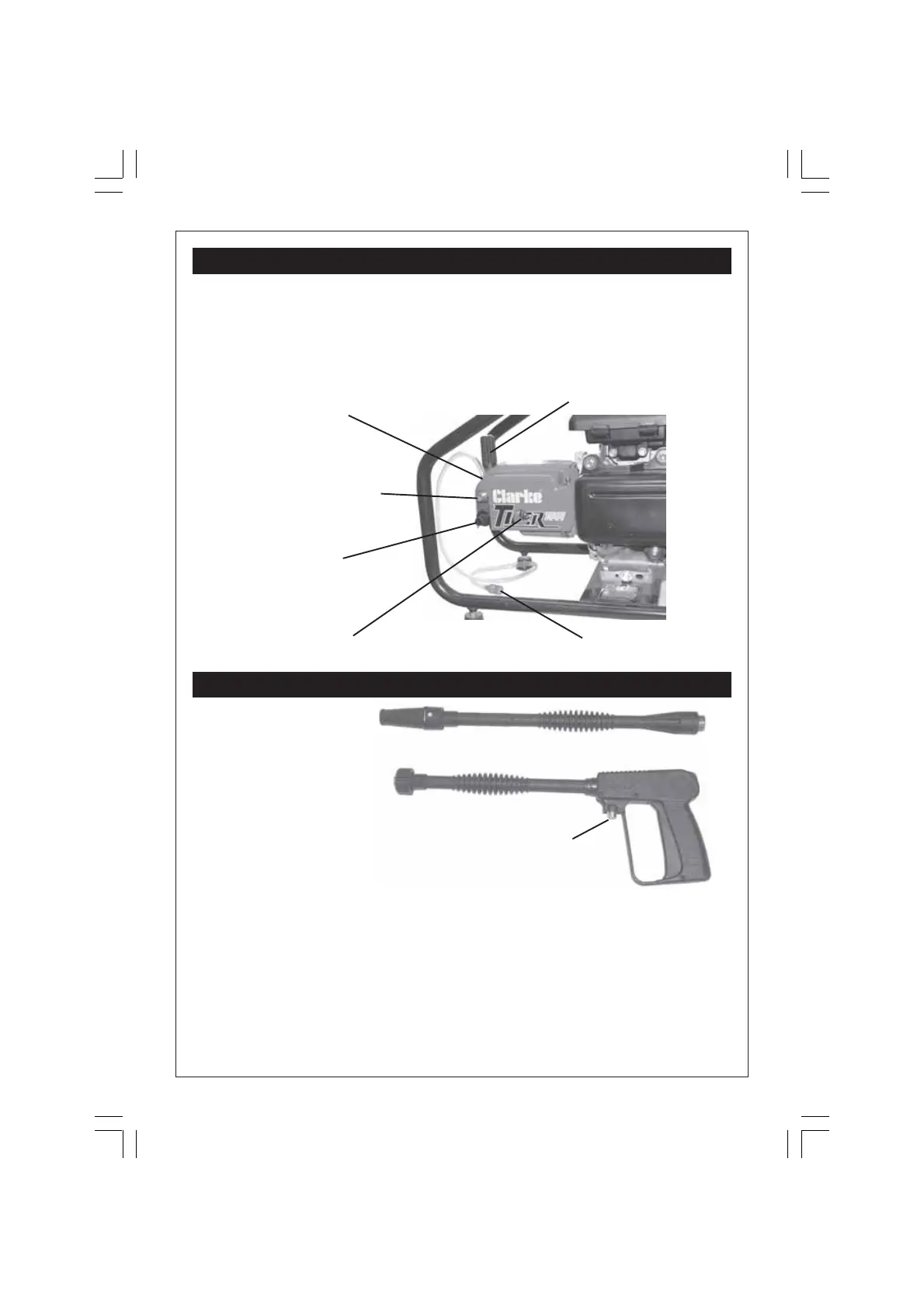

Fig. 1
Assembly
and Preparation
for use
1. Assemble the lance
by screwing section
‘B’ into section ‘A’ (Fig. 2).
2. Remove all travel
blanking plugs.
3. Connect one end of
the high pressure hose
to the lance.
4. Connect the other end to the
High pressure connection on
the pump (Fig. !).
Note: Ensure the sealing rings are in place before tightening (DO NOT Overtighten).
5. Connect one end of the hose pipe (not supplied) to the water supply.
6. Connect the other end to the Water Supply IN connection on the pump.
Note: To connect the hose to the pump, it is recommended to use a snap connector
available from any DIY, Hardware and Gardening supply store.
A good quality hose of at least ½” dia,should be used, also available from Hardware and
Gardening supply stores.
All connections should be tight to avoid leaks.
Fig. 2
Fig
‘A’
‘B’
High Pressure
Hose
Connection
Pump Oil Sight Glass
