P R E L I M I N A RY
INFLOW
RECIRCULATION BAFFLE
EFFLUENT
AERATION
(BLUE)
BACKWASH
(RED)
SLUDGE RETURN
BAFFLE
RECIRCULATION WALL OPENING
INFLOW
BAFFLE
BACKWASH MECHANISM
RECIRCULATION WALL OPENING
BAFFLE
EFFLUENT
6" (152mm) STONE OR CONCRETE PAD
W.L W.L W.L
W.L
G.L G.L
SIDE VIEW
TOP VIEW
The Fusion
®
is simple in design, yet advanced in its wastewater
treatment ability. The design has been rened over many years
of intense research and development in an effort to perfect this
superior treatment system. Fusion
®
systems are 90% - 95%
efcient at treating wastewater. This is nearly twice as effective
as a traditional septic tank, which is approximately 50% efcient.
This high degree of treatment helps to protect both your personal
property and the environment.
The Fusion
®
utilizes a combination of anaerobic (without oxygen)
and aerobic (with oxygen) biological processes to treat wastewater.
As wastewater enters the Fusion
®
, it is broken down and becomes
food for biological organisms benecial to bacteria operating
within the unit. The rst chamber serves to separate grease and
large solids from the liquid. In the second chamber, plastic media
with large surface areas are used to increase contact between
water and benecial bacteria to optimize treatment. A small linear
air blower is used to move air (oxygen) into the third chamber
for the aerobic process. The nal efuent leaving the system will
have been treated to secondary quality efuent and will average
*9 mg/L CBOD
5
and 9mg/L TSS.
* Based on NSF Standard 40 testing.
HOW A FUSION
®
SERIES TREATMENT SYSTEM WORKS
Anaerobic Chamber -
Organisms adhere to xed lm
media and digest waste
Recirculation Line
Storage
Chamber
Inlet Pipe
4” PVC
SCH 40
(DN 100)
Fiberglass
Sedimentation
Chamber -
Separates bulk
solid and grease
waste
Outlet Pipe
4” PVC
SCH 40
Aeration Chamber
Floating/Circulating
Filter Media -
“Fluidized Bed”
Invigorates aerobic
bacteria
Sludge Return Line

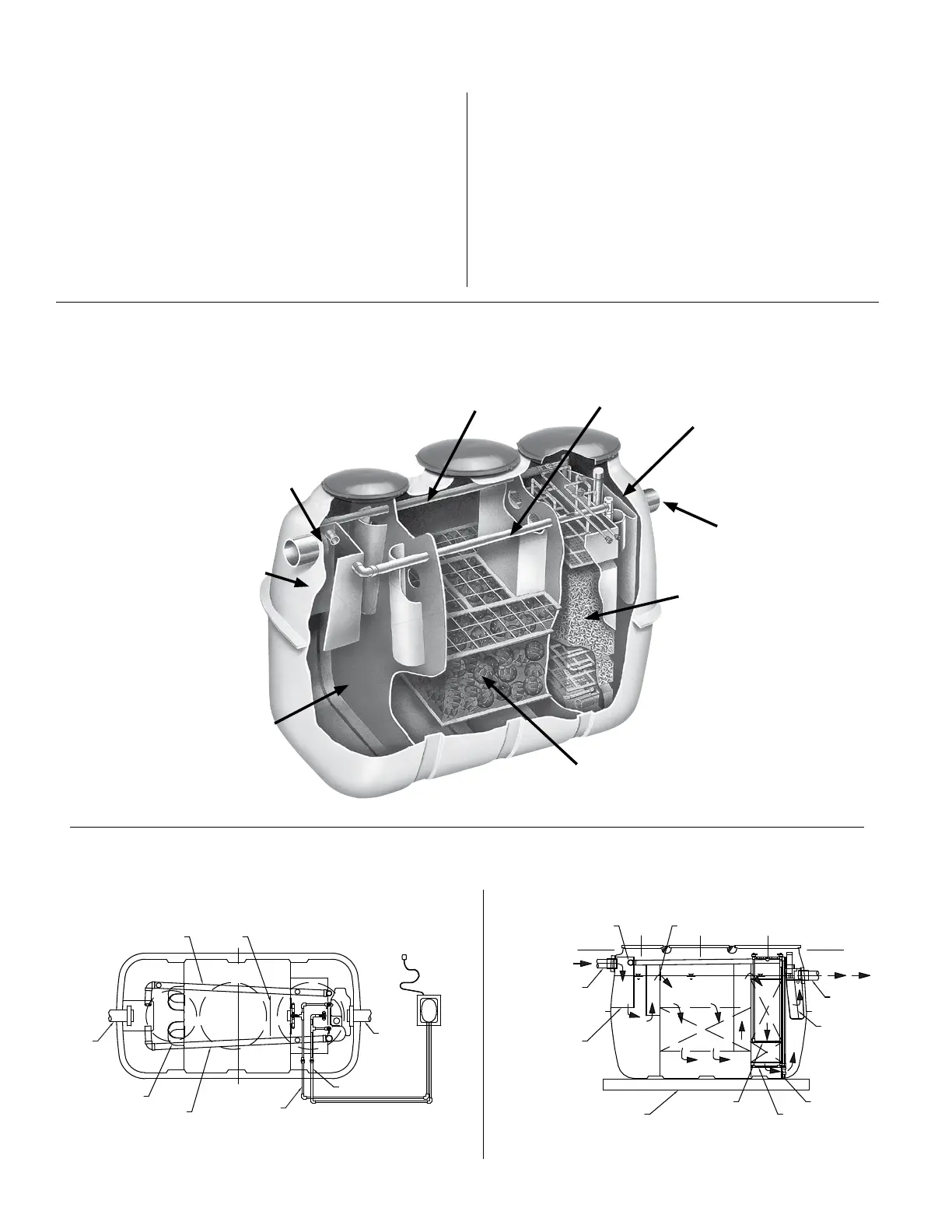

Figure 1 - The following diagram will help you to better understand the process:
Figure 2 - Schematic diagram of the Fusion
®
Treatment System
SK3194
(DN 100)
