Page 15 (Schematics)

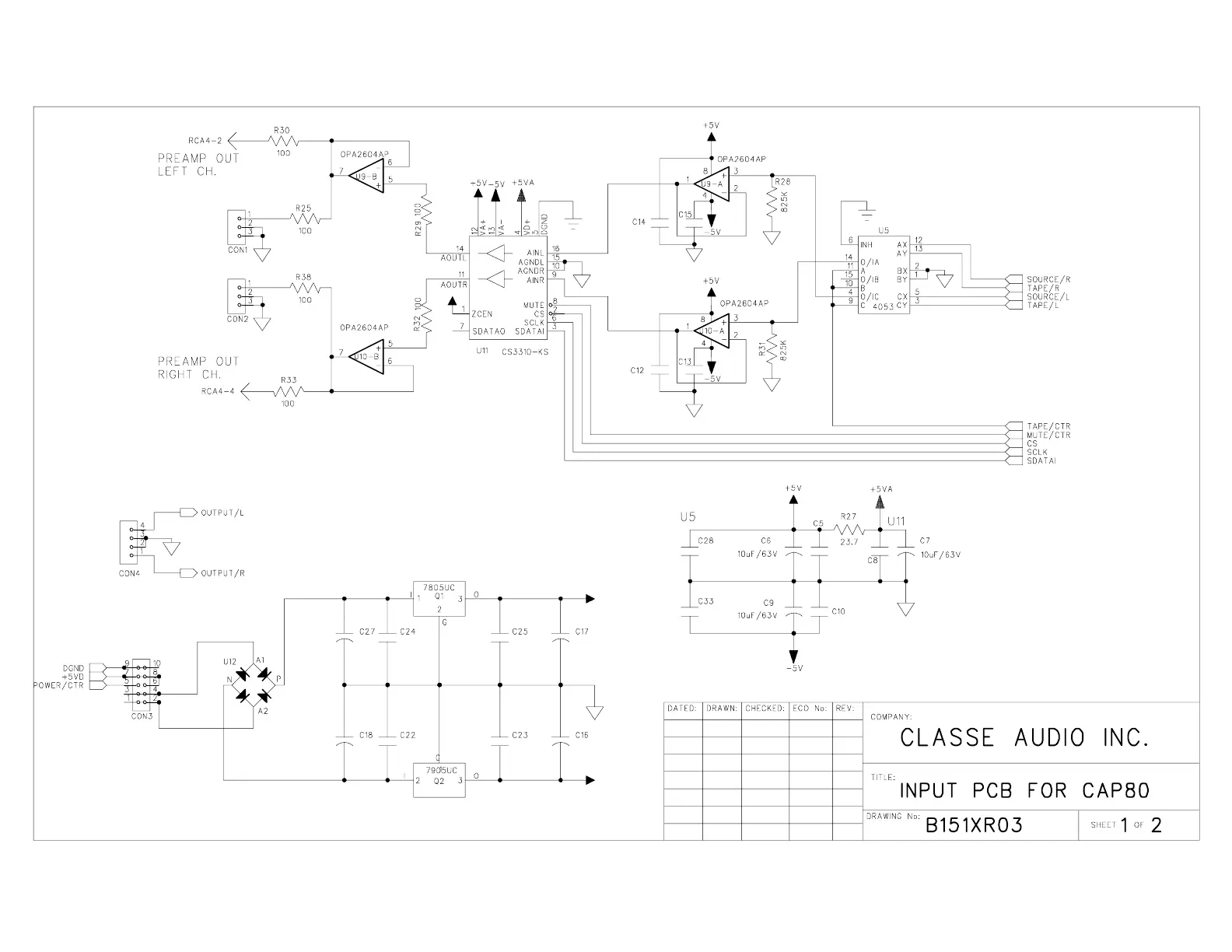

Classe Audio CAP-80 - Schematics

Classe Audio CAP-80

19 pages

Save Page as PDF

To Next Page

To Next Page

To Previous Page

To Previous Page

Loading...

Table of Contents

Service Manual1
Table of Contents2
Introduction3
Important Notes on Servicing3
Ordering Replacement Parts3
Block Diagrams4
Start up Procedure5
Protection Modes and Indicators6
Troubleshooting Guide7
Output Transistors Testing and Replacement8
Calibrations and Adjustments9
Parts List10
Updates11
Fuses12
Voltage Change13
IR Interface Information14
Schematics15
