PRODUCT SPECIFICATIONS
WIRING
Adapter Input AC100-240V, 50/60Hz
Adapter Output DC15V 4.0A
Power Consumption 60 Watts
Standby Power Consumption < 1 W
OPTICAL IN R AUX IN L DC 15V IN
1. Optical Cable:
Your console includes Optical Cable to stream audio from an external source (i.e.TV) to the sound system.
2. RCA:
You also have the additional option to stream audio using a standard RCA Cable (not included).
3. Insert the corresponding cables from your television or other source device into the back of the
sound system console.
1). Optical cable (part EX)
2). RCA audio cables (sold separately)
4. Plug the power cable (part V) into a standard 100-240V outlet and into the DC transformer (part W).
Plug the DC power source into the DC 15V port.
Ipod Dock: TS-ID01
J
VW

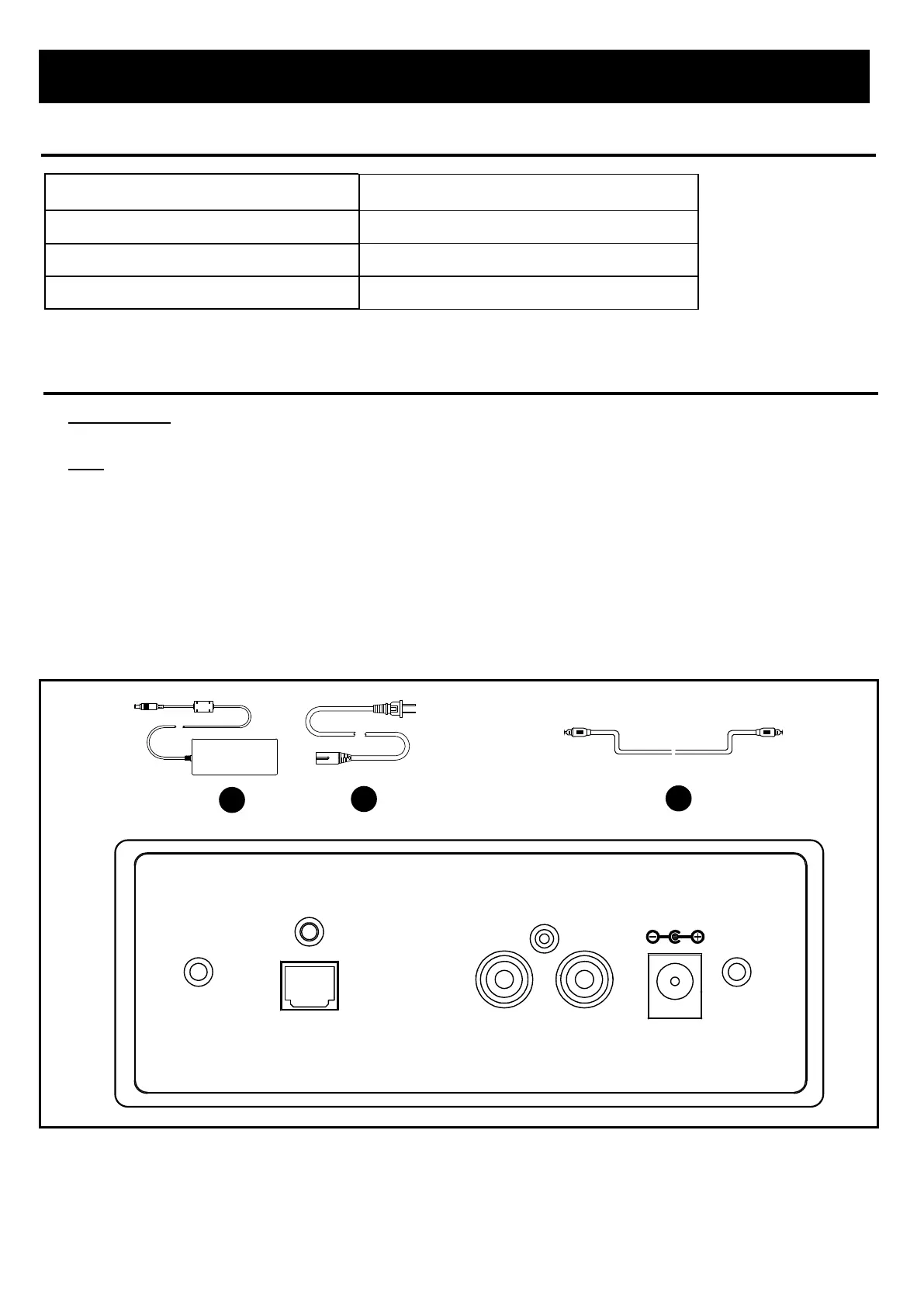

Fig.1 Back Panel
Sound System: TS-4006
EX
