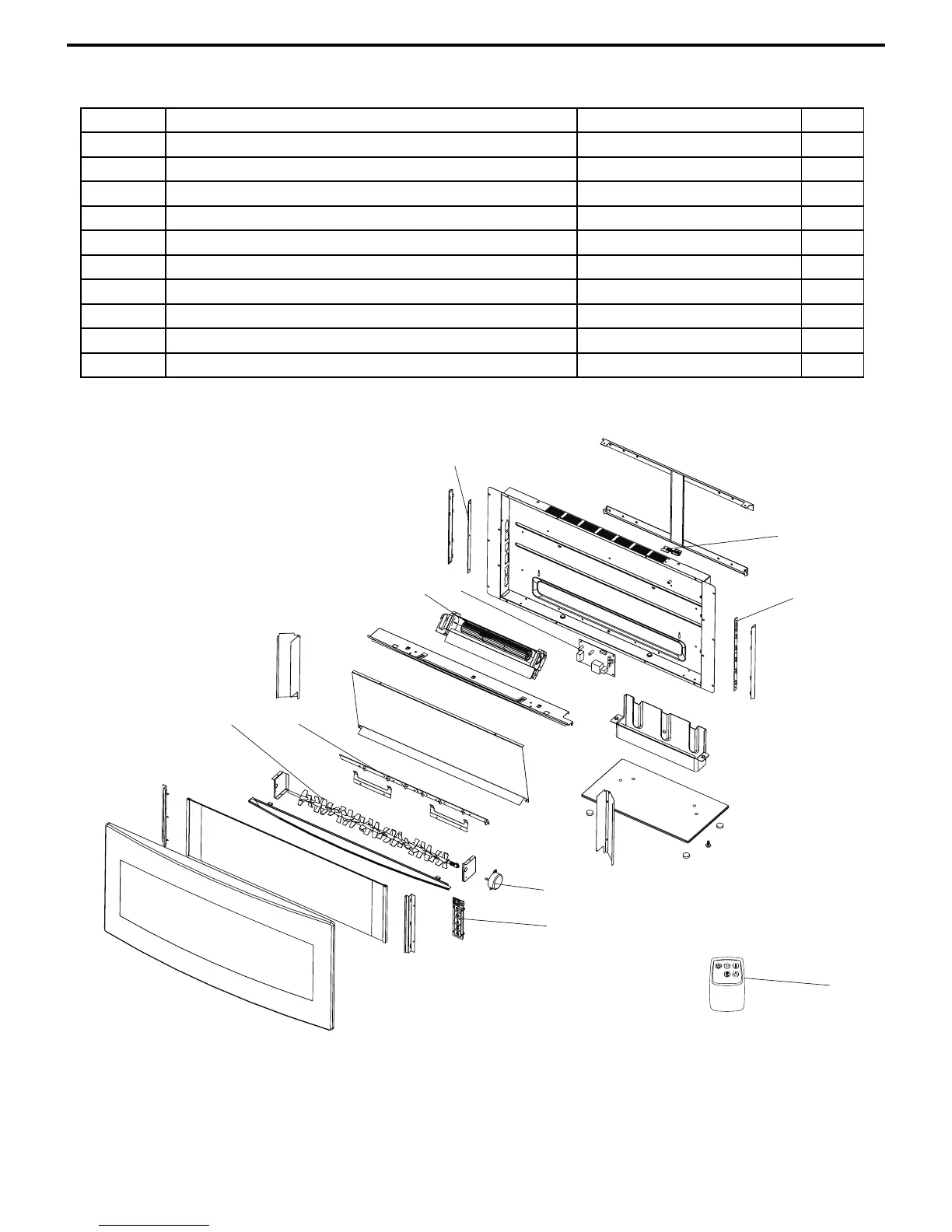

REPLACEMENT PARTS LIST AND EXPLODED VIEW
For replacement parts, call our customer service department at 1-866-661-1218,
8:30 a.m.-5:30 p.m., EST, Monday-Friday.
1
2
3
4
5
7
6
8
9
10
I.D. No. Description Part No. Qty
1 Control Panel 5 Buttons Y12-S84-P85 1
2 Spinner Motor P10-Q 1
3 Right Backlight PCBA Y12-S84-P49R 1
4 Thermostat Sensor 34HF-NTC 1
5 Left Backlight PCBA Y12-S84-P49L 1
6 Blower/Heater Assembly Y07-C26-P01 1
7 Flame PCBA Y12-S84-P40 1
8 Flame Generator/ Spinner Y12-S84-P11 1
9 Remote Control - 5 Buttons P91 1
10 Main Circuit Board Y12-S84-P15 1
To Next Page
