ClassicFlame 36EB110-GRT - Install control box

E-10

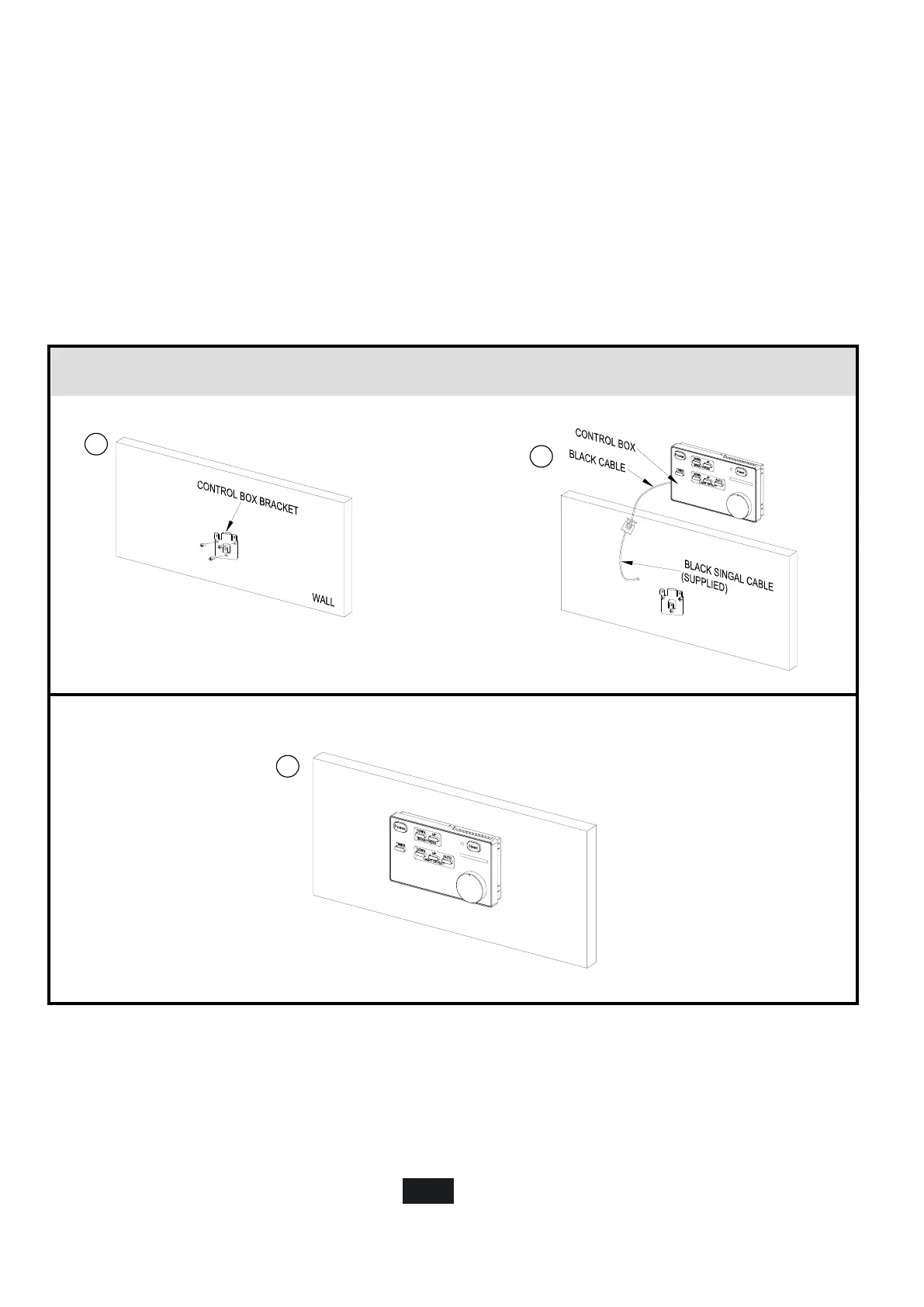

Figure 10
SECTION 7: INSTALL CONTROL BOX
1. Mount the control box bracket to the wall using provided screws.
2. Connect control panel wire to extension cable.
3. Insert the control box to the bracket and finish the control box installation.
1
2
3
