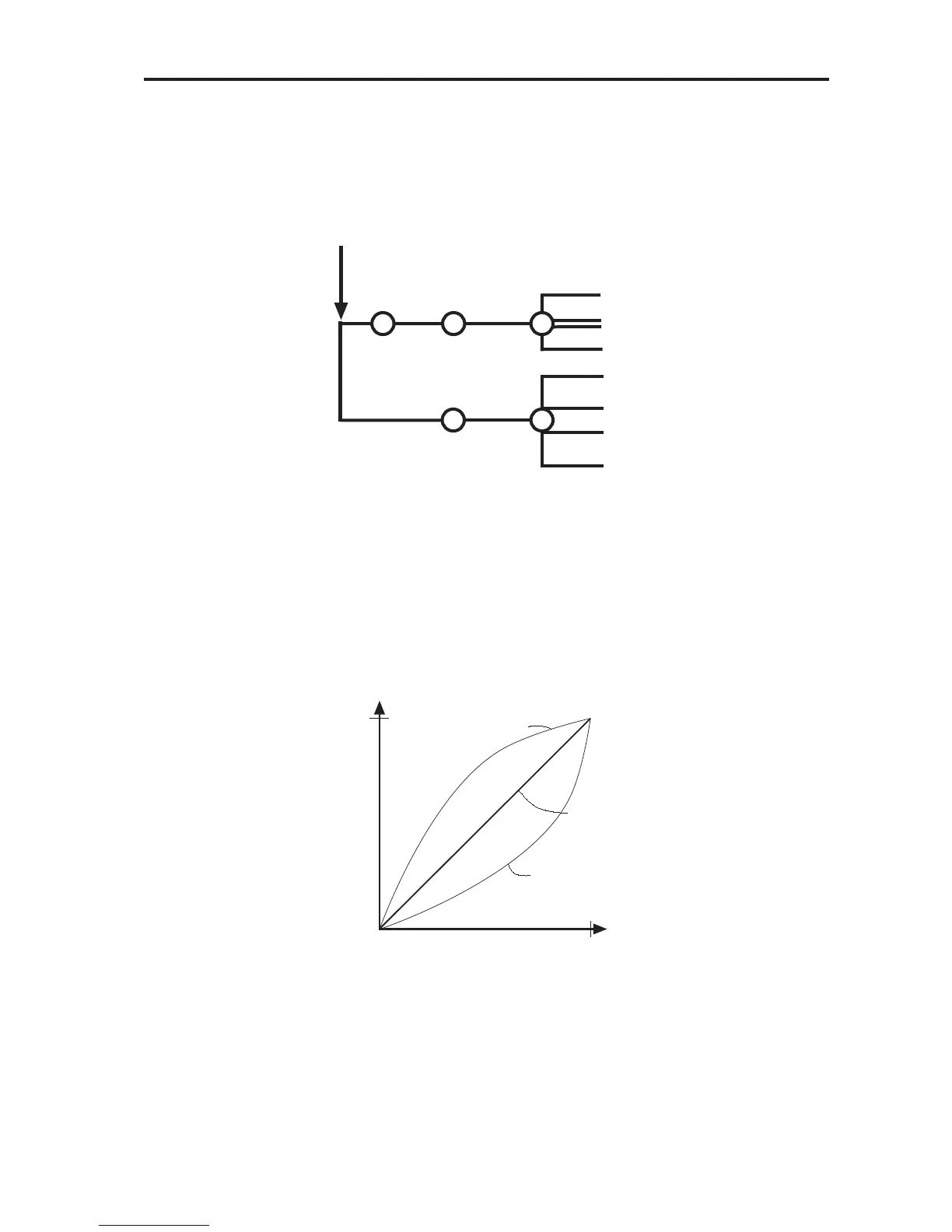

Output assignment
This figure shows the path that the sound from each channel follows to the outputs.
A1
A2
B3
B4
B5
B6
Level A
Level B
Sound
Outputs
Master
level
Out B
Out A
Headphones
Dynamic curves
This figure shows the relationship between the striking force and the trigger level, with three
different dynamic curves.
striking
force
trigger level
pos. dyn curve (+15)
neg. dyn curve (-15)
linear dyn curve
(preset)
max
max
min
Appendix
