8
TROUBLESHOOTING
6
No electrical power supply.
Check that power is available at
the mains socket and/or that fuses
are intact.
PROJECTOR DOES NOT LIGHT UP
FAULTS
PROJECTION FAULTY
REDUCED BRIGHTNESS
POSSIBLE CAUSES CHECKS AND REMEDIES
•
•
••
•
Lamp expended or faulty.
Change lamp (see instructions).
Deposit of dust or grease.
Clean (see instructions).
CONSTRUCTION FEATURES
Cooling
Forced ventilation cooling system using
axial flow fans.
Housing
• Extruded die-cast aluminium.
• Epoxy powder coated finish.
Operating position
Will function in any position.
Weight and dimensions
Weight: 5.8 kg (12 lbs 12 ozs).
ELECTRICAL
MECHANICAL SPECIFICATIONS
Power supply
• 100-120V 50/60Hz
• 200-240V 50/60Hz
Lamps
• 12V 90W (Halostar).
To be used with special Clay Paky
pencil beam parabola (2.5°).
• 12V/50-75-100W (Halospot).
Built-in reflector with different beam
apertures.
Power consumption
150VA max. (consumption varies in
relation to the lamp).
CONTROL SYSTEM
Channels
N. 3 control channels.
Inputs
• RS232/423(PMX)
• DMX512
• 0-10V
MOVING BODY
• Movement generated by two
microstepping motors with full micro-
processor control.
• Range of adjustment:
- PAN = 360°
- TILT = 227°
• Resolution:
- PAN = ± 1.41°
- TILT = ± 0.89°
TECHNICAL DATA
7

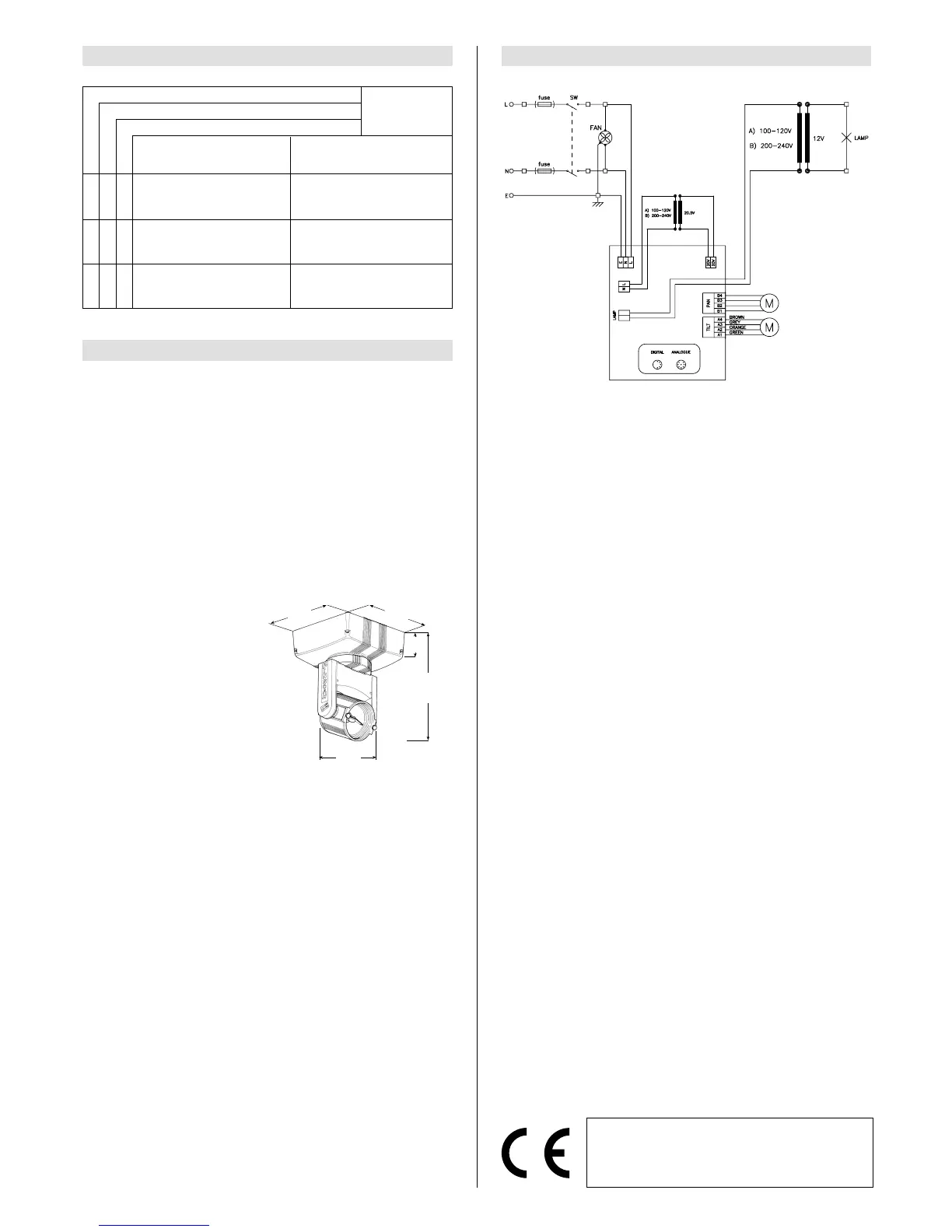

WIRING DIAGRAM
8
The products referred to in this manual comply with
EC Directives on:
• Low Voltage 73/23
• Electromagnetic Compatibility 89/336
The specifications published in this manual are not binding, and may be revised or updated
at any time by Clay Paky without notice in the interests of improving product quality.
