2 Claytech C3X / C5X User Manual

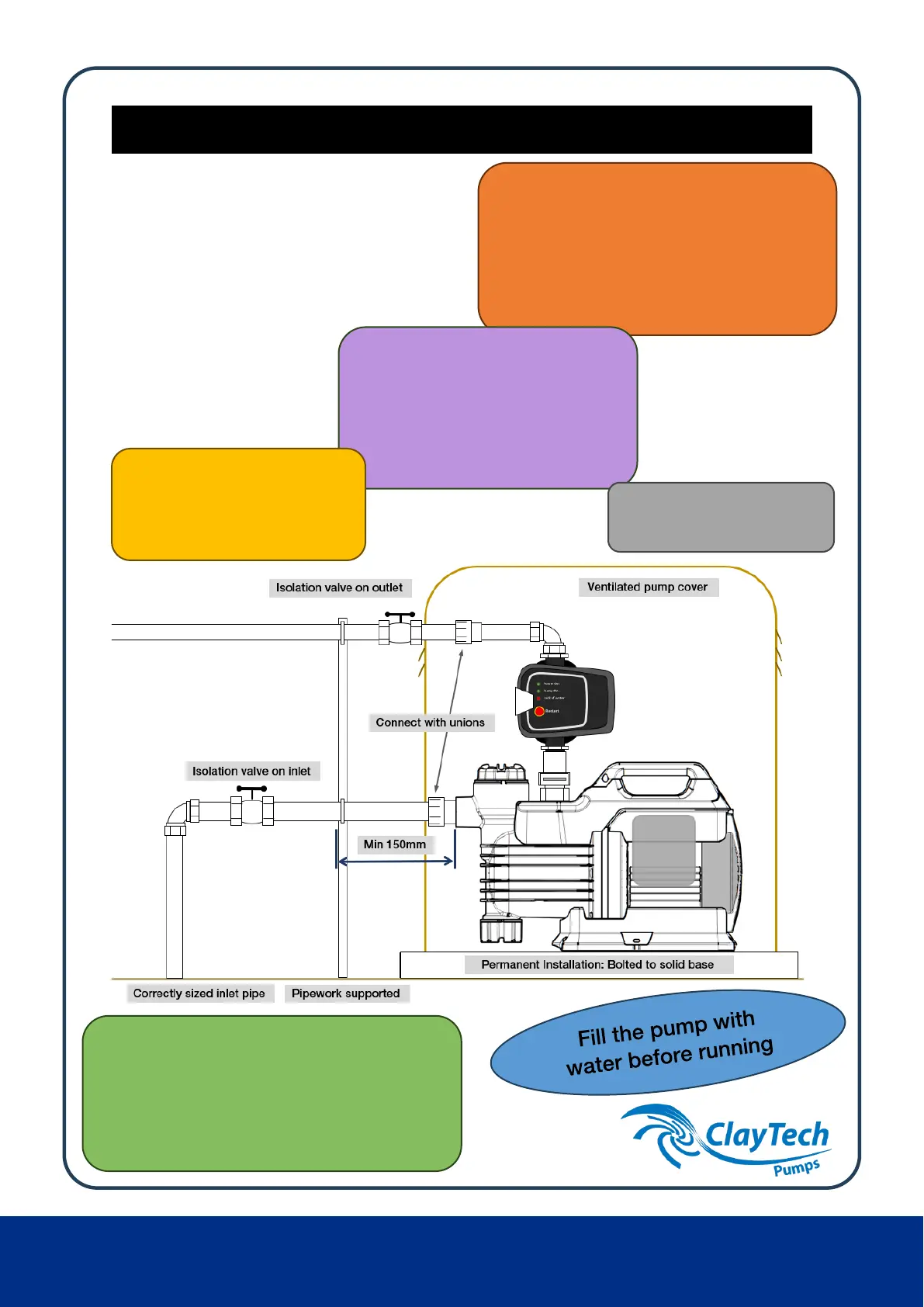

1. Quick installation guide
Getting the basics right when you install
your pump is the first step to ensuring
reliable operation and a good service life
There is additional, more detailed
information within the user manual
The pump should be grounded to
prevent electical leakage and supplied
via a leakage protection switch with a
protection current not exceeding
30mA.
Avoid using extension cords
Suction pipe:
• 25 or 32mm inside suction rated pipe
• As short and straight as practical
• Tank fed – fit a non return valve and an inlet
isolation valve
• Suction lift – fit a non return type foot valve
automatically when the system
pressure falls to 1.5 bar
The pump turns off when flow
falls below 1 litre per minute
To minimise excessive and
unnecessary pump starts
fit a 2, 8 or 18 litre pressure
tank into the delivery pipe
the weather
