Claytech C3X / C5X User Manual 7
9. Technical Specifications con’t

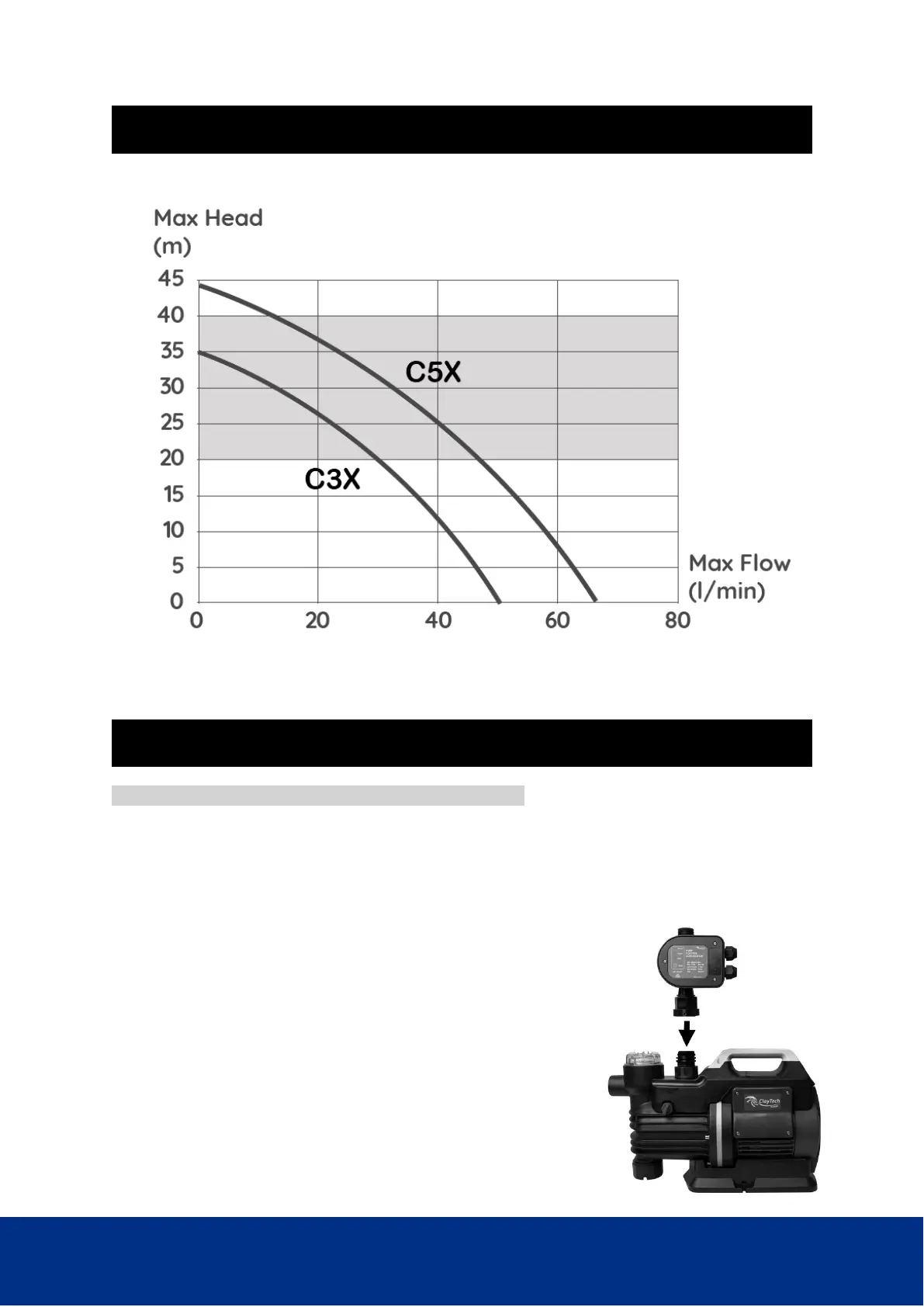

Most domestic applications find 2.0 – 4 bar pressure sufficient.
10. Assembly
CONNECTING THE CONTROLLER TO THE PUMP
The controller and the pump are each pre-fitted with one half of an innovative
quick-connect swivel union which allows the controller to be rotated freely to
face the desired direction
•
Unpack the pump and the controller. Dispose of
the packaging carefully
•
Remove the stainless C-clip and press the
controller union into the pump outlet union socket
on the top of the pump (take care not to damage
the O-ring).
Wetting the O-ring or using a little silicon
grease may aid assembly
• Carefully refit the stainless C-clip to lock the 2
halves of the swivel union together
•
Connect the 3-pin plug from the pump to the
socket of the controller.
•
Plug the controller 3-pin plug into the electrical
outlet.
Avoid using extension cords
To Next Page
