Replacement Parts
1
2
3
4
7
8
9
10
12
13
5
6
14
11
15
In order to maintain warranty, components must be replaced using original manufacturers parts purchased
through your dealer or directly from the appliance manufacturer. Use of third party components will void
the warranty.

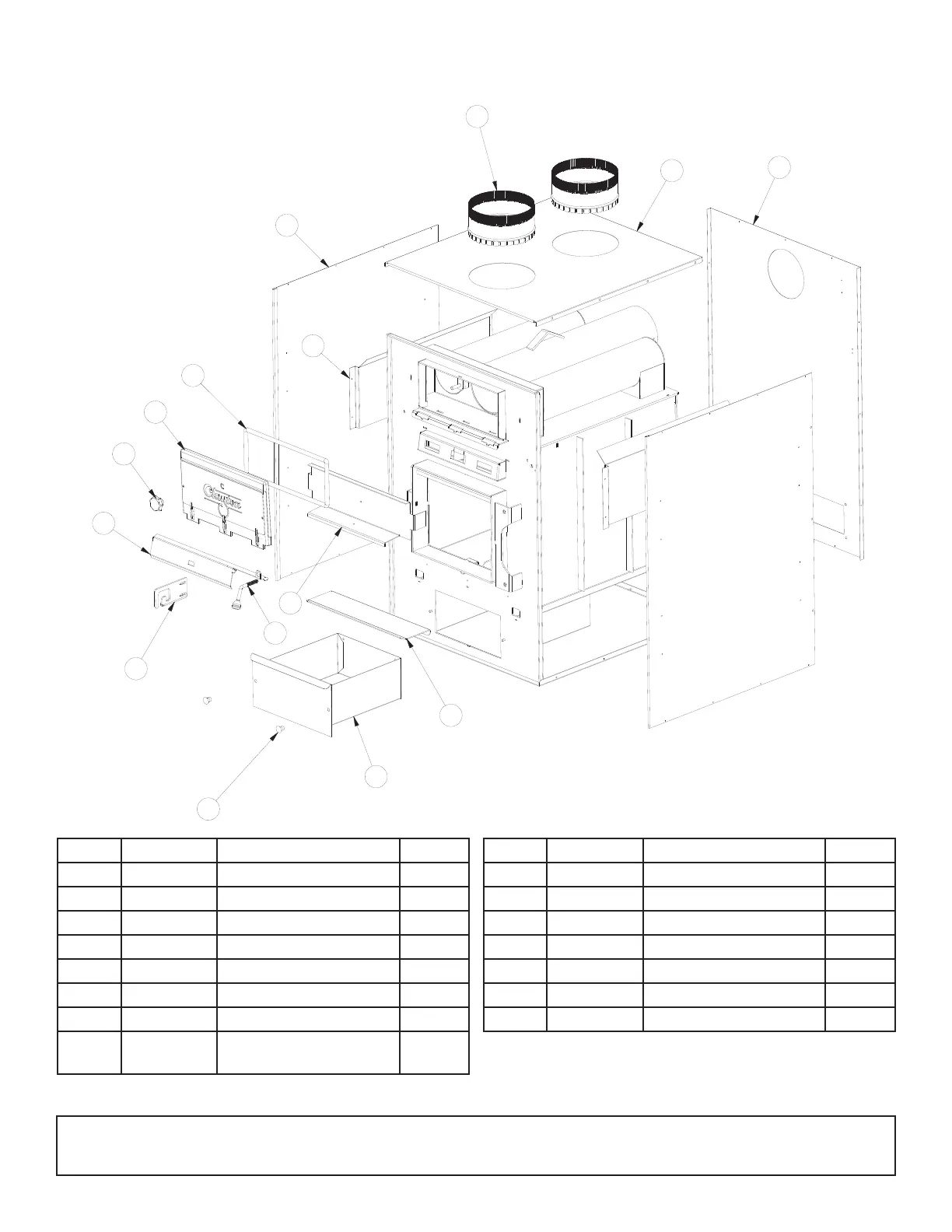

Key Part No. Description Qty.
1 27312G Side Panel 2
2 891214 Stub Collar, 8” 2
3 27322 Top Panel 1
4 27329 Cabinet Back 1
5 26761 Hearth Plate 1
6 26765 Air Wash Plate 1
7 27325 Air Divider 2
8 88057
Ash Pan Door,
Thermocord 1/2”
20”
Key Part No. Description Qty.
9 40627 Heat Exchange Door 1
10 892351 Exchange Handle 1
11 27327 Air Damper 1
12 26866 Door Latch 1
13 892503 Damper Handle 1
14 891987 Plastic Knob 2
15 610154 Ash Pan 1
