Clayton CF700M - Furnace Installation; Installation Options; Clearance to Combustibles

6
Furnace Installation
Dimension Inch mm
A Backwall to Furnace 29 737
B Sidewall to Furnace 15 381
C Sidewall to Flue 18 458
D Backwall to Flue 18 458
E Supply Duct (rst 6 feet) 6 153
F Supply Duct (after rst 6 feet) 1 26
G Minimum Duct height 8 204
INSTALLATION OPTIONS
The installation of this furnace includes supplying electrical power, return (fresh air) ductwork, and supply air
ductwork. This furnace may be installed in two different congurations.
1. Stand alone wood furnace
2. Add-on wood furnace
See kit installation section in this manual to ensure proper assembly, installation and operation of your new
furnace.
If installing in an area with a fan it should not be allowed to create negative pressure in the room where the
furnace is installed.

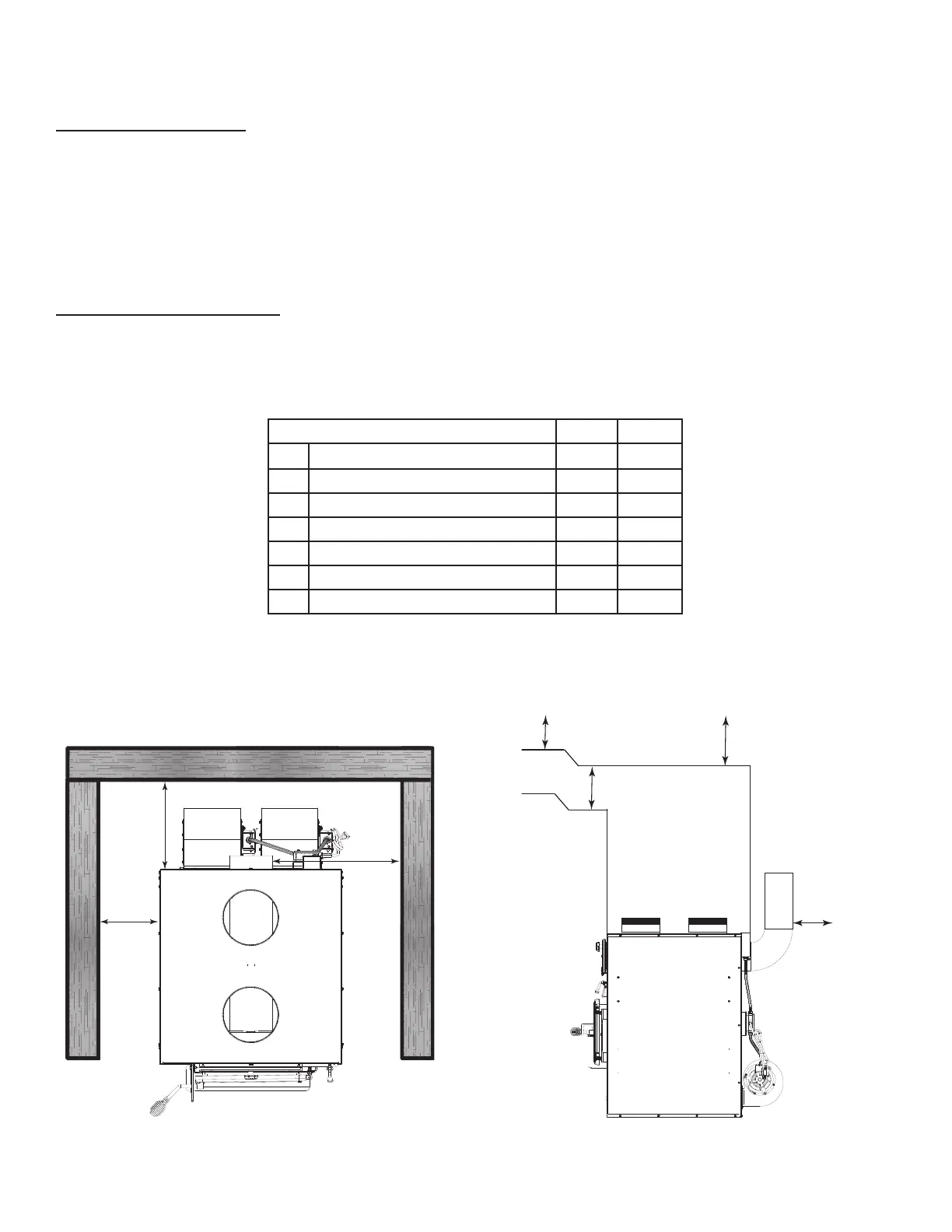

LOCATING YOUR FURNACE (INSURE THAT THE REQUIRED MAINTENANCE CLEARANCES ARE MAINTAINED)
Your furnace must be installed as shown in this manual and in compliance with all local and national codes.
It is of the utmost importance that the clearances to combustible materials be strictly adhered to during
installation of the furnace. Refer to the table and diagrams below for minimum required clearances.
Back wall / Arrière Mur
Side wall / Paroi Latérale Side wall / Paroi Latérale
Back wall / Arrière Mur
Ceiling / Plafond
Floor Protector / Protection de Plancher
C
B
A
J
K
L
H
E
F
G
D
P
M
Q
N
R
R
Back wall / Arrière Mur
Side wall / Paroi Latérale
Side wall / Paroi Latérale
Back wall / Arrière Mur
Ceiling / Plafond
Floor Protector / Protection de Plancher
C
B
A
J
K
L
H
E
F
G
D
P
M
Q
N
R
R
CLEARANCE TO COMBUSTIBLES
CLEARANCE TO COMBUSTIBLES
