STAND ALONE INSTALLATION
If installing this furnace as a stand alone unit, ensure all local codes and all instructions in this manual are followed,
including clearance to combustibles, oor protector specications and safety warnings.

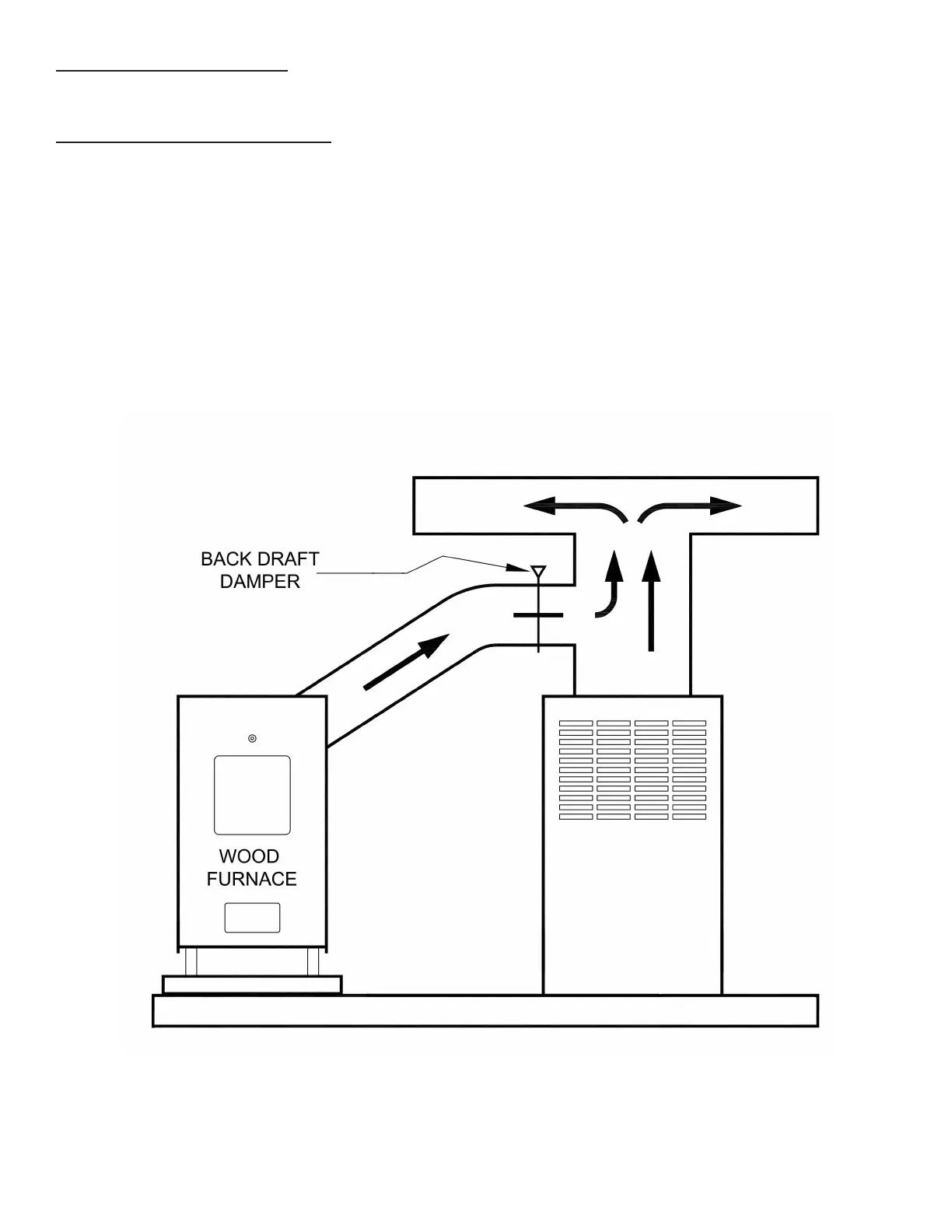

PARALLEL FURNACE INSTALLATION
To install the new furnace in parallel with an existing furnace follow the instructions for series installation with a
few additional requirements listed below.
• The return air will duct directly to the return of the new furnace, and not be pulling through any other
furnace.
• The output of the existing furnace must be equal to or greater than this wood furnace.
• If installing in a parallel conguration the ductwork may need adjustments so as to maintain the static
pressure between 0.2” W.C. And 0.05” W.C.
• A back ow damper must be installed in the supply duct work of the new furnace, to ensure that air does
not circulate back through the wood furnace.
• Some installation congurations may require dampers to be installed in the supply duct work of both
furnaces.
