User Manual
Page 10 clearaudio electronic GmbH 2008
7.
Lift the pendulum shaft to align the V-shaped groove in the pendulum shaft with the locking
screws in the gimbal bearing. Lock the gimbal bearing to the pendulum shaft by fully tightening
the eight screws so that they locate in the groove of the pendulum shaft.
IMPORTANT!
Carefully lift the whole upper section, raising the
pendulum off of the wooden blocks.
8.
Remove the wooden blocks from beneath the turntable
and carefully lower the upper section back onto the
four cork damping plates.

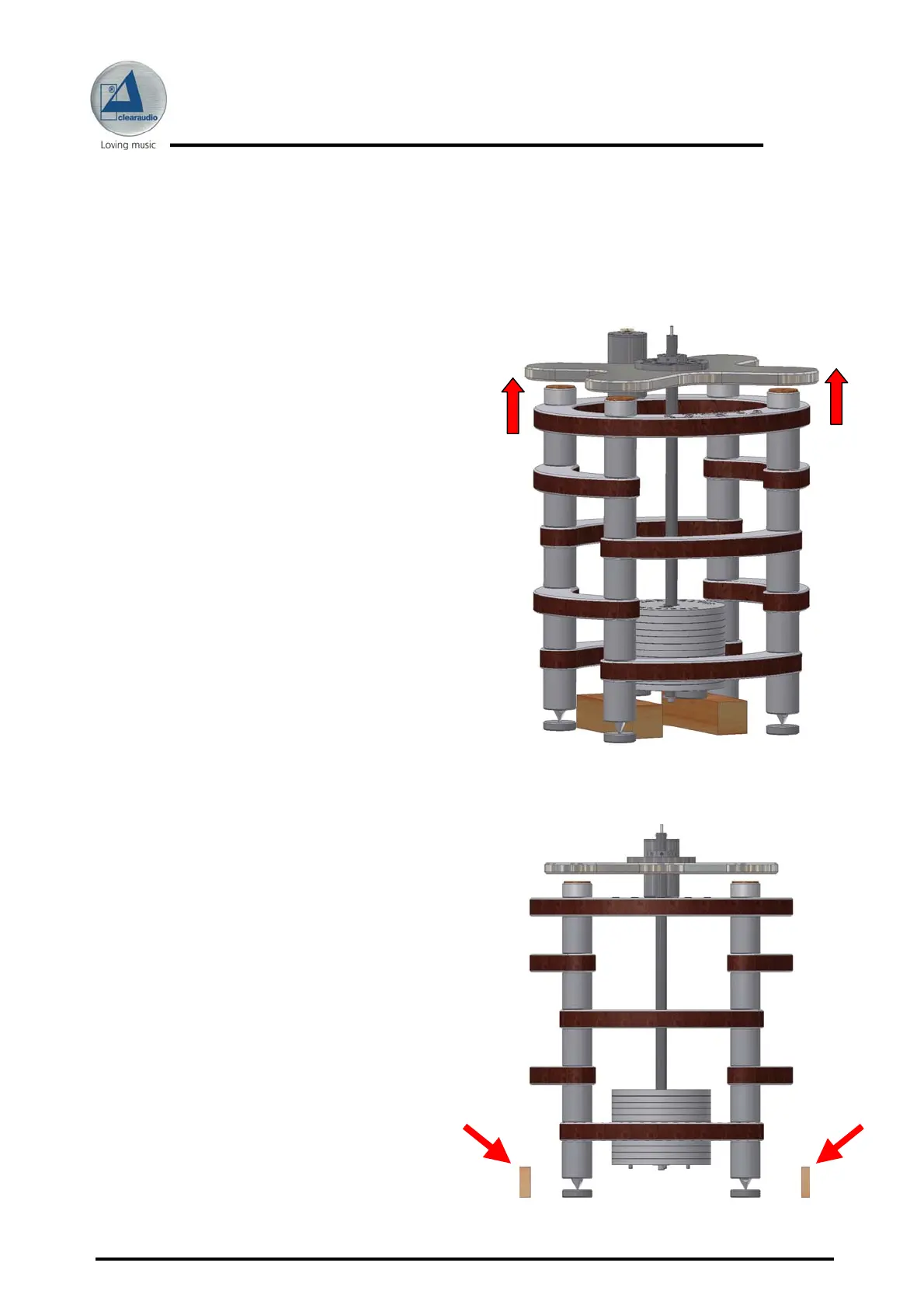

Pic. 7: Lifting the upper part
Pic. 8: Removing the wooden spacers
