YOURx Multi-Purpose Terminal
__________________________________________________________
Installation Manual
Direct: 763.476.6866 • National: 800.422.2537 • www.SeeCleareld.com • techsupport@clfd.net
Manual 021023 REV A - Jan 2020
5.
6.

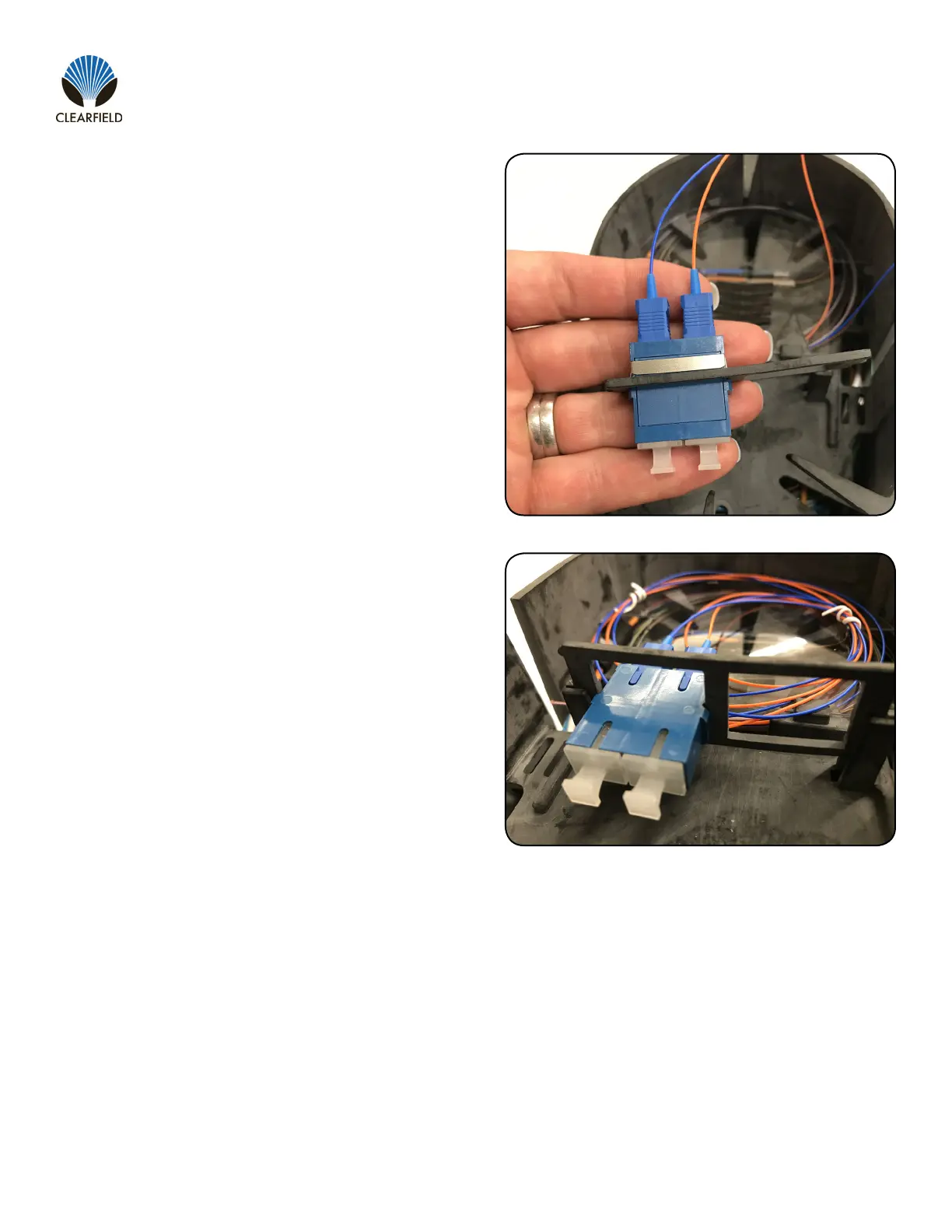

Install the adapters into the adapter plate.
Inspect and clean the ber endfaces and connect
them into the back side of the adapters.
Note: The underside of the back half of the adapter
plate will have a metal clip.
7.
8.
Gently coil the 900 micron bers and place the two
white twist ties around the bers to keep them in a
neat loop and lay them on top of the splice tray cover.
Insert the adapter plate into its location just below the
splice tray.
