Deployment/Mounting
Below Grade Deployment
Much like a typical splice case, the MPT can be coiled into the base of a vault/below grade enclosure.

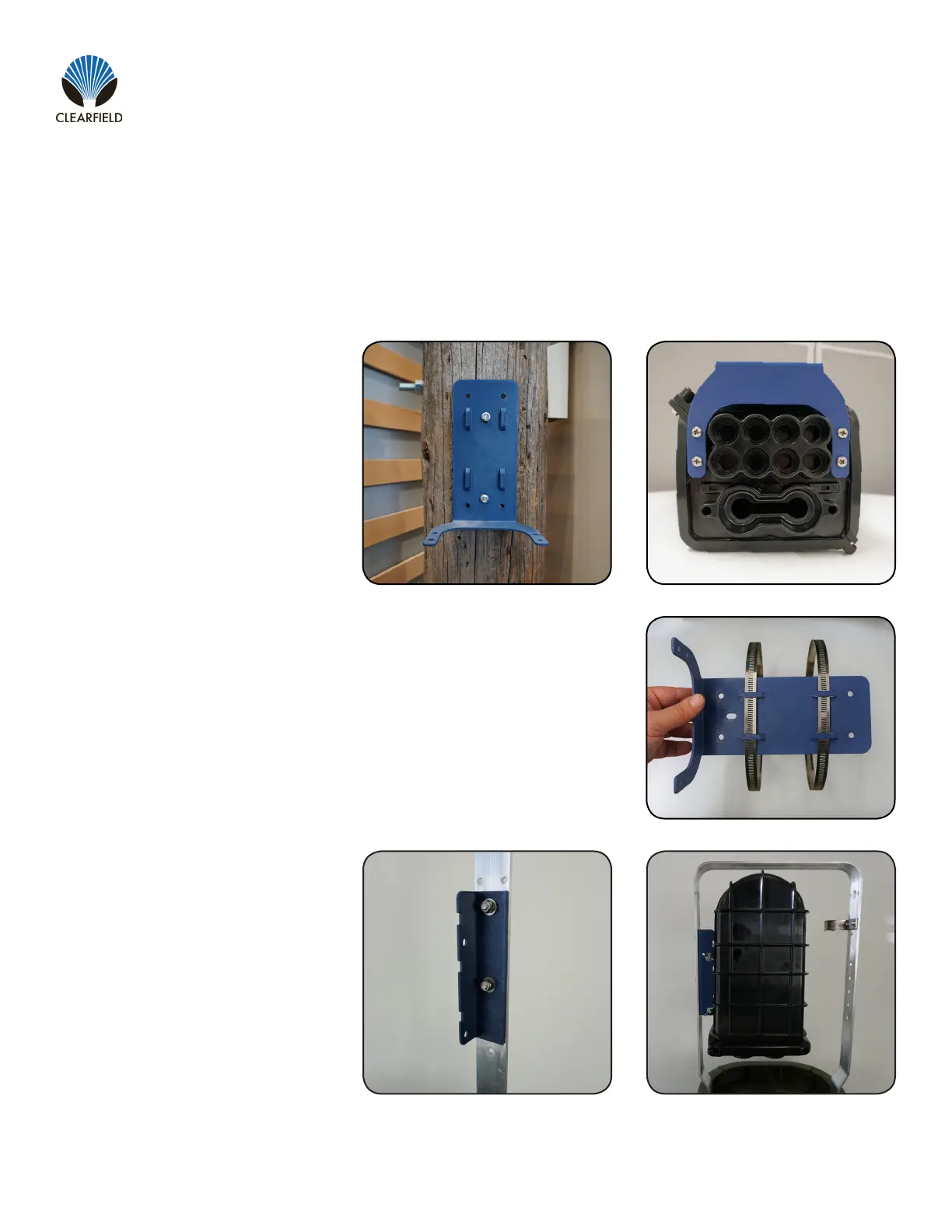

Wall & Pole (Wood) Mounting
The mounting bracket for the MPT
can be secured to the wall or pole via
preferred hardware. Then attach the
MPT to the mounting bracket with the
4 provided screws in the holes at the
base of the terminal.
Note: Cleareld recommends to orient
the MPT mounting bracket with the 4
MPT mounting holes on the bottom of
the bracket.
Pole (Metal) Mounting
In order to secure the MPT mounting bracket to the metal pole, the customer
will need to supply band clamps. Place the band clamps through the two sets of
bridge lances as shown, and tight them around the pole. Proceed to mounting the
MPT to the MPT mounting bracket with the 4 screws provided.
Pedestal Mounting
Mount the pedestal mounting
bracket into the pedestal.
Secure the MPT to the pedestal
mounting bracket by the holes in
the tabs on the MPT lid, using the
bolts and wing nuts supplied with
the bracket
1.
2.
