YOURx Multi-Purpose Terminal
Installation Manual
_________________________________________________________
Manual 021023 REV A - Jan 2020

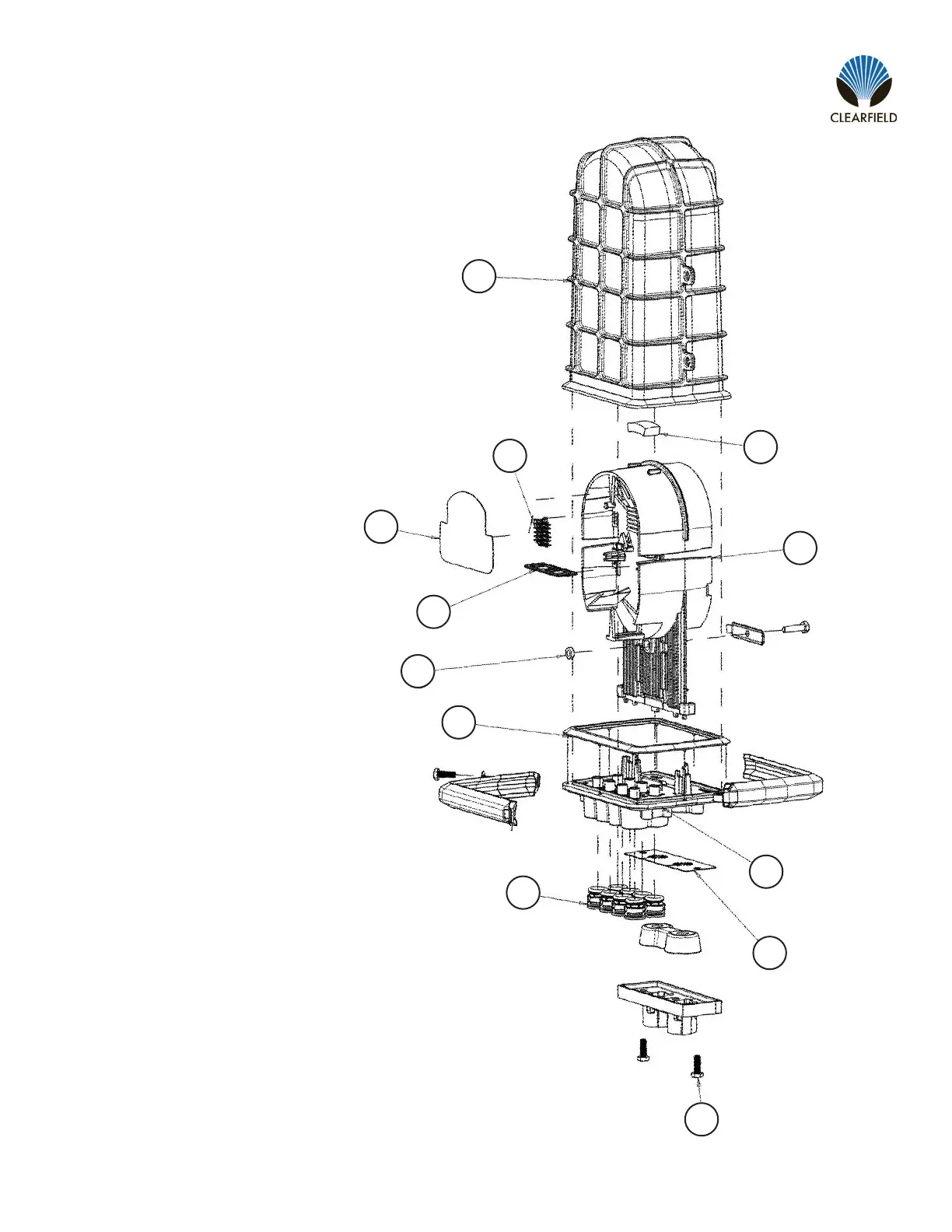

Parts
15
Front View
12
3
13
5
16
8
7
6
1
14
2
Tools Needed
Pulling tool (For MPO FLATdrop)
De-burring tool
Cigar cutter
Rotary cutter
FlexPort release tool
Can wrench
Flat screwdriver
Tools for cable prep and splicing
1. Terminal Cover
2. Terminal Bulkhead
3. Terminal Faceplate
4. Terminal Collar
5. Terminal Seal
6. Splice Chip
7. Splice Tray Cover
8. Adapter Plate
9. Strength Member Clamp
10. Gasket Plate
11. Gasket
12. Gasket Film Cover
13. FlexPorts
14. Vibration Grommet
15. BOLT,HEX HEAD, 1/4-
20X3/4” 18-8 SST
16. BOLT,HEX HEAD,1/4”-20 x
1.00”
17. NUT, HEX THIN SST 1/4-20
18. WASHER, RETAINING,
.213”ID X .50”OD X .025”
THK, PVC
Additional Hardware
