YOURx Multi-Purpose Terminal
Installation Manual
_________________________________________________________
Manual 021023 REV A - Jan 2020

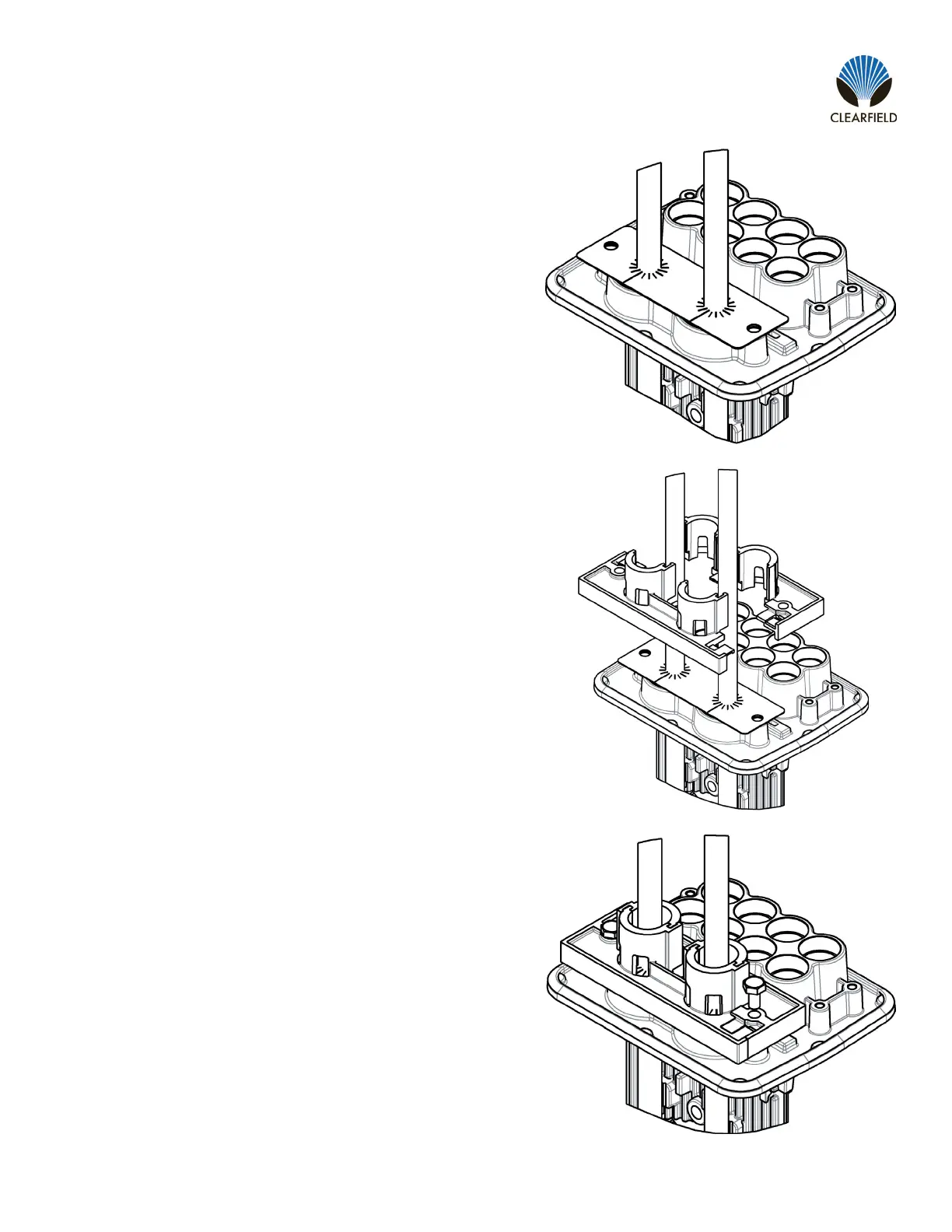

4. Place the clear lm cover over the cables and on top of
the gasket. Press down on the lm cover to further seat
the gasket into the opening and around the cables.
5.
Take the two halves of the gasket cover plate and put
them around your cables. Snap them together.
Note: Once the two halves of the gasket cover plate have
been joined, they cannot be separated.
6. Press down rmly on the gasket cover plate. Using the
two provided 1/4”-20 bolts and a can wrench, secure the
gasket cover plate in place.
