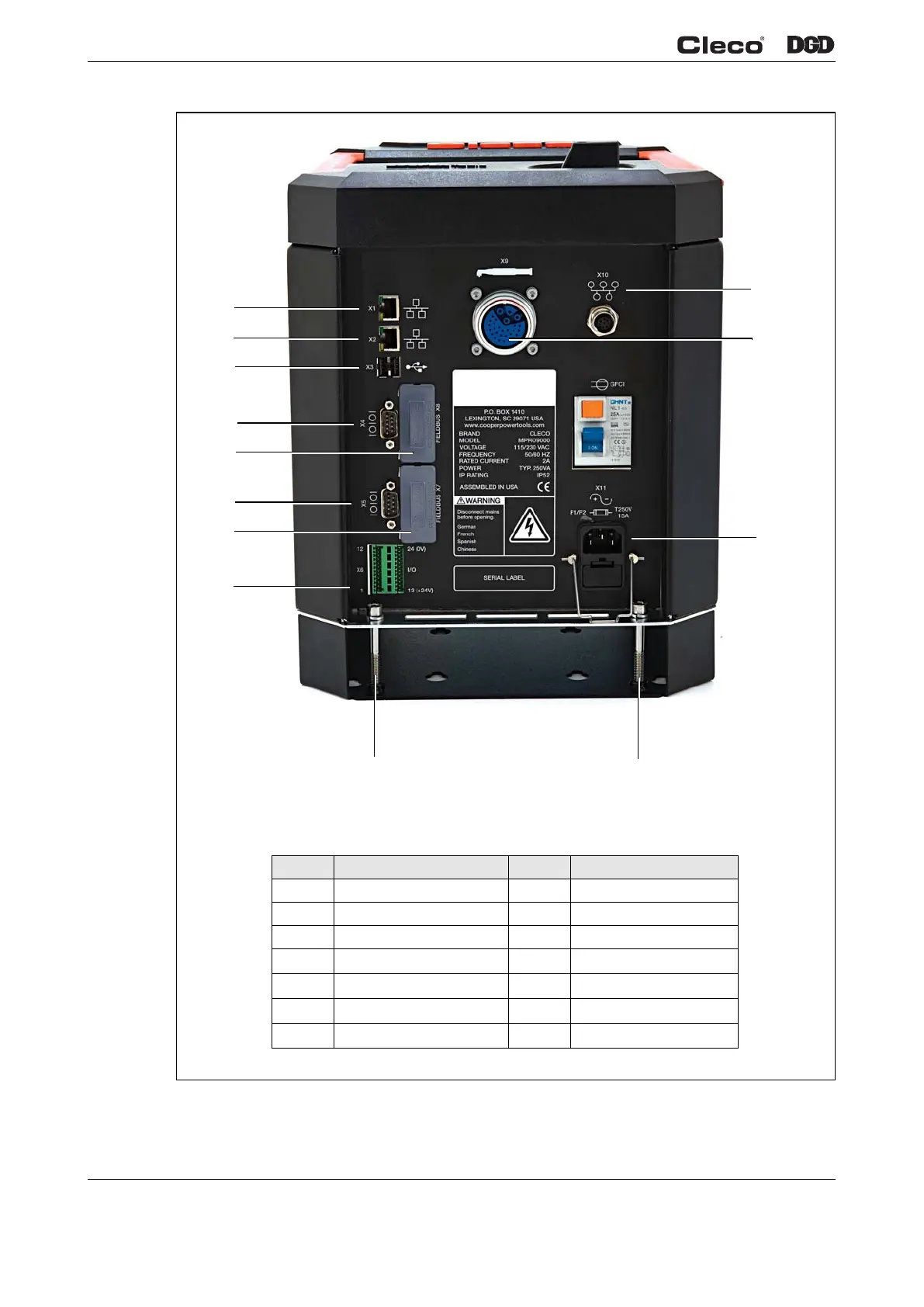

Fig. 1-16 Connector Locations
Position
Description
Position
Description
1
System Bus Connector
8
Serial Connector #2
2
Tool Connector
9
Anybus Fieldbus
3
Power Connection
10
Serial Connector #1
4
Mounting Bracket Screw
11
USB ports (2)
5
Mounting Bracket Screw
12
Ethernet Connector #2
6
I/O Connectors
13
Ethernet Connector #1
7
Anybus Fieldbus
1
2
3
13
12
11
10
9
8
7
6
5
4
13
15
Table of Contents
Controller Description
4
General Information
5
Mounting the Controller
5
Making Connections to the Controller
5
Accepting a Corded Tool
6
Accepting a Livewire Tool
8
Programming a Basic Fastening Strategy
11
Auto Programming (Torque Control / Angle Monitor Only)
11
Manual Programming
12
Sales & Service Centers
20
