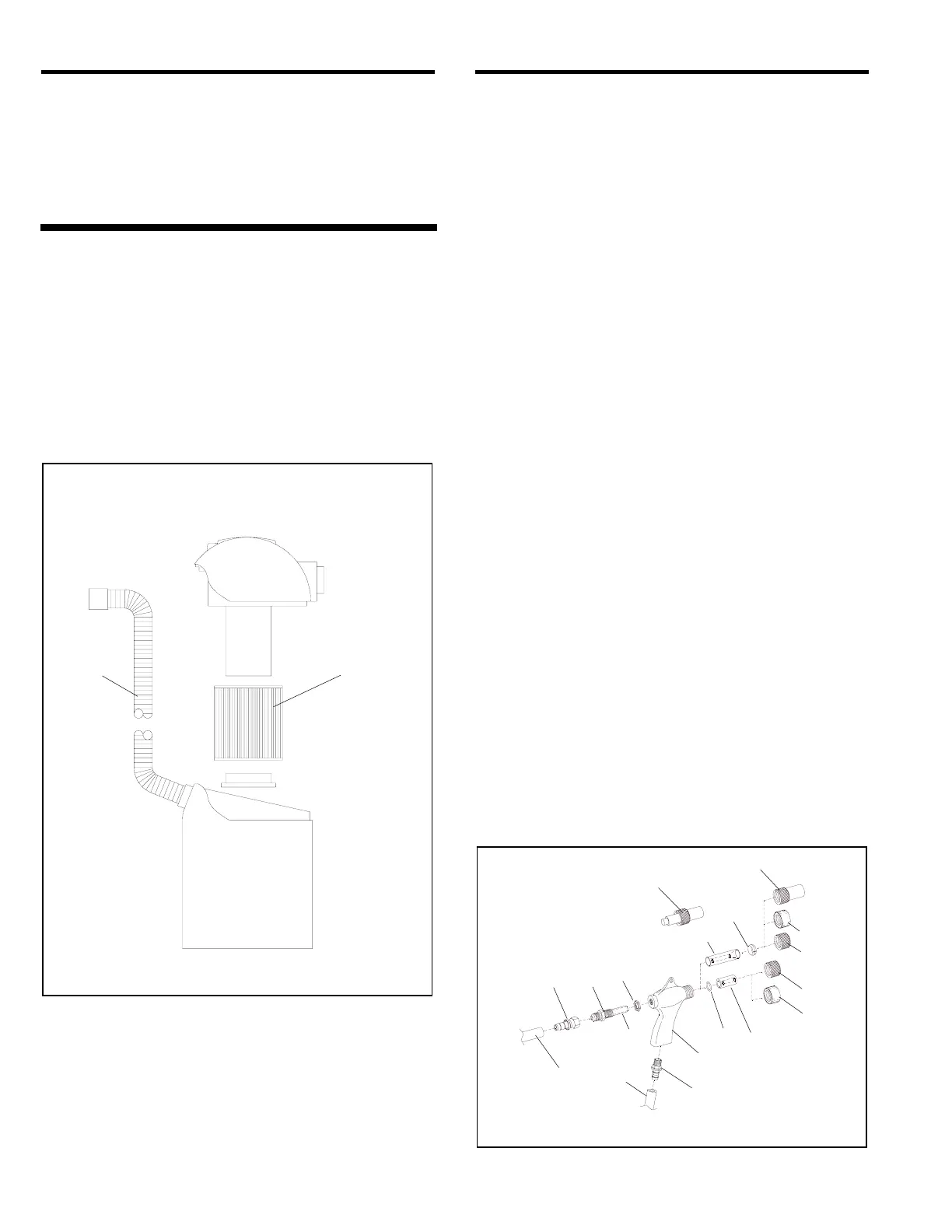

INEX SUCTION BLAST CABINET With VACUUM COLLECTOR Page 10
© 2005 CLEMCO INDUSTRIES CORP. • www.clemcoindustries.com • Manual No11217 Rev. E 03/05
7.13 Dust Leaking From Collector Canister
7.13.1 Check for damaged or loose filter.
7.13.2 Check that upper and lower tube sheets are
sealed on both sides, front, and rear.
8.0 REPLACEMENT ARTS
8.1 Vacuum Collector, Figure 13
Item Description Stock No.
(-). Vacuum collector and hose assembly ........20081
1. Filter, dust collector .....................................23757
2. Hose, dust collector ....................................23758
Figure 13
8.2 BNP Gun and Feed Assembly, Figure 14
Item Description Stock No.
(-) BNP Gun assemblies less nozzle, includes
items 1 (brass) through 7
No. 4 Gun ..................................................12301
No. 5 Gun ..................................................12302
No. 6 Gun ..................................................12303
1. Nut, nozzle holding
Standard, knurled brass ............................11914
Urethane covered ......................................11574
2. O-Ring ..........................................................08975
3. Gun body ......................................................11802
4. Lock nut, air jet .............................................11913
5. Rubber sleeve ..............................................12097
6. Air jet assembly w/ Item 5
No. 4 ..........................................................12342
No. 5 ..........................................................12343
No. 6 ..........................................................12344
7. Hose end, 3/8" NPT x 1/2" barb ...................06369
8. Hose end, 1/2" barb x 1/2" fem. swivel .........15002
9. Nozzle, ceramic
No. 5 ..........................................................11930
No. 6 ..........................................................11931
Nozzle, boron carbide
No. 5 ..........................................................11935
No. 6 ..........................................................11936
Nozzle, tungsten carbide, No. 5 ...................13118
10. Hose, 1/2" air, six feet required ....................12472
11. Hose, 5/8" media, six feet required ..............04906
12. Wide spray nozzle
Tungsten carbide, No. 6 ............................11947
Boron carbide, No. 6 .................................11934
13. Wide spray nozzle nut
Knurled brass ............................................11916
Urethane covered ......................................12906
14. Wide spray retaining ring ..............................12038
15. Wide spray nozzle guard ..............................12295
16. Orifice adjusting tool .....................................19041
Figure 14
1
9
2
3
4
5
6
8
11
7
10
1
13
16
14
13
12
2
15
1
