INEX SUCTION BLAST CABINET With VACUUM COLLECTOR Page 11
© 2005 CLEMCO INDUSTRIES CORP. • www.clemcoindustries.com • Manual No11217 Rev. E 03/05

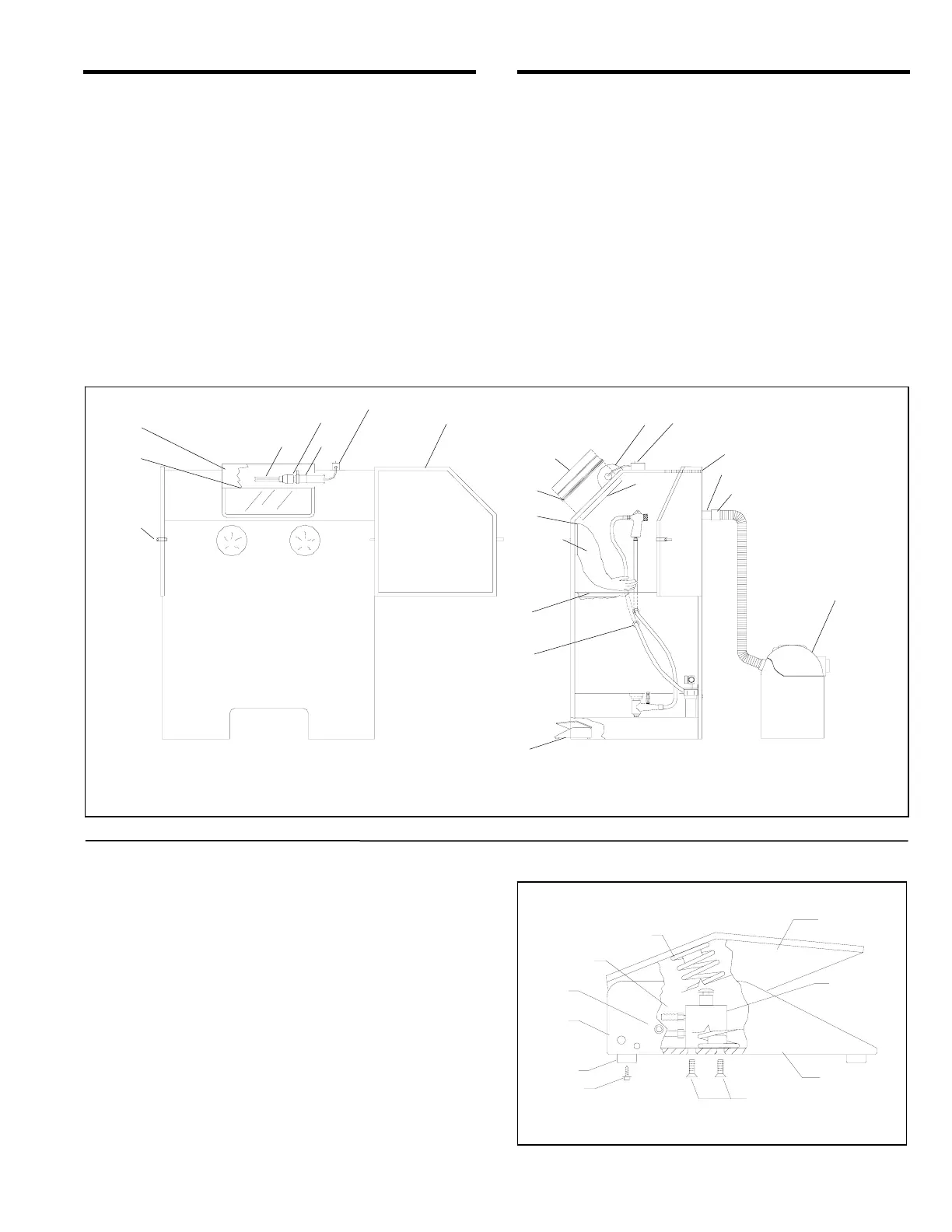

8.3 Cabinet Replacement Parts, Figure 15
Item Description Stock No.
1. Gasket, door, adhesive backed,
10 ft. per door, specify feet required ......... 00187
2. Light shield ................................................... 10767
3. Window glass, 12.5" x 19.5" ........................ 12212
4. Gasket, window, 6 ft. required ..........................12435
5. Filler strip, window gasket, 6 ft. required ..........12436
6. Cover lens, pkg. of 5 .................................... 06190
7. Grate, 3048 .................................................. 10761
8. Latch assembly, door ................................... 10908
9. Glove set ...................................................... 11215
10. Glove, left hand only .................................... 12710
11. Glove, right hand only .................................. 12711
12. Clamp, glove ................................................ 11576
13. Filter media, air inlet ..................................... 14047
14. Lamp, 13 watt fluorescent ............................ 11362
15. Base adapter, lamp ...................................... 11363
16. Light fixture .................................................. 12716
17. Holder, light fixture ....................................... 13112
18. Trim edge, 2 ft. required .............................. 18460
19. Foot pedal assembly, less tubing ................ 20483
20. Grommet, media/air hose, 2 required .......... 11798
21. Control switch/receptacle ............................. 10769
22. Exhaust tube, 2" ........................................... 20310
23. Clamp, 2-1/2" ............................................... 02817
24. Vacuum collector assembly ......................... 20081
Figure 15
8.4 Foot Pedal Assembly, Figure 16
Item Description Stock No.
(-) Foot pedal assembly, less tubing ................ 20483
1. Top, foot pedal ............................................. 20017
2. Base, foot pedal ........................................... 19991
3. Valve, 10-32, 3 way n/c ............................... 20026
4. Drive pin, grooved ........................................ 20109
5. Screw, sh 1/4 NF x 3/4" ............................... 03086
6. Screw, 10-32 x 1/2" fh .................................. 19571
7. Adaptor, 10-32 thrd. x 1/8 barb .................... 11731
8. Spring, 1-1/4" x 3-1/2" .................................. 20121
9. Screw, 8-32 x 3/8″ thread cutting ................ 11389
10. Bumper, rubber (feet) .................................. 21522
Figure 16
6
19
24
4
1
8
5
3
1
9 10, 11
2
7
3
2
4
5
6
7
8
9
10
12
14
15
16
17
18
20
21
22
23
13
