INEX SUCTION BLAST CABINET With VACUUM COLLECTOR Page 12
© 2005 CLEMCO INDUSTRIES CORP. • www.clemcoindustries.com • Manual No11217 Rev. E 03/05

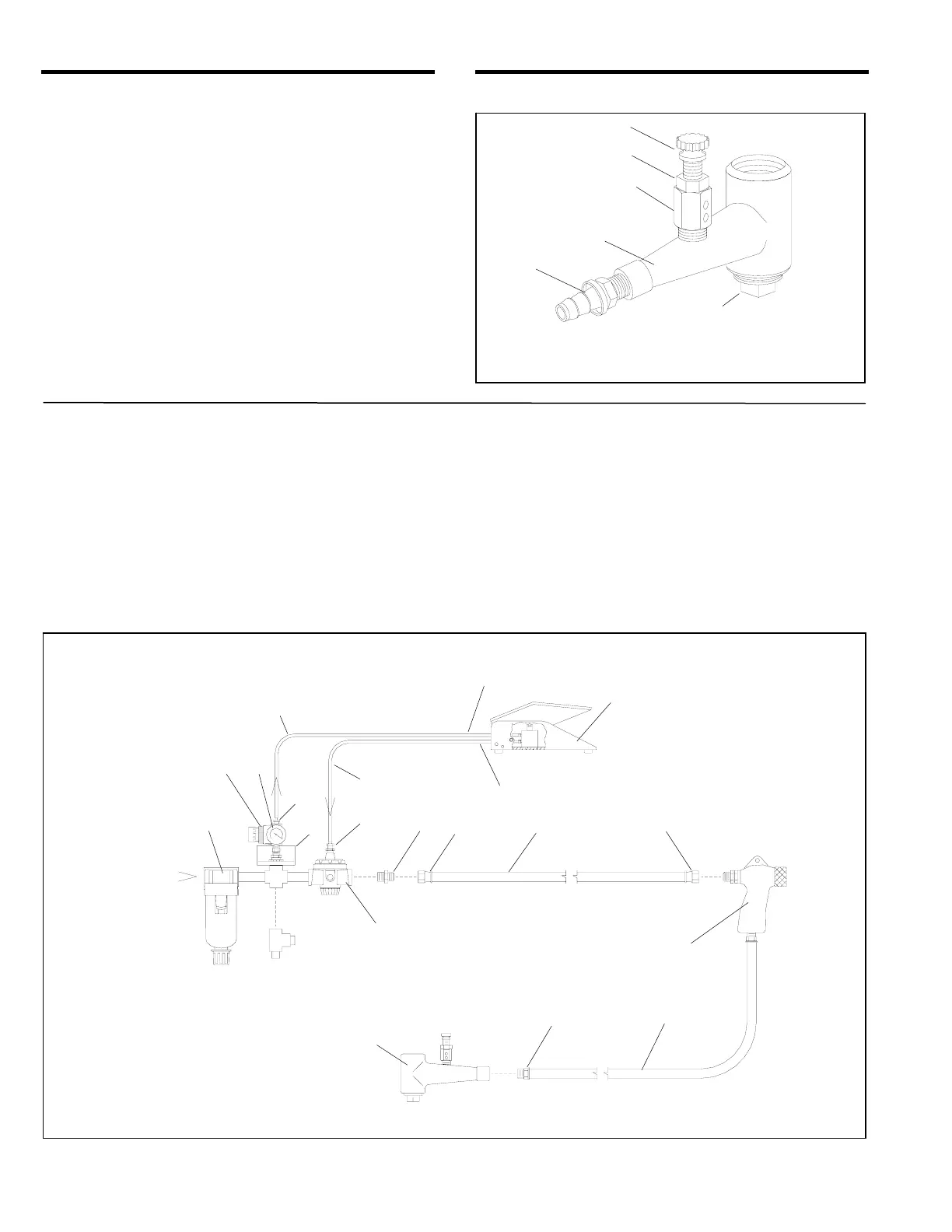

8.5 Metering valve assembly, Figure 17
Item Description Stock No.
(-) Metering valve assembly ..............................12417
(-) Metering stem assembly (items 1, 2, & 3) ....23889
1. Stem, metering adjusting ..............................23097
2. Screw, adjusting ...........................................23098
3. Nut, adjusting stem lock ...............................23099
4. Body, metering valve ....................................11532
5. Fitting, hose, 3/8" NPT x 1/2" barb ...............06369
6. Plug, metering valve .....................................12011
Figure 17
8.6 Cabinet Plumbing Assembly, Figure 18
Item Description Stock No.
1. Adaptor, 1/8" NPT x 1/8" barb ......................11732
2. Tubing, 1/8" urethane, specify ft. required ...12475
3. Foot pedal assembly, less tubing .................20483
4. Bracket, mounting .........................................19231
5. Filter, 1/2" manual drain ...............................01308
6. Adaptor, 1/2" NPT x 1/2" flare ......................11351
7. Hose end, 1/2" barb x 1/2" female swivel .....15002
8. Hose end, 1/2" barb x 3/8" male NPT. .........06369
9. Air hose, 1/2", specify ft. required ................12472
10. Gun assembly, BNP No. 5 ...........................12302
11. Hose, clear urethane, specify ft. required ....12476
12. Regulator, 1/2" pilot operated .......................11345
13. Regulator, 1/8" pilot ......................................12715
14. Gauge, pressure ...........................................11831
15. Metering valve assembly ..............................12417
Figure 18
1
2
15
12
2
5
6
To ″IN″ on valve
To ″OUT″ on valve
3
Compressed Air Inlet
1
2
4
6
5
7
7
8
9
10
11
14 13
4
3
1
