code on Device Manage page;

2. The Master unit collects the data from the SER port through the RS-485 serial communication cable. Please

refer to the《MPDU MODBUS RTU Protocol Guide》for details.

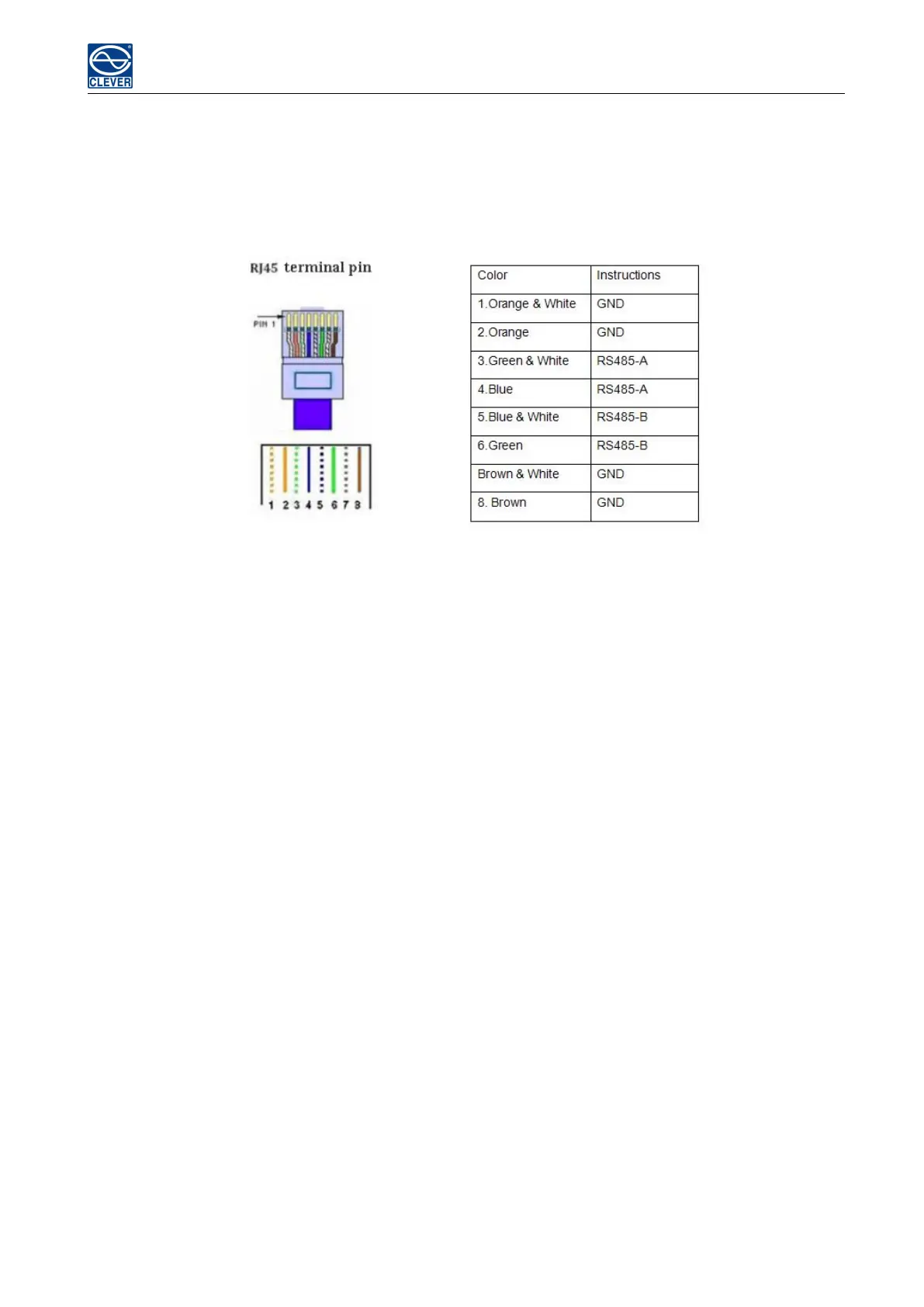

5.5 RJ45 terminal PIN instruction of RS485 port.

6 MPDU Software introduction:

6.1 Software overview:

CLEVER RPDU is equipped with embedded software system which provides lots of network services like WEB

server, SNMP, Telnet, SMTP/SMTPS, MODBUS, NTP and etc. User can access MPDU through the Web

Interface or other methods, at the same time it provides rich ports of secondary development and integration

so the user can manage the device more easily.

6.2 Access method

Access through the Web Interface though IE browser (Supported web browsers includes Internet Explorer,

Google chrome, Firefox and etc)

SNMP（V1/V2c/V3）

Command line interface (telnet)

Serial communication MODBUS RTU

6.2.1 Web interface

Open a browser and enter the default IP address (default IP address:192.168.1.163), the login window will pop

up like below，See figure1-1.
