1.Introduction
Mainboard Overview - Bottom (Key Parts)

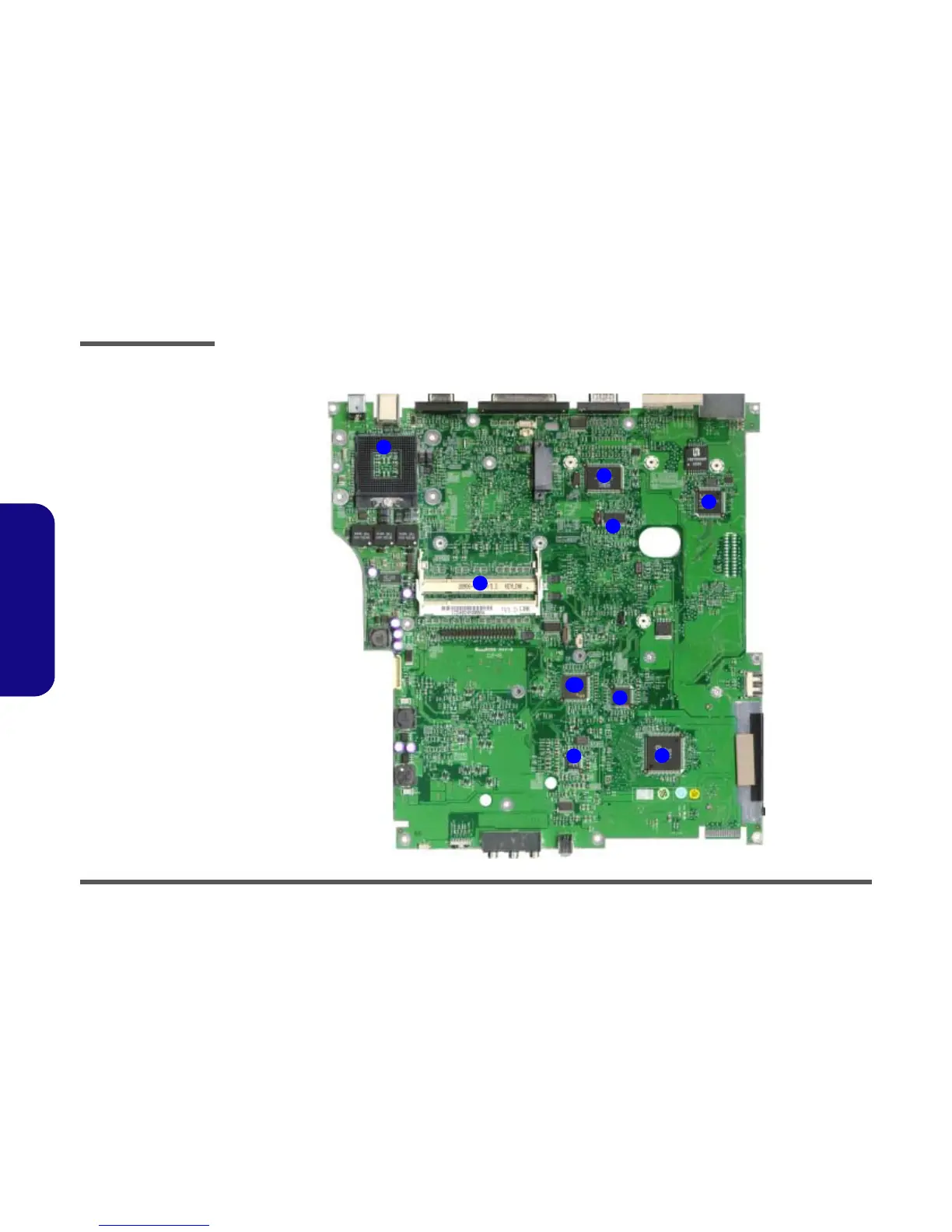

Figure 9
Mainboard Bottom
Key Parts
1. CPU Socket (no
CPU installed)
2. Memory Sockets
(no memory
installed)
3. SiS 302LV TV-
Out Controller
4. LAN Controller
RTL8100BL
5. CardBus ENE
1410
6. ALC202 - Audio
Codec
7. 1394 PHY
TSB41LV01
8. Clock Generator
9. Keyboard
Controller - KBC
H8 H8S-2149 HM
1
2
3
4
5
6
7
8
9
