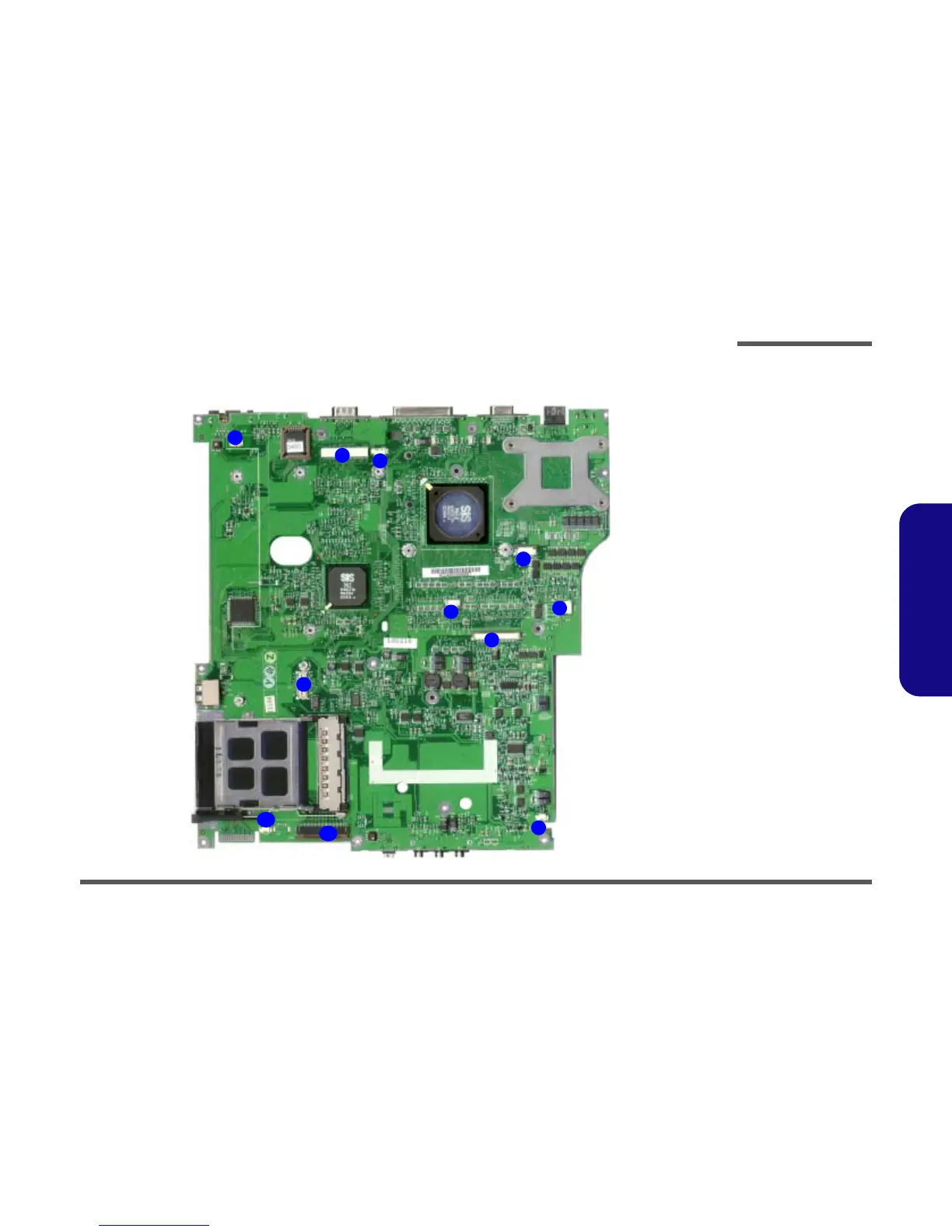

Mainboard Overview - Top (Connectors)
Figure 10
Mainboard Top
Connectors
1. Modem Cable
Connector (CN1)
2. LCD and Inverter
Connector
(JLCD1)
3. Video Camera
Module
Connector
(JCCD1)
4. Switch Board
Connector
(JSW1)
5. Fan Connector
(JFAN1)
6. TouchPad
Connector (JTP1)
7. Keyboard
Connector (JKB1)
8. Modem
Connector
(JMDC1)
9. Speaker
Connector
(JSPK1)
10.Floppy Disk
Controller
(JFDD1)
11. Speaker
Connector
(JSPK2)
5
7
8
4
6
1
2
3
9
10
11
