Disassembly
Removing and Installing the Processor 2 - 9
2.Disassembly
Removing and Installing the Processor
Processor Removal Procedure
1. Turn off the computer, remove the battery (page 2 - 5) and bottom cover (page 2 - 6).
2. Disconnect cable and remove screws - from the heat sink unit in the order indicated on the label (i.e
screw first through to screw last Figure 5a)
.
3. Carefully (it may be hot) remove the heat sink unit at point while using a tool to lever the heatsink up at
point
. Then l
ift the heat sink up at an angle as shown
(
Figure 5b).
A 1 8
8 1
9 10
11

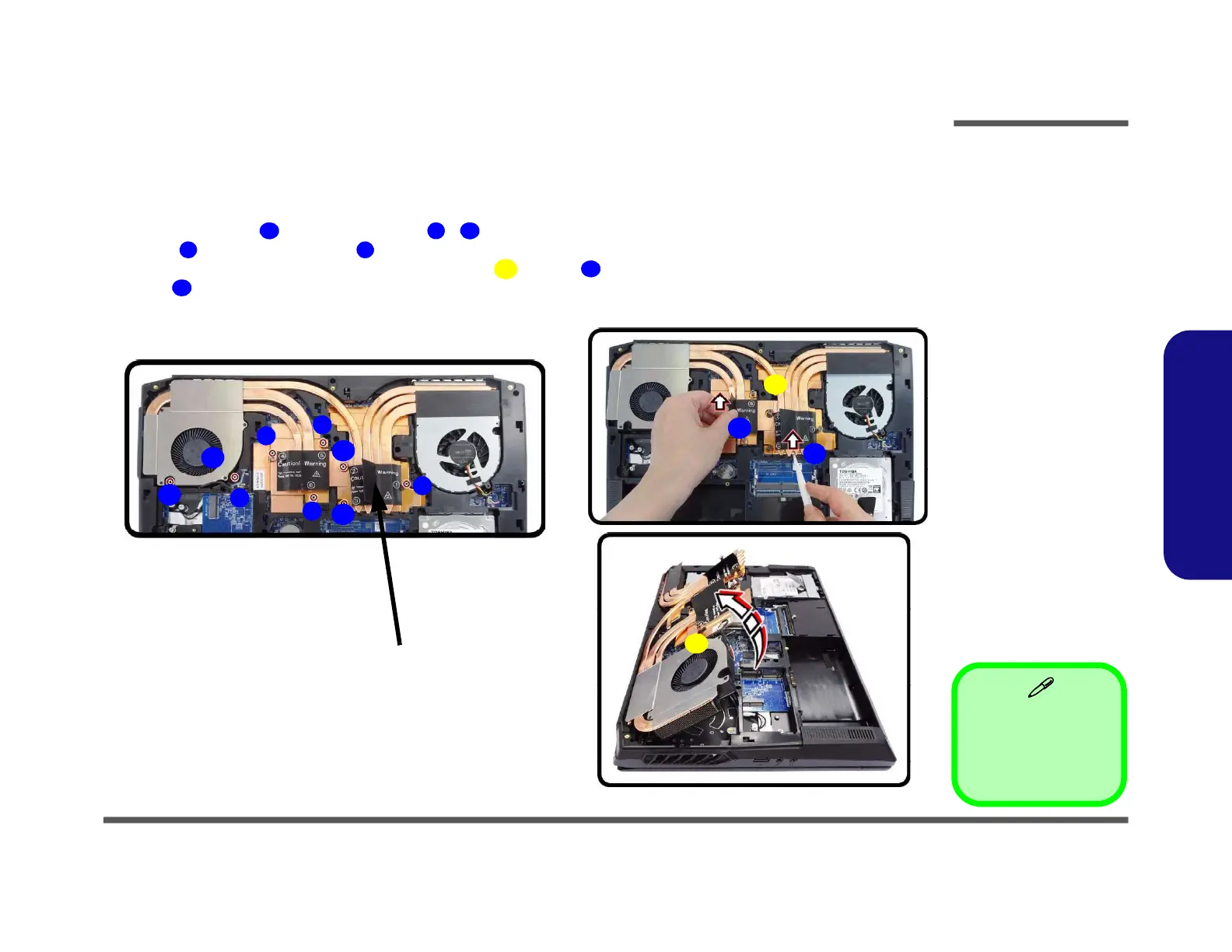

Figure 5
Processor
Removal
Procedure
a. Disconnect the ca-
ble and remove the
screws in the correct
order.
b. Carefully remove
the heat sink unit.
9. Heat Sink Unit
• 8 Screws
a. b.
Note:
Loosen the screws
in the reverse order
8-7-6-5-4-3-2-1 as
indicated.
3
4
2
1
A
6
5
9
7
10
11
8
9
To Next Page
