Disassembly
2 - 12 Removing the System Memory (RAM)
2.Disassembly
Removing the System Memory (RAM)
The computer has two memory sockets for 260 pin Small Outline Dual In-line Memory Modules (SO-DIMM) supporting
DDR4 up to 2666/3200 MHz. The main memory can be expanded up to 64GB. The total memory size is automatically
detected by the POST routine once you turn on your computer.
Memory Upgrade Process
1. Turn off the computer, turn it over, remove the battery (page 2 - 5) and bottom cover (page 2 - 6).
2. The RAM modules will be visible at point on the mainboard (Figure 8a
)
.
3. Gently pull the two release latches ( & ) on the sides of the memory socket in the direction indicated by the
arrows (Figure 8b). The RAM module will pop-up
(
Figure 8c
)
, and you can then remove it
.
4. Pull the latches to release the second module if necessary.
5. Insert a new module (for only one module - insert module in the top slot) by holding it at about a 30° angle and fit
the connectors firmly into the memory slot.
6. The module will only fit one way as defined by its pin alignment. Make sure the module is seated as far into the slot
as it will go. DO NOT FORCE IT; it should fit without much pressure.
7. Press the module in and down towards the mainboard until the slot levers click into place to secure the module.
8. Replace the bottom cover and the screws
(see
page 2 - 6
)
.
9. Restart the computer to allow the BIOS to register the new memory configuration as it starts up.
1
2 3
4
b.
c.
2
3
1
a.
4
4. RAM Module

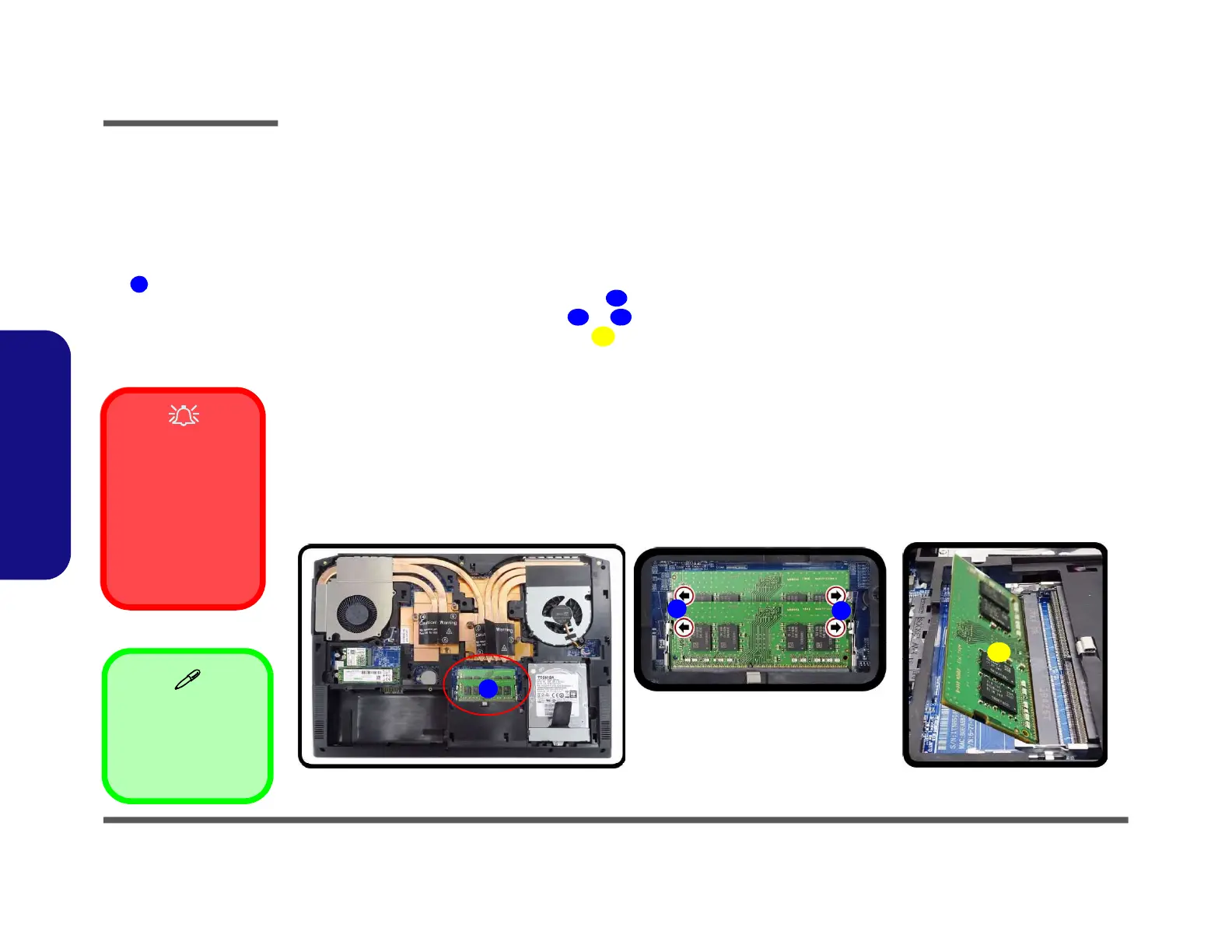

Figure 8
RAM Module
Removal
a. The RAM module(s)
will be visible at point
on the main-
board.
b. Pull the release lat-
ches.
c. Remove the module.
Contact Warning
Be careful not to touch
the metal pins on the
module’s connecting
edge. Even the clean-
est hands have oils
which can attract parti-
cles, and degrade the
module’s performance.
1
