Disassembly
Removing and Installing the Processor 2 - 11
2.Disassembly
Processor Installation Procedure
1. Insert the CPU ; pay careful attention to the pin alignment (Figure 7a), it will fit only one way (DO NOT FORCE
IT!).
2. Move the latch fully in the direction indicated to lock the CPU.
3. Apply the whole tube of the thermal grease to the center of the CPU as shown (Figure 7b).
4. Insert the heat sink unit in an angle as indicated in Figure 7c.
5. Tighten the CPU heat sink screws in the order - (the order as indicated on the label) and reconnect the cable
(Figure 7d).
6. Replace the video card heat sink, component bay cover and tighten the screws (page 2 - 9).
A
B
C
D
1 8
9
b.
c. d.
a.
D
A
B
c
Note:
Tighten the screws in the order
1-2-3-4-5-6-7-8 as indicated.
4
2
3
1
9
5
6
7
8
B

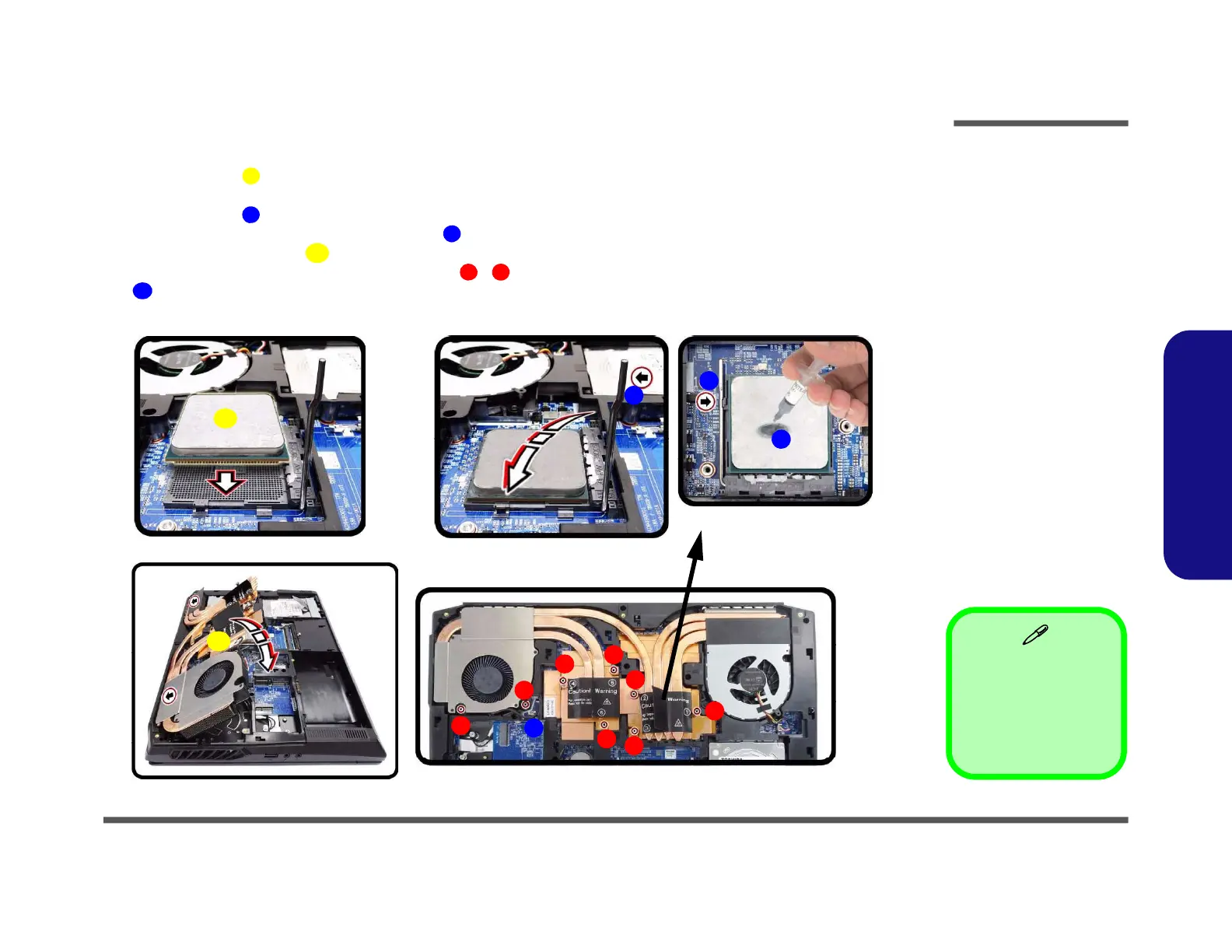

Figure 7
Processor
Installation
a. Insert the CPU.
b. Move the latch fully in
the direction indicated to
thermal grease.
c. Insert the heat sink.
d. Tighten the screws.
A. CPU
D. Heat Sink
• 8 Screws
