Clevo NH58AF1 - Removing the Wireless LAN Module

Disassembly
Removing the Wireless LAN Module 2 - 15
2.Disassembly
Removing the Wireless LAN Module
1. Turn off the computer, turn it over, remove the battery (page 2 - 5), bottom cover (page 2 - 6) and SSD-2 (page 2
- 14).

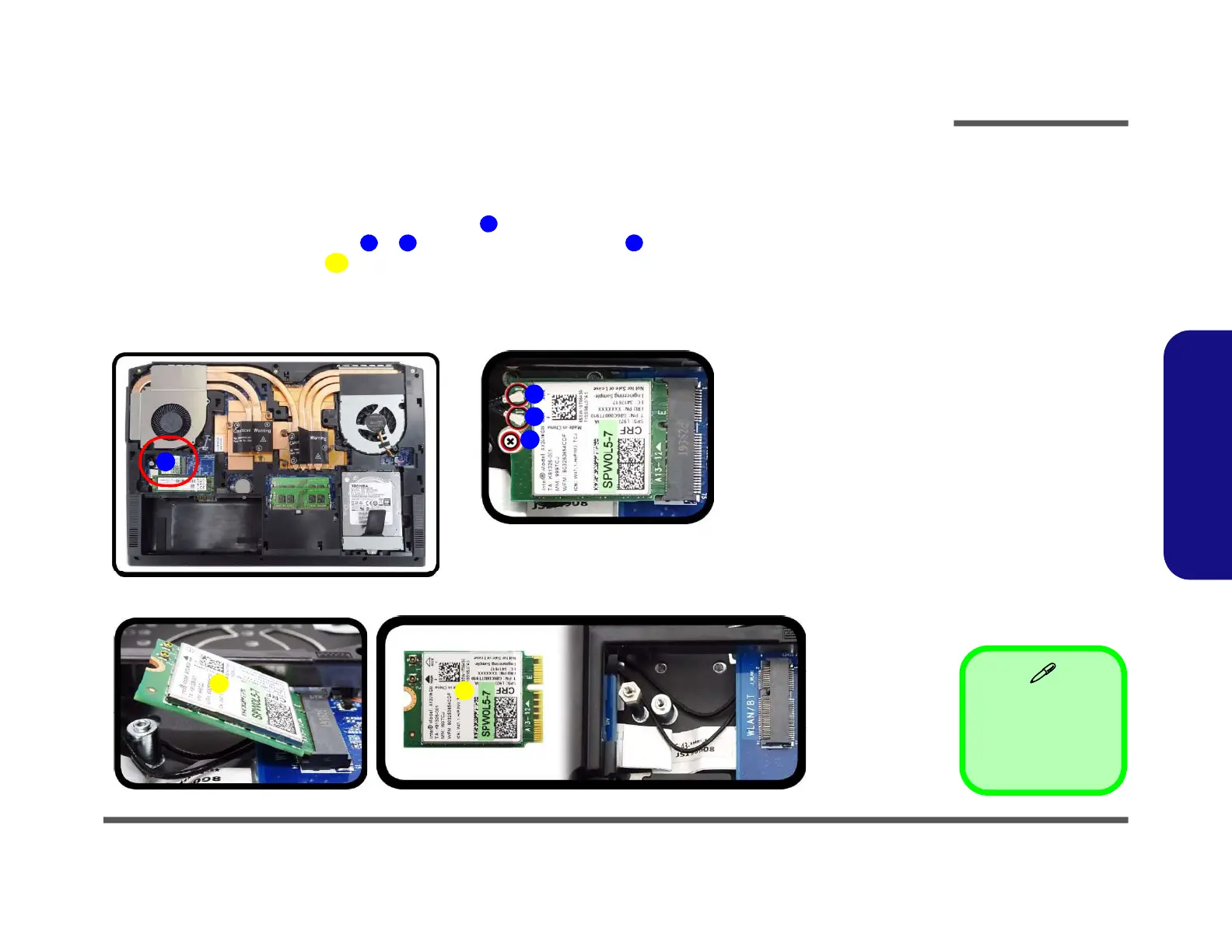

2. The Wireless LAN module will be visible at point on the mainboard (Figure 11a).
3. Carefully disconnect the cables & , and then remove the screw (Figure 11b)
4. The Wireless LAN module (Figure 11c) will pop-up, and you can remove it from the computer.
5. Reverse the process to install a new module (do not forget to replace the mylar and screws while making sure that
the cables are properly inserted as shown in Figure 11c).
1
2 3 4
5
b.
c.
a.
5
1
5
2
3
4
5.Wireless LAN Module
• 1 Screw
Figure 11
Wireless LAN
Module Removal
a. Locate the WLAN.
b. Disconnect the cables
and remove the screw.
c. The WLAN module will
pop up.
Note: Make sure you
reconnect the antenna
cable to the “1 + 2”
socket (Figure 11b).
