Mainboard Overview - Bottom (Connectors)

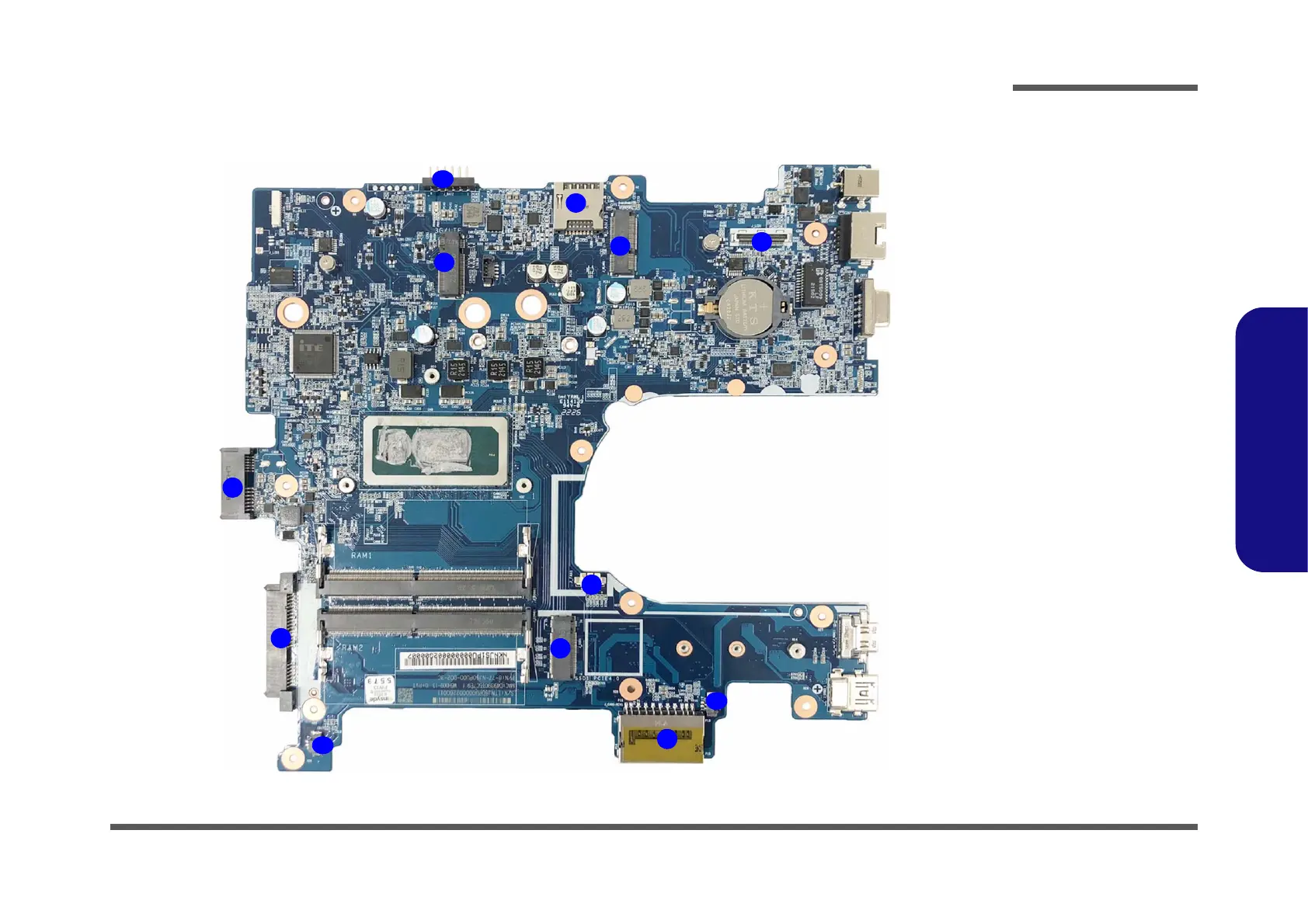

Figure 10
Mainboard Bottom
Connectors
1. ODD Connector
2. HDD Connector
3. Multi-in-1 Card
Reader
4. M.2 Card
Connector
5. Fan Connector
6. LCD Cable
Connector
7. WLAN Connector
8. LTE Connector
9. SIM Card Reader
10. Battery Connector
11. Speaker Connector
10
1
2
4
6
7
3
5
8
9
11
11
