Clevo NP50HP - Removing the Wireless LAN Module

Disassembly
Removing the Wireless LAN Module 2 - 11
2.Disassembly
Removing the Wireless LAN Module
1. Turn off the computer, turn it over, remove the battery (page 2 - 5).
2. The Wireless LAN module will be visible at point on the mainboard (Figure 5a).
3. Carefully disconnect the cables & , and then remove the screw
(Figure 5b)
4. The Wireless LAN module (Figure 5c) will pop-up, and you can remove it from the computer.
1
2
3
4
5
b.
c.
a.
5
1
5
2
3
4

5.Wireless LAN Module
•1 Screw
Figure 5

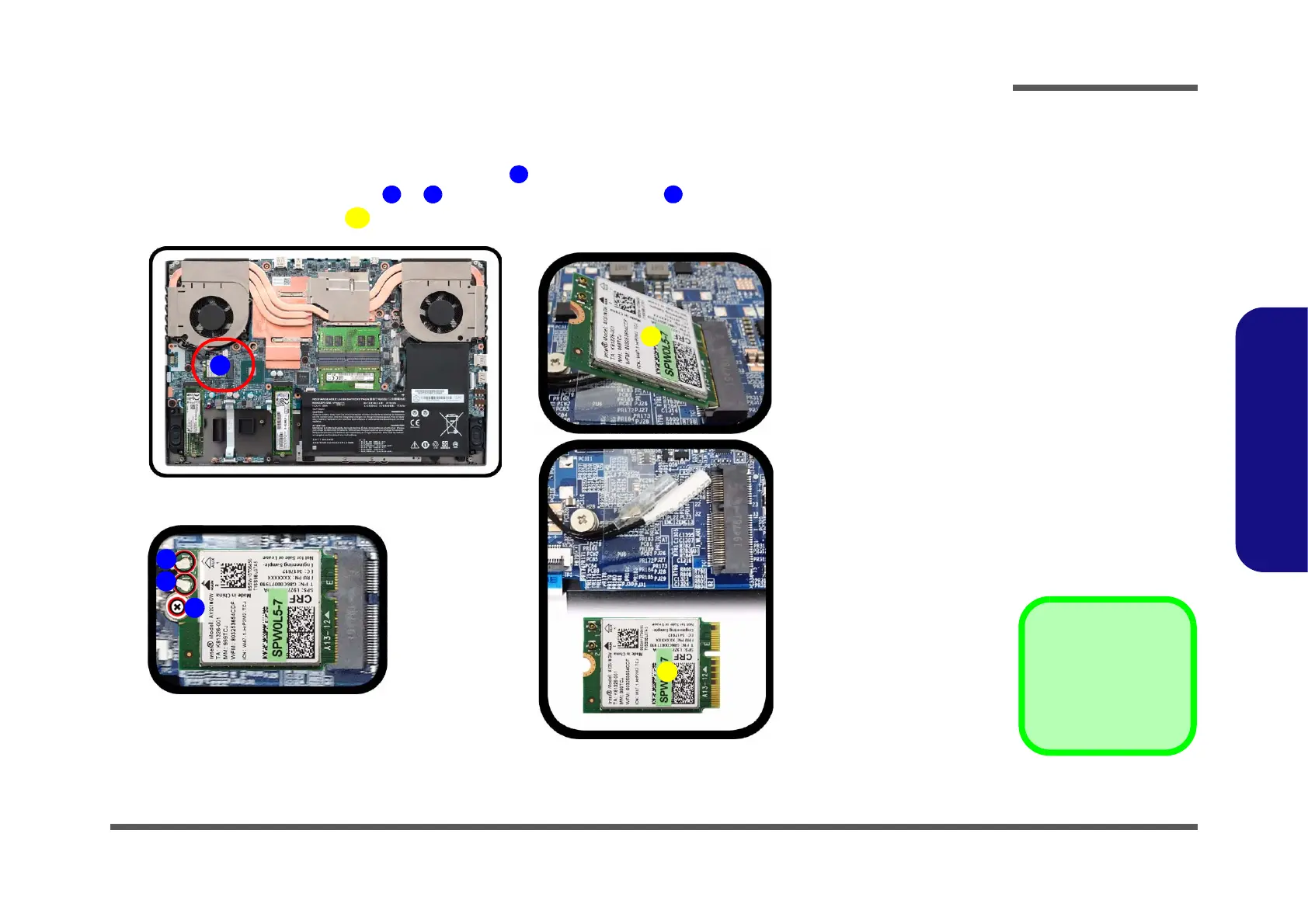

Wireless LAN
Module Removal
a. Locate the WLAN.
b. Disconnect the cables
and remove the screw.
c. The WLAN module will
pop up.
Note: Make sure you
reconnect the antenna
cable to the “1 + 2”
socket (Figure 5b).
